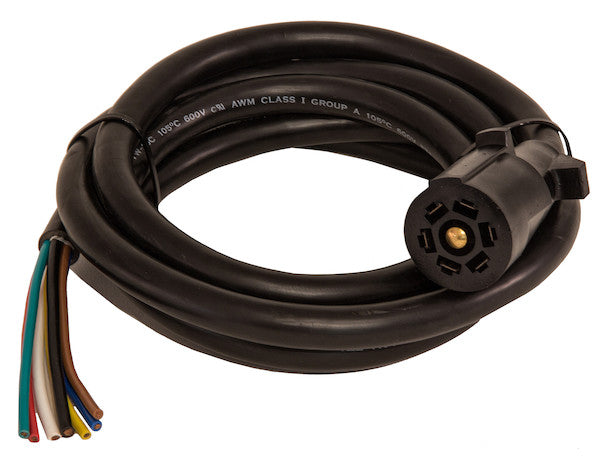

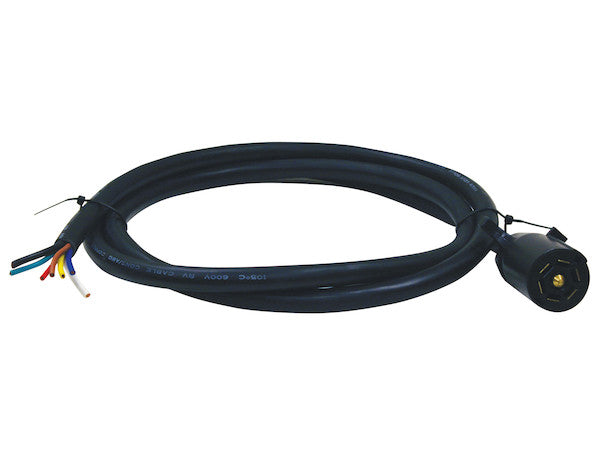

The 7-Way Flat Pin Trailer Connector with 96 in. Cable from Buyers Products features a generous length of prewired, color-coded cable for your trailer. You can wire it quickly and easily for the trailer electric functions you need. The cable includes a weather-resistant, plastic 7-way flat-pin connector for truck or trailer-side use.
Specifications
| End Way (Number of Pins) | 7 |
|---|---|
| Pin Style | RV Flat |
| Start Way (Number of Pins) | 7 |
| Truck Side/Trailer Side | Trailer Side |
The 7-Way Trailer Side Flat Pin Trailer Connector represents a critical component in the intricate electrical architecture that facilitates safe and compliant towing operations. This product is engineered to provide a robust, reliable, and standardized interface between the towing vehicle and the towed trailer, ensuring the seamless transmission of power and signal for essential trailer functions. Designed specifically for trailer-side integration, this connector system adheres to the widely recognized RV Flat Pin configuration, a standard renowned for its reliability and widespread adoption across North America for light to medium-duty towing applications. The inclusion of a prewired 96-inch cable significantly streamlines the installation process, offering a practical solution for a diverse range of trailer types and sizes.
At the core of this product's utility is its 7-way electrical connectivity, which allows for comprehensive control over various trailer functions. Unlike simpler 4-way or 5-way connectors that primarily manage basic lighting, a 7-way system provides dedicated channels for critical safety and auxiliary systems. The flat pin design, as opposed to blade or round pins, offers distinct advantages. These larger, flatter contact surfaces provide superior electrical conductivity, minimizing resistance and heat generation, which is crucial for high-current applications such as electric trailer brakes or auxiliary power charging. Furthermore, the increased surface area contributes to a more secure and stable connection, reducing the likelihood of dislodgement due to road vibrations or environmental factors. The mechanical robustness of the flat pins also makes them less susceptible to bending or damage during coupling and uncoupling processes, enhancing the connector's overall longevity.
The specific allocation of each of the seven pins is standardized to ensure interoperability across different vehicle and trailer manufacturers. Typically, the pin assignments for an RV flat 7-way connector are as follows:
- White Wire (Ground): This is the foundational circuit, essential for completing all electrical paths. A robust ground connection is paramount for the proper functioning of all trailer electrical systems, preventing issues like flickering lights or unreliable brake performance.
- Brown Wire (Tail/Running Lights): Supplies power to the trailer's tail lights, marker lights, and license plate lights, activating them in conjunction with the tow vehicle's running lights.
- Yellow Wire (Left Turn/Brake Signal): Transmits the signal for the left-hand turn indicator and also illuminates the left brake light when the tow vehicle's brakes are applied.
- Green Wire (Right Turn/Brake Signal): Serves an analogous function for the right-hand turn indicator and right brake light.
- Blue Wire (Electric Brakes): Dedicated solely to activating the trailer's electric braking system. This wire carries the modulated voltage from the tow vehicle's brake controller to the trailer's brake magnets, controlling the braking force.
- Black Wire (12V Auxiliary/Battery Charge Line): Provides a constant 12-volt power supply from the tow vehicle to the trailer. This circuit is invaluable for charging a trailer's onboard battery, powering auxiliary accessories such as interior lights, refrigerators, or hydraulic pumps, or maintaining power to breakaway systems.
- Red Wire (Reverse Lights/Auxiliary): Commonly used for the trailer's reverse lights, illuminating the area behind the trailer when the tow vehicle is in reverse. In some configurations, this pin may be repurposed for other auxiliary functions depending on specific trailer requirements.
The connector housing itself is constructed from high-quality, weather-resistant plastic. This material selection is not arbitrary; it is chosen for its superior dielectric properties, excellent resistance to impact, and its ability to withstand a wide range of environmental stressors. The plastic compound is typically formulated to be UV-stabilized, preventing degradation and embrittlement when exposed to prolonged sunlight, which is a common challenge for exterior vehicle components. Its inherent resistance to common automotive fluids, such as oils, greases, and road salts, further contributes to its longevity. The design incorporates features aimed at enhancing its weather resistance, such as tight-fitting components and potentially internal gaskets or seals, to prevent the ingress of moisture, dust, and corrosive contaminants into the electrical contacts. This protective enclosure is vital for maintaining the integrity of the electrical connections and preventing short circuits or corrosion that could lead to intermittent performance or complete system failure.
A distinctive advantage of this product is the prewired 96-inch cable. This generous length, equivalent to 8 feet, provides considerable flexibility for trailer manufacturers and installers. It accommodates a wide array of trailer frame configurations, tongue lengths, and routing requirements, minimizing the need for additional cable splicing or extensions. The prewiring signifies that the individual conductors within the cable are already terminated to the respective pins of the 7-way connector and are accurately color-coded according to industry standards. This feature drastically reduces installation time and complexity. Installers no longer need to individually identify, strip, and terminate each wire, a process that can be prone to human error and consume significant labor hours. The color-coding acts as a universal language, ensuring that even technicians unfamiliar with a specific trailer's internal wiring diagram can correctly identify and connect circuits based on the standardized color scheme, enhancing safety and reducing diagnostic time.
The construction of the cable itself is engineered for demanding towing environments. Each individual conductor within the bundle is likely multi-stranded copper, offering excellent electrical conductivity and flexibility. The individual insulation around each wire is designed to withstand abrasion, heat, and chemical exposure. The gauges (AWG) of the conductors are carefully selected to match the current requirements of each circuit. For instance, the ground wire and the 12V auxiliary power wire (Black and White) typically feature a heavier gauge (e.g., 10 or 12 AWG) to handle higher current loads for battery charging or powering robust accessories without excessive voltage drop or overheating. Signal wires for lights and turn signals may use a slightly lighter gauge (e.g., 14 or 16 AWG) as their current demands are lower. The entire bundle of seven conductors is then encased in a robust outer jacket, often made from flexible PVC (Polyvinyl Chloride) or TPE (Thermoplastic Elastomer). This outer jacket provides crucial mechanical protection against cuts, abrasions, crushing, and environmental degradation, maintaining the integrity of the internal wiring system throughout its operational life.
Installation of the trailer-side connector typically involves routing the 96-inch cable along the trailer's tongue and frame, securing it with appropriate clamps or ties to prevent chafing or snagging. The free end of the cable is then connected to the trailer's internal wiring harness, matching the color-coded wires to their corresponding circuits. This process often involves stripping the outer jacket and individual wire insulation, followed by crimping or soldering the connections. Utilizing waterproof heat-shrink tubing or dielectric grease at these splices is highly recommended to protect against moisture and corrosion, particularly in exposed areas. Proper strain relief at the point where the cable exits the connector housing and at any points where it changes direction is also critical to prevent stress on the conductors and connections over time. The 96-inch length provides ample slack for making service loops, which are important for accommodating articulation between the tow vehicle and trailer, especially during tight turns, and for facilitating future maintenance without having to stretch the cable.
The application scope of this 7-Way Flat Pin Trailer Connector is extensive. It is the go-to standard for a vast range of trailers that require more than basic lighting functions. This includes recreational vehicles (RVs) such as travel trailers, fifth-wheel trailers, and pop-up campers, which often rely on auxiliary power for interior lights, appliances, and onboard batteries. Utility trailers, especially those equipped with electric brakes, hydraulic dumps, or built-in winches, benefit immensely from the dedicated power lines. Boat trailers often utilize the reverse light circuit for surge brake lockout or to assist with launching and retrieving. Enclosed cargo trailers, car haulers, and horse trailers frequently integrate electric brakes for enhanced stopping power, a critical safety feature for heavier loads, all managed through this 7-way connection. The robust design and comprehensive electrical pathways ensure that critical functions like braking, signaling, and auxiliary power are consistently available and reliable, directly impacting road safety.
Durability and reliability are paramount for trailer connectors, given their exposure to harsh operating conditions. This product is engineered to excel in these areas. Its weather-resistant properties extend beyond mere plastic housing; it encompasses the internal contacts, which are typically made from highly conductive and corrosion-resistant alloys, often brass or copper, with additional tin plating for enhanced oxidation resistance. The design aims to create a sealed environment for these contacts, protecting them from road spray, rain, snow, and corrosive agents like road salt. The mechanical integrity of the connection is also critical. The flat pin design inherently provides a large contact area, which, combined with appropriate spring tension or retention features within the socket, ensures a firm, stable connection that resists vibration-induced dislodgement or intermittent contact. This resilience is vital for maintaining consistent electrical flow, particularly for critical systems like trailer brakes, where even a momentary loss of connection could have severe safety implications.
Operating across a broad spectrum of ambient temperatures, from freezing winter conditions to scorching summer heat, the materials used in both the connector and the cable are selected for their thermal stability. The plastic housing maintains its structural integrity without becoming brittle in the cold or deforming in the heat. The cable's insulation and outer jacket remain flexible across temperature extremes, preventing cracking or stiffening that could lead to premature failure. The overall construction is designed to minimize maintenance, offering a "fit-and-forget" solution. However, periodic inspection for dirt, debris, or signs of wear in the connection area is always recommended, particularly in high-use or extremely harsh environments, to ensure optimal performance and longevity.
Compliance with industry standards is a fundamental aspect of this product's design. The 7-way RV flat pin configuration is standardized under specifications such as those outlined by the Society of Automotive Engineers (SAE), ensuring that this trailer-side connector will mate correctly and function reliably with any truck-side connector adhering to the same standard. This adherence to industry best practices guarantees interoperability, a crucial factor in the fragmented landscape of towing equipment. For instance, the specified current ratings for each pin, the conductor gauges, and the color-coding schemes are all typically guided by SAE recommendations (e.g., SAE J2863 for 7-way RV type connectors). Such compliance not only simplifies installation and troubleshooting but also ensures that the electrical system meets critical safety criteria, supporting safe towing operations.
In conclusion, the 7-Way Trailer Side Flat Pin Trailer Connector with its integrated 96-inch cable from Buyers Products represents an expertly engineered solution for sophisticated trailer electrical needs. Its technical advantages stem from the robust 7-way flat pin design, providing superior electrical contact and mechanical durability. The prewired, color-coded cable dramatically simplifies installation, ensuring consistency and reducing labor costs. Its construction utilizes weather-resistant plastics and high-quality conductors, designed to withstand the rigors of continuous outdoor exposure and challenging operational environments. By facilitating reliable power and signal transmission for essential functions such as lighting, braking, and auxiliary power, this connector plays a pivotal role in enhancing towing safety, compliance, and overall operational efficiency. It offers a dependable, long-term solution for trailers requiring comprehensive electrical integration with their towing vehicles, providing peace of mind and consistent performance on the road.
