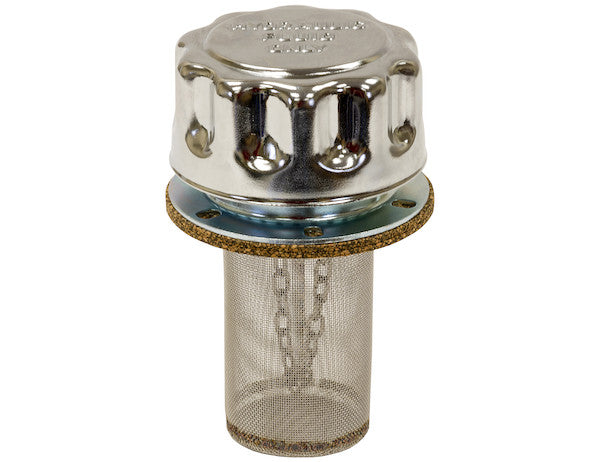

The Chrome Filler-Strainer Breather Cap Assembly from Buyers Products keeps contaminants out as you fill your oil reservoir, while acting as a fresh air ventilator to allow the tank to "breathe." It prevents a vacuum from building up in the tank. It contains a quarter-turn filler/breather cap that will filter out contaminants as small as 40 microns. You can order it with a locking tab and a 30 mesh/500 micron strainer basket. All mounting hardware is included. "Hydraulic Fluid Only" is stamped on the cap to prevent damage caused by using the wrong fluid.
Specifications
| Cap Type | Twist-On |
|---|---|
| Material | Carbon Steel |
| Thread Size | - |
In the demanding world of hydraulic systems, maintaining optimal fluid integrity and operational efficiency is paramount. Every component, no matter how seemingly minor, plays a critical role in the overall health and longevity of the machinery. The Chrome Filler-Strainer Breather Cap Assembly with Locking Tab stands as a testament to this principle, engineered to provide comprehensive protection and functionality for hydraulic reservoirs. This sophisticated assembly is far more than a simple cap; it is a multi-faceted solution designed to manage fluid ingress, air exchange, and system security with precision.
Comprehensive Fluid Management and System Protection
At the core of any hydraulic system's performance and reliability lies the quality and cleanliness of its working fluid. Contamination, whether particulate or airborne, is the leading cause of hydraulic component wear, premature failure, and system downtime. The Chrome Filler-Strainer Breather Cap Assembly addresses these critical concerns by integrating three essential functions: fluid filling, contaminant straining during filling, and continuous air ventilation. This integrated approach ensures that the hydraulic fluid remains clean from the point of entry and that the reservoir operates under optimal pressure conditions.
The Filler Function: Controlled Fluid Introduction
The primary role of the filler mechanism is to facilitate the safe and clean introduction of hydraulic fluid into the reservoir. The assembly features a quarter-turn filler/breather cap, a design choice that offers significant operational advantages. The quarter-turn mechanism provides a rapid and secure seal, minimizing the time the reservoir is open to the environment during fluid replenishment, thereby reducing the window for ambient contaminant ingress. This quick-access design does not compromise on security, ensuring a tight seal that prevents leakage and maintains system integrity during operation. Furthermore, the cap is clearly stamped with "Hydraulic Fluid Only." This seemingly simple inscription is a crucial safety and preventative measure, serving as an unambiguous directive to prevent the introduction of incompatible or incorrect fluids. The use of the wrong fluid can lead to catastrophic system damage, including seal degradation, pump cavitation, and chemical breakdown of internal components. This visual cue mitigates human error, safeguarding the hydraulic system from preventable failures.
Integrated Strainer System: Dual-Stage Contaminant Removal
Contamination control begins long before the fluid enters the operational circulatory system of the hydraulics. The Filler-Strainer Breather Cap Assembly incorporates a sophisticated, dual-stage filtration system to capture particulate matter during the filling process. The first stage of filtration is integrated directly into the cap, capable of filtering out contaminants as small as 40 microns. To put this into perspective, the human eye can typically only perceive particles larger than 40 microns under ideal conditions. Many critical clearances within hydraulic components, such as between a pump's piston and cylinder bore or a valve's spool and housing, are often less than 10-20 microns. Therefore, filtering particles at the 40-micron level significantly reduces the introduction of abrasive contaminants that can cause surface wear, increase internal leakage, and accelerate component degradation. The second stage of filtration is provided by a 30 mesh/500 micron strainer basket. This robust basket serves as a coarse filter, trapping larger debris such as metal shavings, gasket fragments, or packaging material that might inadvertently enter the fluid container or transfer equipment. The 30 mesh rating corresponds to approximately 500 microns, meaning particles larger than this size are prevented from entering the reservoir. The synergistic operation of these two filtration stages ensures that the initial fluid charge, or subsequent top-offs, are as clean as possible, laying the foundation for a healthy hydraulic system and extending the service life of filters downstream within the hydraulic circuit.
The Breather Function: Dynamic Air Exchange and Pressure Management
Hydraulic reservoirs are not sealed static environments; they are dynamic vessels that "breathe" in response to fluid level changes and temperature fluctuations. As hydraulic cylinders extend and retract, or as fluid expands and contracts with temperature, the volume of fluid in the reservoir changes, necessitating air ingress or egress. Without a properly functioning breather, two critical issues can arise: vacuum formation and excessive pressure buildup.
- Vacuum Prevention: As fluid is drawn out of the reservoir into the system, if air cannot enter freely to equalize the pressure, a vacuum can form. This negative pressure can lead to several detrimental effects, including pump cavitation, which occurs when localized pressure drops below the vapor pressure of the fluid, causing vapor bubbles to form and then violently collapse. Cavitation is a major cause of pump damage, reduced efficiency, and excessive noise. Furthermore, a vacuum can pull air past seals, introducing additional contaminants and accelerating seal degradation.
- Pressure Equalization: Conversely, as fluid returns to the reservoir or expands due to temperature increases, air needs to exit. Without adequate ventilation, excessive positive pressure can build up. This can stress reservoir walls, distort seals, and potentially lead to fluid leakage. The breather cap assembly ensures that the internal pressure of the reservoir remains in equilibrium with the ambient atmospheric pressure, preventing both vacuum and overpressure conditions.
- Air Filtration: Beyond pressure management, the breather element actively filters the incoming ambient air. The same 40-micron filtration capability that protects against particulate ingress during filling also applies to the air filtration aspect. This is crucial because ambient air is laden with dust, pollen, moisture, and industrial particulates, all of which can contaminate hydraulic fluid if allowed to enter unfiltered. Airborne contaminants can introduce abrasive particles, accelerate oxidation, and degrade fluid properties. By filtering incoming air, the assembly ensures that only clean air enters the reservoir, safeguarding the fluid from external environmental threats. This continuous supply of clean air also aids in dissipating heat and minimizing moisture accumulation within the reservoir, further contributing to fluid longevity.
Locking Tab Feature: Enhanced Security and Retention

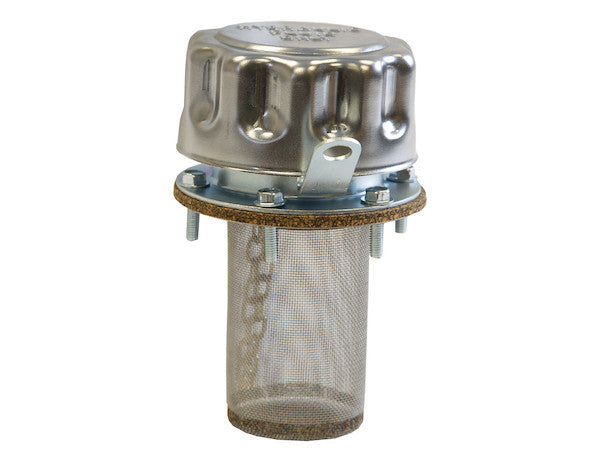

The inclusion of a locking tab elevates the security and operational integrity of the Filler-Strainer Breather Cap Assembly. In demanding industrial or mobile hydraulic applications, equipment is often subjected to significant vibration, shock, and dynamic movements. A standard twist-on cap, while secure, could potentially loosen over time in such conditions. The locking tab provides an additional layer of retention, mechanically securing the cap in its closed position. This prevents accidental dislodgement, tampering, or unintended opening, which could lead to fluid spills, rapid contamination ingress, or even personnel injury. For equipment operating in harsh environments, on uneven terrain, or subject to stringent safety regulations, the locking tab ensures that the reservoir remains sealed and protected, contributing to uninterrupted operation and reduced risk of environmental contamination.
Superior Material Construction and Durability
The Chrome Filler-Strainer Breather Cap Assembly is constructed from carbon steel, a material renowned for its strength, rigidity, and cost-effectiveness in industrial applications. Carbon steel provides the necessary structural integrity to withstand the operational stresses and environmental exposures typical of hydraulic systems. To enhance its performance and aesthetic appeal, the carbon steel is finished with a chrome plating. Chrome plating offers several significant advantages:
- Corrosion Resistance: Chrome provides an excellent barrier against rust and corrosion, protecting the underlying carbon steel from moisture, chemicals, and environmental aggressors. This is particularly important for components exposed to outdoor elements or corrosive industrial atmospheres.
- Wear Resistance: The hard surface of chrome plating enhances the cap's resistance to abrasion and wear, ensuring its durability and functional integrity over extended periods of use, even with frequent handling.
- Professional Aesthetics: The polished chrome finish provides a clean, professional appearance, contributing to the overall aesthetic quality of the equipment on which it is installed. This is often a desirable feature for manufacturers aiming for a high-quality product presentation.
- Ease of Cleaning: The smooth, non-porous surface of chrome plating is easy to clean, allowing for quick removal of dirt, grease, and grime, which is essential for maintaining cleanliness around the hydraulic reservoir and preventing secondary contamination risks.
The combination of robust carbon steel and protective chrome plating ensures that the assembly delivers long-term reliability and maintains its functional and aesthetic properties even in challenging operating conditions. The materials chosen are also compatible with a wide range of hydraulic fluids, preventing adverse chemical reactions that could degrade the fluid or the component itself.
Seamless Installation and Broad Application
Recognizing the importance of ease of integration, the Chrome Filler-Strainer Breather Cap Assembly is supplied with all necessary mounting hardware. This "ready-to-install" approach simplifies procurement and installation processes, reducing the need for sourcing additional components and minimizing installation time. The "Twist-On" cap type specification indicates a design optimized for user convenience and secure attachment, likely interfacing with a standard reservoir neck or flange. This universal design makes it suitable for a wide array of hydraulic systems.
The versatility and robust design of this assembly make it ideal for a diverse range of applications and industries:
- Mobile Hydraulics: Essential for construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), utility vehicles, and municipal service trucks, where systems are exposed to dirt, dust, and varying environmental conditions.
- Industrial Hydraulics: Crucial for stationary machinery such as presses, injection molding machines, manufacturing automation systems, and material handling equipment, ensuring continuous operation and protecting costly components.
- Marine Applications: Suitable for hydraulic systems on boats and ships, where corrosion resistance and protection from saltwater and humidity are critical.
- Transportation: Used in commercial trucking, bus fleets, and specialized transport vehicles where hydraulic systems power functions like braking, steering, and lifting.
Across these sectors, the assembly's ability to prevent contamination, manage air exchange, and secure the reservoir directly translates into tangible operational benefits.
Operational Advantages and System Efficiency
Implementing the Chrome Filler-Strainer Breather Cap Assembly provides a multitude of operational advantages that contribute significantly to the overall efficiency, reliability, and longevity of hydraulic systems:
- Extended Fluid Life: By effectively filtering ingressing fluid and air, the assembly drastically reduces the rate of fluid degradation due to contamination and aeration, extending the hydraulic fluid's useful life and reducing the frequency of costly fluid changes.
- Reduced Component Wear: Protecting the fluid from abrasive particles and preventing cavitation significantly reduces wear on pumps, valves, cylinders, and other critical hydraulic components, thereby extending their service life and delaying expensive replacements.
- Improved System Performance: A clean, properly aerated hydraulic fluid ensures stable system operation, preventing erratic movements, noise, and power losses associated with contaminated or aerated fluid.
- Lower Maintenance Costs: The combined benefits of extended fluid and component life directly translate into reduced maintenance demands, fewer unscheduled downtimes, and lower overall operating costs.
- Enhanced Safety: The "Hydraulic Fluid Only" stamping prevents dangerous fluid mix-ups, while the locking tab and secure sealing prevent leaks and spills, contributing to a safer working environment and reducing environmental impact.
- Compliance and Standards: Consistent fluid cleanliness and system integrity help in meeting stringent industry standards and environmental regulations, demonstrating a commitment to best practices in hydraulic system management.
Conclusion
The Chrome Filler-Strainer Breather Cap Assembly with Locking Tab is an indispensable component for any hydraulic system prioritizing long-term reliability, efficiency, and safety. Its meticulously engineered design integrates essential functions – contaminant-free fluid filling, multi-stage filtration, precise air exchange, and robust security – into a single, durable unit. Constructed from chrome-plated carbon steel and featuring a critical "Hydraulic Fluid Only" stamp, this assembly represents a proactive investment in preventing the most common causes of hydraulic system failure: fluid contamination and improper ventilation. By ensuring that only clean fluid and air enter the reservoir, and that internal pressures are balanced, this assembly safeguards critical components, extends fluid life, minimizes maintenance, and ultimately enhances the overall performance and longevity of hydraulic machinery across diverse industrial and mobile applications. It is not merely an accessory, but a foundational element for maintaining optimal hydraulic system health.
