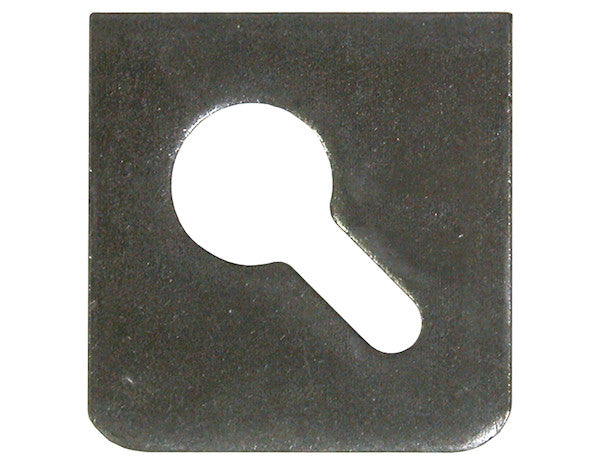

Buyers Products Banjo Eye welds to dump tailgates and other load securing applications to provide a latching point for a chain. Offered in low carbon stamped steel or stainless steel, banjo eye is available for a 5/16 in. or 3/8 in. chains.
Specifications
| Chain Size (in.) | 5/16 |
|---|---|
| Finish | Plain |
| Height (in.) | 3-1/2 |
| Material | Carbon Steel |
| Thickness (in.) | 1/4 |
| Use With | 5/16 Chain |
| Width (in.) | 3-1/2 |
Advanced Technical Overview: Buyers Products Steel Banjo Eye for 5/16 Chain
The Buyers Products Steel Banjo Eye, specifically engineered for 5/16-inch chains and featuring precise dimensions of 5/16 x 3-1/2 x 3-9/16 inches, represents a critical component in the securement of various loads across numerous industrial and commercial applications. This weld-on anchoring solution is meticulously designed to offer a robust and reliable latching point, primarily for dump tailgate mechanisms and other heavy-duty load restraint systems. Its construction from low carbon stamped steel, presented with a plain finish, underscores a commitment to functionality, durability, and cost-effectiveness in demanding operational environments.
Design and Structural Integrity
The nomenclature "Banjo Eye" aptly describes the component's distinctive circular or ovate eyelet, which functions as the primary interface for chain attachment. This specific model is dimensioned to provide an optimal fit and secure engagement for 5/16-inch diameter chains. The internal dimensions of the eye, characterized by a 3-1/2 inch width and 3-1/2 inch height (as per the detailed specifications), ensure sufficient clearance for chain links while minimizing excessive play that could lead to premature wear or ineffective load restraint. The overall physical extent of the component, including its welding base, extends to approximately 3-9/16 inches, signifying a comprehensive design that facilitates secure attachment to the receiving structure.
The material thickness of 1/4 inch is a critical specification, directly correlating with the structural integrity and load-bearing capacity of the banjo eye. This robust gauge of carbon steel ensures that the eyelet can withstand significant dynamic and static forces exerted by secured loads, often under conditions of vibration, sudden stops, or uneven terrain. The stamping manufacturing process for low carbon steel contributes to a consistent material density and uniform mechanical properties throughout the component, which is vital for predictable performance and long-term reliability. This method allows for the efficient production of complex shapes with minimal material waste and high repeatability, critical for components subject to stringent performance requirements.
Material Science: Low Carbon Stamped Steel with Plain Finish
The selection of low carbon stamped steel as the primary material for this banjo eye is a deliberate engineering choice driven by a balance of mechanical properties, manufacturing feasibility, and cost considerations. Low carbon steel, generally containing less than 0.25% carbon by weight, is renowned for its excellent weldability, ductility, and formability. These characteristics are paramount for a component that is designed to be permanently affixed via welding and must withstand plastic deformation without brittle fracture under extreme loads.
Ductility allows the material to absorb energy and deform before failing, providing a safety margin in overload scenarios. Its formability, exploited through the stamping process, enables the creation of the banjo eye's precise geometry, including the smoothly radiused internal surfaces that minimize stress concentrations on the chain links. The inherent toughness of low carbon steel ensures resistance to impact and abrasion, common occurrences in heavy-duty applications like dump truck operations.
The "Plain" finish indicates that the steel is supplied without an additional protective coating, such as galvanization or paint. While this choice simplifies the welding process by eliminating the need to remove a coating, it also means that the component's corrosion resistance is reliant on the inherent properties of the carbon steel itself. In environments where moisture, road salts, or corrosive chemicals are prevalent, the plain finish will necessitate post-installation protective measures, such as painting or regular maintenance, to prevent surface oxidation and ensure long-term structural integrity. For applications where superior corrosion resistance is non-negotiable without additional treatment, stainless steel variants would typically be considered, though often at a higher material and fabrication cost. The plain finish, however, allows for maximal flexibility in end-user customization of protective coatings to match specific environmental exposure profiles or aesthetic preferences.
Applications and Operational Context
The primary application for the Buyers Products Banjo Eye is in the fabrication and repair of dump tailgates and other load securing mechanisms. In dump truck operations, tailgates are subject to immense stresses during loading, transport, and unloading cycles. Chains are frequently employed to secure the tailgate in various positions—fully closed, partially open for controlled spreading of materials, or as a safety retention measure. The banjo eye provides an indispensable, permanently welded attachment point for these chains, ensuring a robust and reliable connection.
Beyond dump tailgates, the versatility of this component extends to a wide array of load securing applications across numerous sectors:
- Construction Equipment: Attachment points on flatbed trailers, equipment hauling vehicles, and utility trucks for securing machinery, tools, and materials.
- Agricultural Machinery: Securing implements on farm trailers, providing latching points on gates, and general utility on agricultural vehicles.
- Commercial Transportation: Creating custom tie-down points on service bodies, utility trailers, and specialized transport vehicles where standard D-rings or chain hooks are impractical or insufficient.
- Industrial Fabrication: Integration into custom jigs, fixtures, and structural elements that require robust, fixed points for lifting, pulling, or anchoring.
- Marine and Offshore: Though plain carbon steel requires rigorous coating in such environments, these eyes can form part of anchor points on barges, workboats, or dockside equipment where extremely heavy loads are managed.
The critical role of a banjo eye in these applications is to translate tensile forces from the chain into shear and tensile forces on the welded joint and the underlying structure. The design of the eye, particularly its thickness and material properties, is engineered to distribute these stresses efficiently, preventing localized stress concentrations that could lead to material fatigue or catastrophic failure.
Technical Considerations for Installation: Welding Procedures
The efficacy and safety of the Buyers Products Steel Banjo Eye are critically dependent on proper welding procedures. Given its low carbon steel composition, it exhibits excellent weldability with common arc welding processes such as Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW/MIG), and Flux-Cored Arc Welding (FCAW). However, adherence to established welding standards and best practices is paramount.
Surface Preparation: Before welding, both the banjo eye and the receiving structure (e.g., dump tailgate frame) must be thoroughly cleaned. This involves removing all contaminants such as grease, oil, rust, paint, and mill scale. A clean surface ensures proper fusion and prevents weld defects like porosity or lack of penetration, which compromise joint strength. Grinding or wire brushing is typically employed for this purpose.
Welding Process Selection:
- GMAW (MIG): Often preferred for its speed, ease of use, and ability to produce clean welds with good penetration. Appropriate shielding gas (e.g., 75% Argon/25% CO2) and wire selection (e.g., ER70S-6) are essential.
- SMAW (Stick): Highly versatile for outdoor or less-than-ideal conditions. E7018 electrodes are commonly recommended for their good mechanical properties, low hydrogen content, and suitability for structural applications.
- FCAW: Offers good penetration and high deposition rates, especially useful in heavier fabrication or outdoor environments where wind might dissipate shielding gas from MIG.
Joint Design and Weld Specifications: A full perimeter fillet weld is generally recommended to maximize the strength and load transfer capability of the joint. The weld size should be appropriate for the thickness of the banjo eye (1/4 inch) and the thickness of the base material. Multiple passes may be required for optimal penetration and bead profile. Welding parameters, including amperage, voltage, and travel speed, must be carefully controlled to achieve a sound, strong weld without overheating the material or causing excessive distortion.
Heat Management: While low carbon steel is forgiving, excessive heat input can lead to distortion or changes in material properties. Proper preheating (if necessary for very thick base materials or cold conditions) and interpass temperature control are important. Slow cooling can mitigate residual stresses.
Post-Weld Inspection: After welding, visual inspection is crucial. Welds should be uniform, free of cracks, undercut, excessive porosity, or other discontinuities. Penetration should be adequate, and the weld toe should blend smoothly into the base metal, avoiding sharp angles that can act as stress concentrators. For critical load-bearing applications, non-destructive testing (NDT) methods like magnetic particle inspection (MPI) or ultrasonic testing (UT) may be employed to ensure weld integrity.
The integrity of the weld directly translates to the load capacity of the Banjo Eye. A poorly executed weld will be the weakest link in the load securing system, regardless of the strength of the eye itself or the chain used.
Performance Characteristics and Durability
The performance of this steel banjo eye is characterized by its high strength-to-weight ratio, resilience, and operational reliability. While specific Working Load Limits (WLL) are not provided for the individual component, its design and material choice imply a capacity to handle significant forces when properly installed and used with appropriately rated chains. The 5/16-inch chain compatibility suggests integration into systems typically rated for moderate to heavy-duty load securement.
Wear Resistance: The stamped carbon steel offers good inherent wear resistance, particularly against the abrasive action of steel chains. However, continuous, high-frequency rubbing in specific points can eventually lead to localized wear. Regular inspection can identify such areas and prompt appropriate action, such as rotating chains or applying protective lubricants if suitable.
Fatigue Resistance: In applications involving repetitive loading and unloading cycles, components can be susceptible to fatigue failure. The ductile nature of low carbon steel and the absence of sharp internal corners in the banjo eye design help distribute stresses, enhancing fatigue life. Proper welding also minimizes stress concentrators in the attachment zone.
Environmental Factors: As a plain finish carbon steel product, its primary vulnerability lies in its susceptibility to corrosion in moist, saline, or chemically active environments. Without a protective coating, rust will form on the surface, which, if left unchecked, can compromise the structural integrity over time. For applications in such environments, applying a durable paint, powder coating, or other protective finish immediately after welding and surface preparation is strongly recommended. This step is crucial for maintaining the product's aesthetic and functional lifespan.
Maintenance and Longevity
To ensure the extended service life and continued safe operation of the Buyers Products Steel Banjo Eye, a proactive maintenance regimen is essential:
- Regular Inspection: Periodically inspect the banjo eye and its welded connection for any signs of damage. This includes looking for cracks, severe deformation, excessive wear (thinning of the material), or evidence of corrosion. The weld joint itself should be checked for cracks or signs of fatigue. Any detected damage should prompt immediate remedial action, which may include repair or replacement.
- Corrosion Protection: For plain finish components, especially those exposed to harsh weather or corrosive agents, applying a high-quality industrial primer and topcoat is vital. These coatings should be reapplied as necessary, particularly if chipping, peeling, or significant abrasion occurs. This proactive approach significantly extends the component's lifespan by preventing the onset and progression of rust.
- Compatibility Check: Always ensure that the chain used with the banjo eye is of the correct size (5/16 inch) and rated for the intended load. Using oversized chains can cause binding or excessive stress, while undersized chains may be prone to premature failure or improper fit within the eye.
- Cleanliness: Keep the eyelet free of debris, dirt, and foreign material that could interfere with chain articulation or accelerate wear.
Conclusion
The Buyers Products Steel Banjo Eye for 5/16-inch chains, with its robust carbon steel construction and precise engineering, serves as an exemplary component for demanding load securement applications. Its design, optimized for weld-on installation, offers a durable and dependable latching point essential for dump tailgates and a myriad of other industrial requirements. The careful selection of low carbon stamped steel provides an optimal balance of strength, ductility, and weldability, crucial for integration into critical structural systems. While the plain finish necessitates consideration for environmental exposure and potential post-installation corrosion protection, this characteristic also offers flexibility for end-users to customize protective treatments. By adhering to proper installation protocols, particularly in welding, and implementing a regime of diligent maintenance, this banjo eye will reliably contribute to the safety and efficiency of load management operations for years to come. It stands as a testament to practical, robust engineering designed to meet the rigorous demands of heavy-duty applications, ensuring that secured loads remain precisely that—secure.
