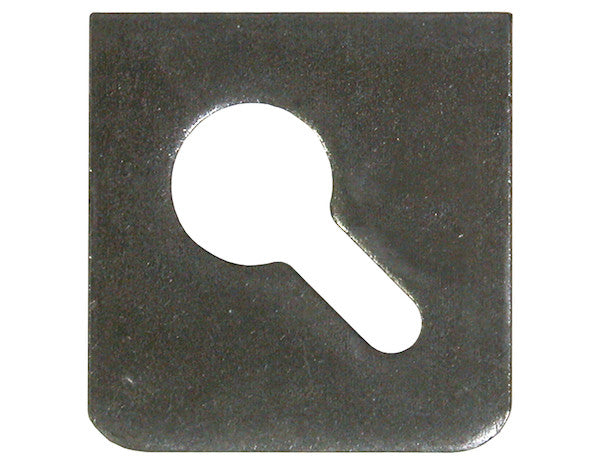

Buyers Products Banjo Eye welds to dump tailgates and other load securing applications to provide a latching point for a chain. Offered in low carbon stamped steel or stainless steel, banjo eye is available for a 5/16 in. or 3/8 in. chains.
Specifications
| Chain Size (in.) | 3/8 |
|---|---|
| Finish | Plain |
| Height (in.) | 3-1/2 |
| Material | Carbon Steel |
| Thickness (in.) | 1/4 |
| Use With | 3/8 Chain |
| Width (in.) | 3-1/2 |
Technical Overview: Buyers Products Steel Banjo Eye for 3/8 Chain
The Buyers Products Steel Banjo Eye, specifically designed for 3/8 inch chains, represents a critical component in robust load securement systems across a diverse range of heavy-duty applications. This meticulously engineered latching point is crafted from durable low carbon stamped steel, optimized for permanent integration via welding onto dump tailgates, truck beds, trailers, and various industrial equipment requiring reliable chain attachment. With precise dimensions of 1/4 inch thickness, 3-1/2 inches in height, and 3-1/2 inches in width, this Banjo Eye is manufactured to exacting standards to ensure structural integrity and enduring performance in demanding operational environments.
Material Science and Manufacturing Excellence: Low Carbon Stamped Steel
The selection of low carbon stamped steel as the primary material for this Banjo Eye is a deliberate engineering choice, balancing strength, cost-effectiveness, and ease of fabrication. Low carbon steel, characterized by its carbon content typically below 0.25%, exhibits excellent ductility and formability, making it ideal for stamping processes that produce the intricate and strong Banjo Eye shape. The stamping process itself ensures consistent part dimensions and material thickness across batches, which is crucial for predictable performance and ease of installation. Furthermore, low carbon steel is renowned for its exceptional weldability, a paramount characteristic for a component designed for permanent attachment through fusion welding. Its low carbon equivalent minimizes the risk of hydrogen-induced cracking and allows for a wide range of welding techniques, including Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW/MIG), and Gas Tungsten Arc Welding (GTAW/TIG), without requiring extensive pre-heating or post-weld heat treatment in most typical applications. This inherent weldability ensures that when properly installed, the Banjo Eye forms a monolithic, high-strength connection with the parent structure, distributing load stresses effectively and preventing localized failure. While the product is offered in a plain finish, providing a raw steel surface, this decision offers flexibility for end-users to apply custom coatings (e.g., paint, powder coat, galvanization) tailored to specific environmental conditions or aesthetic requirements post-installation, thereby extending its service life and corrosion resistance.
Design Principles and Functional Superiority of the Banjo Eye
The "Banjo Eye" design is more than just a descriptive term; it reflects a functional form optimized for chain securement. Its circular or semi-circular eye with a robust, flat base provides an ideal interface for the end link of a 3/8 inch chain. The generous internal radius of the eye minimizes stress concentration on the chain link, preventing premature wear or deformation, even under dynamic loading conditions. The substantial material thickness of 1/4 inch, combined with the overall height and width of 3-1/2 inches, provides ample cross-sectional area to withstand significant tensile and shear forces encountered during load securement. This design ensures that the Banjo Eye can effectively transfer forces from the secured chain into the underlying structural component without yielding. The integrated base is specifically designed for full-perimeter welding, maximizing the contact area and creating a strong, continuous metallurgical bond. This distributes the applied load over a larger area of the parent structure, reducing localized stress and enhancing the overall structural integrity of the securement point. The simplicity of the Banjo Eye design contributes to its reliability, as there are no moving parts or complex mechanisms that could fail due to wear, corrosion, or impact in harsh operating environments. Its robust, static nature makes it a dependable component in critical load-bearing applications.
Precision Engineering for 3/8 Inch Chain Compatibility
The precise sizing of this Banjo Eye for a 3/8 inch chain is a critical design feature directly impacting safety and efficiency. A 3/8 inch chain is a commonly utilized size in medium to heavy-duty load securement, known for its optimal balance of strength, weight, and flexibility. The internal dimensions of the Banjo Eye are carefully calibrated to allow for free movement and easy attachment/detachment of standard 3/8 inch chain links while preventing excessive play that could lead to rattling, wear, or an insecure connection. This ensures that the chain can articulate naturally under load, distributing forces evenly without binding or creating localized stress points at the attachment interface. The robust 1/4 inch material thickness and overall structural dimensions are engineered to exceed the working load limit (WLL) of typical 3/8 inch transport chains (e.g., Grade 70 transport chain), providing a significant factor of safety. This compatibility is vital for compliance with transport regulations, which often mandate specific chain grades and securement point strengths. By specifying compatibility with 3/8 inch chain, Buyers Products ensures that this Banjo Eye integrates seamlessly into existing and new load securement strategies, offering a reliable anchor point that meets industry standards for performance and safety.
Comprehensive Installation Guide: Welding Best Practices for Carbon Steel
Proper installation of the Steel Banjo Eye is paramount to its performance and the overall safety of the load securement system. As a weld-on component, adherence to established welding best practices for carbon steel is essential.
Surface Preparation:
Prior to welding, the mating surfaces on both the Banjo Eye and the structural component (e.g., dump tailgate) must be thoroughly cleaned. This involves removing all paint, rust, grease, oil, scale, and any other contaminants that could compromise weld quality. Grinding, wire brushing, or solvent cleaning are recommended methods to expose clean, bare metal.Welding Process Selection:
Given the low carbon steel material, various welding processes are suitable:- Shielded Metal Arc Welding (SMAW - Stick Welding): Highly versatile for outdoor and field conditions. Recommended electrodes typically include E7018 for high strength and ductility, or E6010/E6011 for penetration and all-position welding.
- Gas Metal Arc Welding (GMAW - MIG Welding): Offers high deposition rates and relatively easy operation, making it suitable for production environments. ER70S-6 wire with a shielding gas of 75% Argon/25% CO2 (C25) is a common and effective choice.
- Gas Tungsten Arc Welding (GTAW - TIG Welding): Provides superior aesthetic quality and precise control, often used when appearance and high-integrity welds are critical. Requires more operator skill.
Welding Parameters:
Appropriate voltage, amperage, and travel speed must be selected based on the specific welding process, electrode/wire diameter, and material thickness of both the Banjo Eye (1/4 inch) and the parent structure. Proper penetration without burn-through is the objective. Consult welding machine manufacturers' guidelines and relevant welding codes (e.g., AWS D1.1 for Structural Steel Welding).Joint Design:
A full-perimeter fillet weld is recommended for attaching the Banjo Eye's base to the structural component. The weld bead should be continuous, free of porosity, undercut, or excessive spatter, ensuring a strong and uniform bond around the entire periphery of the base.Positional Welding:
Whenever possible, position the workpiece for flat or horizontal welding, as these positions typically yield the highest quality welds. If out-of-position welding is unavoidable, adjust parameters and techniques accordingly.Safety Precautions:
Always wear appropriate Personal Protective Equipment (PPE), including welding helmet, gloves, protective clothing, and safety footwear. Ensure adequate ventilation to prevent inhalation of welding fumes. Implement fire prevention measures in the welding area.Inspection:
After welding, visually inspect the weld for continuity, proper bead profile, and absence of defects. Non-destructive testing (NDT) methods like dye penetrant or magnetic particle inspection can be employed for critical applications to verify weld integrity. A properly executed weld will ensure the Banjo Eye functions as designed, providing a secure and durable attachment point for the life of the equipment.Applications and Operational Environments
The Buyers Products Steel Banjo Eye is engineered for rigorous use across a spectrum of demanding applications where secure load retention is paramount. Its primary use on dump tailgates highlights its suitability for industries such as construction, waste management, landscaping, and aggregate transport. In these contexts, the Banjo Eye serves as a robust anchor point for chains used to secure tarps, nets, or secondary gates, preventing spillage and ensuring compliance with transportation regulations. Beyond dump trucks, its utility extends to:
- Commercial Trailers: Providing additional tie-down points on flatbeds, step decks, and utility trailers for securing oversized or unconventional cargo.
- Agricultural Equipment: Attaching chains for towing, securing implements, or retaining loads on farm wagons and spreaders.
- Heavy Construction Machinery: Creating securement points on excavators, loaders, and bulldozers for transport or accessory attachment.
- Industrial Fixtures: Integrating into custom fabrications, workbenches, or storage racks to create versatile tie-down or lifting points (within appropriate WLL).
Compliance, Safety, and Load Securement Principles
The use of the Buyers Products Steel Banjo Eye directly contributes to enhanced safety and regulatory compliance in load securement. Regulatory bodies such as the Federal Motor Carrier Safety Administration (FMCSA) in the United States and similar agencies globally mandate strict guidelines for securing cargo on commercial vehicles. These regulations often specify minimum working load limits (WLLs) for securement devices and require that tiedown components meet certain strength criteria. A properly welded Banjo Eye, when used with a compatible 3/8 inch chain (such as a Grade 70 transport chain), forms a securement assembly that can reliably meet or exceed these requirements. Key principles of load securement include:
- Adequate Number of Tiedowns: Ensuring sufficient securement points to prevent shifting or falling of cargo.
- Appropriate Working Load Limits: Matching the WLL of all components (chains, binders, and anchor points like the Banjo Eye) to the weight and nature of the cargo. The Banjo Eye is designed with a substantial safety factor to complement high-strength chains.
- Proper Angle and Tension: Applying tiedowns at effective angles and with sufficient tension to counteract forces of acceleration, deceleration, and cornering.
- Protection Against Abrasion: Utilizing edge protectors where chains contact sharp edges, extending the life of both the chain and the cargo.
Maintenance and Longevity in a Plain Finish
The plain finish of the Buyers Products Steel Banjo Eye signifies a raw, uncoated carbon steel surface. While this finish is ideal for direct welding without requiring prior coating removal, it also means the component is susceptible to corrosion, particularly in outdoor, humid, or abrasive environments. To ensure maximum longevity and maintain structural integrity, especially in applications exposed to road salts, chemicals, or constant moisture, post-installation treatment is highly recommended. Common post-installation finishing options include:
- Painting: Application of industrial-grade primers and topcoats provides a barrier against moisture and corrosive agents. Epoxy-based or polyurethane paints offer excellent durability.
- Powder Coating: A more durable and aesthetically pleasing option, typically applied in a controlled environment. Provides a robust, chip-resistant finish.
- Hot-Dip Galvanizing: For extreme corrosion resistance, galvanizing the entire structure (including the Banjo Eye after welding) creates a metallurgical bond of zinc, offering cathodic protection against rust.
Summary of Technical Advantages
In conclusion, the Buyers Products Steel Banjo Eye for 3/8 Inch Chain is a meticulously engineered, high-performance component essential for dependable load securement. Its core strengths lie in its:
- Optimized Material: Low carbon stamped steel offers a superior balance of weldability, formability, and inherent strength, ensuring a durable and easily integrated product.
- Robust Design: The Banjo Eye geometry, with its 1/4 inch thickness and substantial dimensions (3-1/2 inches height and width), is specifically engineered to withstand significant tensile and shear loads, providing a secure and stable latching point for 3/8 inch chains.
- Precision Compatibility: Exacting dimensions ensure seamless interaction with 3/8 inch chains, maximizing securement effectiveness and minimizing wear.
- Versatile Application: Ideal for dump tailgates, commercial trailers, agricultural machinery, and custom fabrications, adaptable to a wide array of heavy-duty environments.
- Ease of Integration: Designed for permanent, high-strength welding, simplifying installation and ensuring a lasting connection.
- Safety and Compliance: Contributes significantly to meeting stringent load securement regulations, enhancing operational safety and reducing risk.
