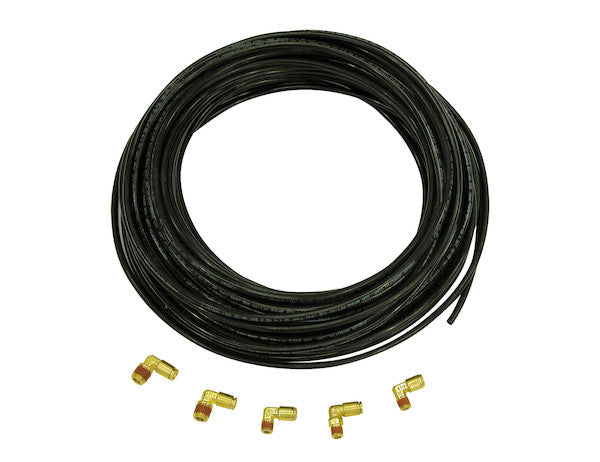

Buyers Products Nylon Tube and Fitting Installation Kit includes a DOT-approved nylon tube and five elbows needed to install cylinders using Buyers Products BAV010 or BAV020 air valves. Kits are available with 1/4 in. or 3/8 in. tubes to fit a variety of applications.
Specifications
| Diameter (in.) | 3/8 |
|---|---|
| For Use With | BAV010 or BAV020 air valves |
| Length (ft) | 100 |
The 3/8 Inch Nylon Tube and Fitting Installation Kit represents a meticulously engineered solution designed for the rigorous demands of modern pneumatic systems. This comprehensive kit provides all essential components required for the secure and efficient installation of pneumatic cylinders, specifically tailored for seamless integration with Buyers Products BAV010 or BAV020 air valves. Constructed from high-grade, DOT-approved nylon tubing and complemented by robust fittings, this kit ensures optimal performance, unparalleled reliability, and full compliance with industry safety standards. Professionals in commercial transportation, heavy equipment, and industrial automation will find this kit indispensable for achieving superior pneumatic system integrity and operational excellence.
Central to this installation kit is the 3/8-inch diameter nylon tubing. The selection of nylon as the primary material for pneumatic lines is predicated on its superior mechanical properties and chemical resistance compared to conventional materials. Typically, high-performance nylon variants such as Nylon 11 or Nylon 12 are utilized, offering an exceptional balance of flexibility, strength, and durability. This specific diameter, 3/8 inch, is a standard for many medium-pressure pneumatic applications, providing an optimal flow rate while maintaining sufficient flexibility for complex routing requirements. The tubing boasts excellent resistance to abrasion, a critical factor in dynamic environments where lines may be subjected to rubbing against chassis components or other infrastructure. Furthermore, nylon tubing exhibits high resistance to vibration fatigue, ensuring its longevity in applications characterized by constant movement and oscillation. Its inherent corrosion resistance eliminates issues commonly associated with metallic tubing, such as rust and galvanic corrosion, particularly in environments exposed to moisture, road salts, or industrial chemicals. The material's wide operating temperature range ensures consistent performance across diverse climatic conditions, from extreme cold to elevated temperatures, without compromising its structural integrity or pressure-holding capabilities. Chemical compatibility extends to various automotive and industrial fluids, including air, lubricants, and certain fuels, making it a versatile choice for multi-purpose systems. Moreover, nylon tubing offers a significant weight advantage over metallic alternatives, contributing to overall vehicle or machinery weight reduction and potentially improving fuel efficiency. The inclusion of a generous 100-foot length of tubing provides ample material for extensive or multiple installations, minimizing waste and ensuring sufficient reach for even the most demanding layouts.
A critical feature underscoring the quality and regulatory adherence of this kit is its DOT approval. This certification signifies that the nylon tubing meets stringent standards set forth by the U.S. Department of Transportation, particularly those outlined in FMVSS 106 (Federal Motor Vehicle Safety Standard No. 106), which pertains to brake hoses. While this kit is specified for cylinder installations, the DOT approval for brake hose equivalent performance inherently validates the tubing's capability to withstand the pressures, temperatures, and dynamic stresses encountered in critical pneumatic systems. This assurance of compliance guarantees a high level of safety and reliability, essential for applications where system failure could have significant operational or safety implications. The rigorous testing involved in achieving DOT approval includes pressure resistance, burst strength, cold flexibility, and resistance to environmental degradation, all of which confirm the tubing's robust performance characteristics.
Complementing the high-performance nylon tubing are the five precision-engineered elbows included in the kit. These fittings are crucial for proper line routing, allowing for clean, professional, and functionally superior installations. Elbows facilitate directional changes in the tubing path, preventing kinking, which can restrict airflow, induce pressure drops, and ultimately degrade the performance and lifespan of the tubing. While the specific type of elbow fitting (e.g., push-to-connect, compression) is not detailed, such fittings are typically designed for ease of installation, robust sealing, and secure retention of the tubing. Push-to-connect (PTC) fittings, a common choice for nylon tubing, offer significant advantages, including tool-free installation, quick assembly and disassembly, and reliable, leak-free connections. These fittings often incorporate an internal collet and an O-ring seal to grip the tubing firmly and prevent air leakage, even under varying pressures and vibrations. The material composition of the fittings, whether brass, composite, or plated steel, is selected for its strength, corrosion resistance, and compatibility with the pneumatic system environment. The inclusion of five elbows provides ample flexibility for navigating complex installation pathways, ensuring that the air lines can be routed optimally to avoid pinch points, excessive bending, and potential damage. Proper utilization of elbows helps maintain the integrity of the pneumatic system, ensuring consistent air pressure delivery to the cylinders and promoting efficient operation.
The explicit compatibility of this kit with Buyers Products BAV010 and BAV020 air valves is a key design consideration, simplifying the specification and procurement process for system integrators. The BAV010 and BAV020 valves are likely solenoid-operated or manually controlled pneumatic valves designed to precisely regulate the flow of compressed air to single or double-acting cylinders. Their role is critical in controlling the extension and retraction of cylinders, which perform various mechanical tasks in vehicles or machinery. This installation kit ensures that the tubing and fittings are perfectly matched to the valve's port sizes and connection types, eliminating compatibility issues, reducing installation time, and guaranteeing a secure, leak-free connection. The synergy between the high-quality air lines and the control valves is paramount for achieving optimal cylinder responsiveness, accurate positioning, and efficient power transmission. Any compromise in the air line integrity—such as leaks, restrictions, or improper connections—can lead to sluggish cylinder movement, reduced force, increased air consumption, and premature wear on components. By providing a dedicated installation kit, Buyers Products ensures that its control valves can be integrated into pneumatic systems with the highest degree of reliability and performance.
The advanced technical specifications and robust design of this installation kit lend themselves to a wide array of demanding applications across various industries. In the commercial transportation sector, this kit is ideal for auxiliary pneumatic systems, including air suspension controls, cab air system components, air-actuated fifth-wheel locking mechanisms, and pneumatic door systems on buses or specialty vehicles. The DOT approval ensures its suitability for critical functions where safety and reliability are non-negotiable. For heavy equipment, such as construction machinery, agricultural vehicles, and material handling equipment, the kit can be used to connect pneumatic tools, control auxiliary functions like locking differentials, or operate various actuators. The vibration resistance and durability of the nylon tubing are particularly beneficial in these harsh, high-impact environments. In industrial automation, the kit provides a dependable solution for connecting pneumatic actuators in assembly lines, robotic systems, and other factory floor machinery where precise and repeatable motion control is required. The ability to route lines efficiently and securely contributes to streamlined machine design and reduced maintenance downtime. Furthermore, the kit's components are designed to meet or exceed relevant industry standards beyond just DOT, often implicitly adhering to performance benchmarks from organizations like SAE (Society of Automotive Engineers) and ISO (International Organization for Standardization) for pneumatic system components. This broad compliance ensures that the kit is a globally applicable and trustworthy solution for professional pneumatic installations.
Successful installation and long-term system integrity hinge on adhering to best practices during the assembly process. Firstly, proper tube preparation is essential. The nylon tubing must be cut squarely and cleanly, free of burrs, using a dedicated tube cutter. An uneven or burred cut can compromise the seal within the fitting, leading to leaks and system inefficiency. When routing the tubing, it is crucial to observe the minimum bend radius specifications to prevent kinking, which restricts airflow and creates stress points in the material. The tubing should be routed to avoid contact with sharp edges, hot surfaces (e.g., exhaust components), or areas of high abrasion. Securing the lines with appropriate clamps or ties at regular intervals prevents chafing and minimizes movement due to vibration, thereby extending the tubing's lifespan. When connecting to push-to-connect fittings, ensure the tube is fully inserted until it bottoms out against the internal stop to achieve a secure grip and a positive seal. After installation, a thorough leak test is imperative. This can be performed by applying a soap solution to all connections and observing for bubble formation, or by using electronic leak detectors. Any detected leaks must be addressed immediately to prevent pressure loss, wasted energy, and potential system malfunction. For maintenance, routine inspection of the air lines and fittings for signs of wear, abrasion, cracks, or loose connections is recommended. Proactive replacement of damaged sections before complete failure can prevent costly downtime and enhance overall operational safety. Proper storage of unused tubing, away from direct sunlight and extreme temperatures, also contributes to preserving its material integrity and readiness for future use.
In conclusion, the 3/8 Inch Nylon Tube and Fitting Installation Kit stands as a premier solution for professionals seeking robust, reliable, and compliant pneumatic system components. Its core strength lies in the synergy of DOT-approved, high-performance 3/8-inch nylon tubing—provided in a generous 100-foot length—and five meticulously designed elbows, all engineered for optimal fluid dynamics and mechanical integrity. This kit’s specific compatibility with Buyers Products BAV010 and BAV020 air valves streamlines the installation of pneumatic cylinders, ensuring perfect interfacing and peak operational efficiency. By leveraging advanced material science and adherence to stringent safety standards, this kit guarantees exceptional durability, resistance to environmental degradation, and long-term, leak-free performance. For critical applications in commercial transportation, heavy machinery, or industrial automation, investing in this installation kit translates directly into enhanced safety, reduced maintenance, and superior pneumatic system control, solidifying its position as an essential component for any high-performance pneumatic build.
