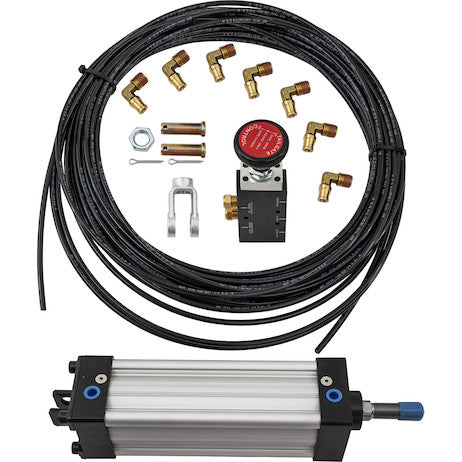

Keep your tailgate operating smoothly with Buyers Products Tie Rod Cylinder Kit. Each cylinder houses and protects an enclosed tie rod in a durable extruded aluminum body. Kits include everything to install the tie rod cylinder, including air valve and tubing. The cylinders are ideal for dump truck operators to engage and disengage tailgate latches from inside their vehicle without having to leave the cab.
Specifications
| Bore | 2.5 |
|---|---|
| Dim A | 13.25 |
| Dim B | 19.25 |
| Features | V, SPK |
| Mount | Clevis |
| Rod Dia | .750 |
| Stroke | 6 |
The Buyers Products Tie Rod Style Cylinder Kit, featuring a Clevis Mount, 0.75-inch Rod, 6-inch Stroke, and the integrated BAV020 Valve, is a precision-engineered pneumatic actuation system optimized for demanding heavy-duty dump truck operations. This comprehensive kit provides a robust, reliable, and efficient solution for remote, in-cab control of tailgate latches, significantly enhancing operational safety, productivity, and operator convenience. This technical exposition details the design, material specifications, functional parameters, and strategic advantages of this advanced pneumatic cylinder system.
Engineered Design and Construction

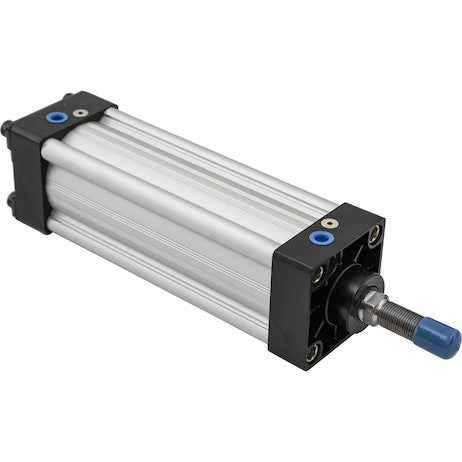

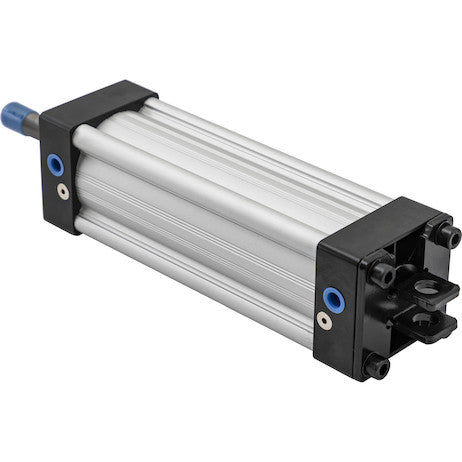

At its core, this system utilizes a tie rod style pneumatic cylinder, renowned for structural integrity, modularity, and ease of maintenance in industrial and mobile applications. Its construction features a robust extruded aluminum cylinder barrel, securely joined to precision-machined end caps by high-strength external tie rods. This configuration ensures superior resistance to internal pressure and external forces, providing stable, durable performance under continuous dynamic loads and severe vibration common in commercial vehicle use. The extruded aluminum barrel offers an optimal strength-to-weight ratio and excellent corrosion resistance against environmental factors such as moisture, road salts, and temperature extremes. The refined internal bore finish minimizes piston seal friction, optimizing airflow and extending component service life.
Critical to its longevity is the robust protection afforded to the piston rod. Operating in abrasive and corrosive dump truck environments, the piston rod is safeguarded against contaminants like dust, grit, moisture, and potential impacts. This preserves the rod's surface integrity, influencing the lifespan and effectiveness of rod seals and wipers. By preventing premature wear or corrosion, the system maintains consistent sealing performance, mitigates air leakage, and ensures reliable cylinder operation, extending its operational lifespan and reducing maintenance frequency.
Detailed Specifications and Functional Relevance
The cylinder's 2.5-inch bore defines its force output. With an approximate effective piston area of 4.91 square inches, it generates sufficient force for reliable tailgate latch actuation (e.g., 390-490 pounds at 80-100 PSI). This ensures decisive engagement/disengagement under varied load conditions. The substantial 0.750-inch piston rod provides critical rigidity and buckling resistance, essential for dynamic applications involving compressive, tensile, and side loads. Its robust diameter minimizes deflection and vibration, ensuring precise linear motion. Crafted from precision-ground, hard chrome-plated steel, the rod surface offers superior corrosion resistance and low friction, maximizing seal lifespan. The precisely defined 6-inch stroke length matches the exact linear displacement required for comprehensive dump truck tailgate latching. This controlled travel ensures secure closure and full opening, preventing operational inefficiencies or damage from incomplete actuation. The clevis mounting style is selected for its inherent pivoting capability, crucial for articulated applications. This pin-based connection accommodates minor angular misalignments, minimizing stress on the cylinder and mounting hardware. Its robust design suits significant tensile/compressive loads, simplifying integration and maintenance. Critical center-to-center dimensions specify the cylinder's fully retracted (Dim A: 13.25 inches) and fully extended (Dim B: 19.25 inches) lengths. The 6.00-inch difference confirms the stroke. These precise figures are paramount for accurate mechanical integration, ensuring correct fitment and preventing binding or over-extension, which could compromise system integrity.
Integrated Control System: BAV020 Valve and Comprehensive Kit

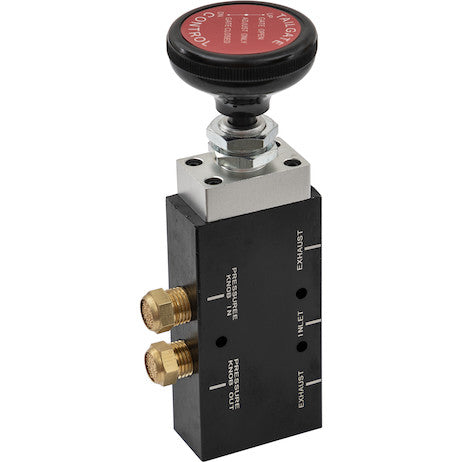

This kit ensures seamless compatibility and simplified installation. The BAV020 Valve is the primary directional control unit for the double-acting cylinder. It precisely directs compressed air to control extension and retraction, typically a 4-way, 2-position valve. Its design allows for responsive, remote actuation from the cab, often via an electric solenoid, ensuring efficient and precise tailgate latch control. The included pneumatic tubing is pre-selected for correct diameter and material (e.g., durable nylon or polyurethane) to ensure optimal system performance. It withstands operational pressures, temperature fluctuations, and environmental exposure. Proper tubing selection minimizes pressure drop, ensuring consistent airflow and maintaining a leak-free system. The comprehensive "kit" approach, indicated by the SPK feature (likely "Seal and Packing Kit" or "Special Purpose Kit"), streamlines procurement and installation by bundling cylinder, valve, and tubing. This guarantees component compatibility, reduces sourcing complexities, minimizes installation errors, accelerates deployment, and lowers overall total cost of ownership.
Strategic Benefits for Dump Truck Operations
This kit delivers substantial advantages for dump truck functionality and safety. Enhanced operator safety results from remote, in-cab control of tailgate latches, eliminating operator exposure to hazardous environments (e.g., active construction sites, traffic, adverse weather). This significantly reduces exposure to moving equipment, traffic risks, and environmental dangers, mitigating injury potential. Optimized operational efficiency is achieved through rapid, uninterrupted tailgate engagement/disengagement, reducing cycle times and increasing daily productivity. This streamlines workflow, minimizes operator fatigue, and enables quick adjustments for varied material handling without operational pauses. Its inherent durability in extreme environments is assured by the extruded aluminum body, robust tie-rod construction, protected piston rod, and high-quality seals. Engineered to withstand extreme temperatures, constant vibration, shock loads, and corrosive agents, the kit ensures reliable performance and extended service life in demanding commercial settings, minimizing downtime and maintenance costs.
Engineering Excellence and System Advantages
The design incorporates key engineering advantages. Pneumatic systems suitability is evident, as they are preferred for tailgate actuation due to inherent cleanliness, ready availability of onboard air, faster response times, and less temperature sensitivity compared to hydraulics, leading to simpler plumbing and lower operational complexity. Advanced sealing technology, featuring high-performance piston, rod, and static seals from durable elastomers, is critical for efficiency and longevity. Piston seals prevent air bypass, while rod seals and wipers prevent external leakage and exclude contaminants. This robust sealing system ensures internal cleanliness, prevents premature wear, and guarantees a long, leak-free operational life in abrasive and dirty conditions. The inherent maintainability of tie rod cylinder designs allows for individual component replacement, such as seals and bearings, without requiring full cylinder replacement. This significantly reduces repair costs, simplifies troubleshooting, and minimizes vehicle downtime, ensuring a higher return on investment over the asset's lifespan.
Installation Best Practices and Operational Longevity
While designed for straightforward integration, correct installation practices are crucial for optimizing performance and lifespan. The clevis mount must be securely fastened with precise alignment to prevent side loading on the piston rod, which can accelerate wear. All pneumatic connections must be tight and leak-free. Proper routing of the included tubing is essential, avoiding sharp bends, abrasive surfaces, and heat sources. The BAV020 valve should be mounted in a protected yet accessible location. A consistent supply of clean, dry, and regulated compressed air is paramount; an air filter and regulator upstream of the valve are strongly recommended to protect against particulates and maintain stable operating pressure. For solenoid valves, correct electrical wiring and fusing, compliant with vehicle standards, are critical. Adherence to manufacturer’s guidelines for installation and operational parameters will ensure maximum reliability, safety, and extended service life.
Conclusion
The Buyers Products Tie Rod Style Cylinder Kit, with its Clevis Mount, 0.75-inch Rod, 6-inch Stroke, and integrated BAV020 Valve, represents a state-of-the-art pneumatic solution for dump truck tailgate actuation. Its superior design, utilizing durable extruded aluminum, robust tie-rod construction, and a precisely matched control valve, ensures exceptional performance, longevity, and operational efficiency. By enabling in-cab control, this kit significantly enhances operator safety, reduces operational risks, and streamlines the dumping process, thereby improving overall productivity. This comprehensive, professional-grade system is a strategic asset for any fleet requiring dependable, high-performance, and safe solutions for their heavy-duty commercial vehicle applications, reflecting Buyers Products' unwavering commitment to engineering excellence and practical utility in demanding industrial environments.
