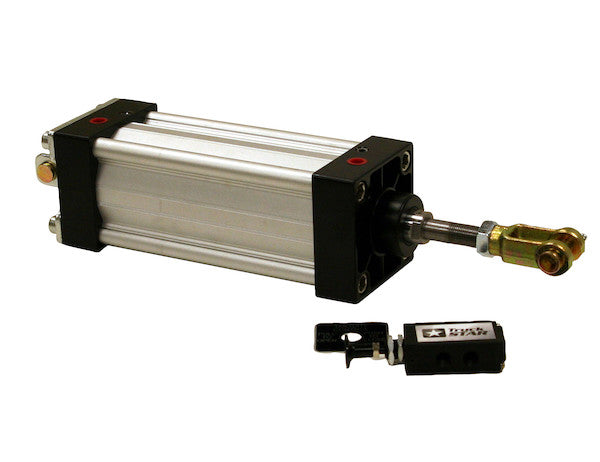

Keep your tailgate operating smoothly with Buyers Products Tie Rod Cylinders. Each cylinder houses and protects an enclosed tie rod in a durable extruded aluminum body. The cylinders are ideal for dump truck operators to engage and disengage tailgate latches from inside their vehicle without having to leave the cab.
Specifications
| Bore | 2.5 |
|---|---|
| Dim A | 15.25 |
| Dim B | 23.25 |
| Features | V, K |
| Mount | Clevis |
| Rod Dia | .750 |
| Stroke | 8 |
Advanced Engineering and Application of the Tie Rod Style Cylinder
The Buyers Products Tie Rod Style Cylinder, specifically configured with a Clevis Mount and featuring a 0.75-inch rod diameter, an 8-inch stroke, and designed for manual air actuation, represents a cornerstone in robust and reliable pneumatic control systems. This comprehensive description delves into the technical intricacies, design philosophies, operational advantages, and diverse applications of this critical industrial component, extending beyond its immediate utility in tailgate operations to a broader spectrum of demanding environments.
Design and Construction: The Core of Durability and Performance
At the heart of this cylinder’s exceptional performance lies its tie rod construction, a classic and highly effective design methodology chosen for its inherent strength, modularity, and ease of maintenance. Unlike crimped or welded designs, tie rod cylinders utilize external tie rods that span the length of the cylinder body, securely fastening the end caps to the barrel. This design ensures superior mechanical stability, preventing component separation even under significant internal pressures or external stresses. The tie rods themselves are typically manufactured from high-tensile steel, providing the necessary clamping force to maintain the integrity of the cylinder assembly throughout its operational life. This construction also facilitates straightforward disassembly for seal replacement or component inspection, significantly enhancing the cylinder's serviceability and extending its overall lifespan.
The cylinder’s body is crafted from an extruded aluminum profile, a deliberate choice that confers several significant advantages. Extruded aluminum offers an optimal balance of strength-to-weight ratio, making the cylinder robust without imposing excessive mass on the system it operates within. Aluminum's inherent corrosion resistance is further enhanced through various surface treatments, often an anodization process, which creates a durable, protective oxide layer. This ensures the cylinder can withstand harsh environmental conditions, including exposure to moisture, road salts, and chemical agents, which are prevalent in mobile equipment applications like dump trucks. Furthermore, the extrusion process allows for tight manufacturing tolerances, resulting in an exceptionally smooth internal bore finish. This critical aspect minimizes friction between the piston and the cylinder wall, reducing wear on seals, optimizing air consumption, and ensuring consistently smooth and precise piston movement across the entire 8-inch stroke. The uniform cross-section provided by the extrusion also contributes to the cylinder's aesthetic appeal and ease of integration into existing mechanical frameworks.
A key protective feature is the enclosed design of the tie rod mechanism. By housing and shielding the tie rods within the extruded aluminum body, this cylinder safeguards critical structural components from physical damage, abrasive particles, and corrosive elements. In environments where dust, debris, and impacts are common, such as construction sites or industrial material handling, this enclosed design significantly mitigates the risk of tie rod fatigue or failure, thereby ensuring consistent operational integrity and reducing unscheduled downtime.
Pneumatic Actuation: Manual Air Control and System Integration
This cylinder operates via "Manual Air," signifying a pneumatic system controlled directly by an operator through a manual valve. Pneumatic systems are characterized by their cleanliness, rapid response, and inherent safety, making them ideal for applications where electricity is undesirable or where precise, human-initiated control is paramount. The use of compressed air as the working fluid eliminates the risk of hydraulic fluid leaks, which can contaminate environments and pose fire hazards, and offers a simpler, often more cost-effective solution for linear actuation.
The manual air control mechanism typically involves a directional control valve, which the operator manipulates to direct compressed air to one side of the piston while simultaneously exhausting air from the other. For a double-acting cylinder, as this one implicitly is for engaging and disengaging, two air ports are present: one for extension and one for retraction. The operator's manual input provides instantaneous control over the cylinder's movement, allowing for precise positioning or rapid actuation as required. Typical operating pressures for such pneumatic cylinders range from 60 PSI (4 bar) to 120 PSI (8 bar), providing ample force for the intended applications. The system requires a clean, dry, and regulated air supply, usually managed by an FRL (Filter, Regulator, Lubricator) unit. The filter removes contaminants and moisture, the regulator maintains consistent pressure, and the lubricator (if necessary for internal components) introduces a fine oil mist into the air stream to reduce friction and wear on seals and internal moving parts.
Cylinder Specifications and Performance Metrics
The precise specifications of this cylinder—Bore: 2.5 inches, Rod Diameter: 0.750 inches, Stroke: 8 inches, and Clevis Mount—are meticulously chosen to deliver optimal performance for its target applications.
Bore (2.5 inches): The bore diameter dictates the theoretical force output of the cylinder. According to the formula F = P × A (Force = Pressure × Area), where Area = π × (Bore/2)², a 2.5-inch bore yields a cross-sectional area of approximately 4.91 square inches. At a typical operating pressure of 80 PSI, the theoretical extension force would be approximately 392.8 pounds (80 PSI × 4.91 in²). At 100 PSI, this increases to around 491 pounds. For retraction, the rod area must be subtracted from the piston area, meaning the effective area for retraction is smaller, resulting in slightly less retraction force. This level of force is more than adequate for engaging and disengaging heavy-duty tailgate latches, as well as a myriad of other industrial tasks requiring moderate force and precise motion.
Rod Diameter (0.750 inches): The piston rod, with a diameter of 0.75 inches, is engineered for superior strength and resistance to buckling, particularly important for cylinders with longer strokes operating under varying loads. These rods are typically manufactured from high-strength steel, often precision-ground, polished, and hard chrome-plated. Hard chrome plating provides an extremely durable, corrosion-resistant surface that minimizes friction with rod seals, thereby extending seal life and preventing premature wear. The smooth surface finish is critical in maintaining the integrity of the rod seal, preventing air leakage and ingress of contaminants that could damage internal components.
Stroke (8 inches): The 8-inch stroke length defines the total linear travel of the piston rod. This specific stroke is ideal for applications requiring a moderate range of motion, such as the full engagement and disengagement cycle of a tailgate latch. It also offers versatility for other tasks like opening/closing gates, positioning components, or operating various mechanical linkages in industrial automation or mobile equipment. The precise control offered by the manual air system ensures that the full 8-inch stroke can be utilized with accuracy and repeatability.
Mounting (Clevis): The Clevis Mount is a highly practical and widely utilized mounting style for pneumatic cylinders, especially in applications where a pivoting action is required or where some degree of angular misalignment may occur during operation. A clevis mount typically involves a U-shaped bracket with a pin that connects the cylinder directly to a moving component or structure. This design allows the cylinder to pivot freely through a limited arc as it extends and retracts, accommodating the natural angular changes inherent in many mechanical linkages. The Clevis mount is renowned for its simplicity, ease of installation, and robust connection. The provided dimensions, Dim A (15.25 inches) and Dim B (23.25 inches), represent the overall length of the cylinder in its retracted and extended states, respectively, measured from the center of the clevis pin bore. These critical dimensions are essential for engineers and installers to ensure proper fitment, clearance, and operational range within the machinery’s design envelope, preventing interference and guaranteeing unrestricted motion.
Internal Components and Sealing Technology
The internal architecture of this tie rod cylinder is designed for peak efficiency and longevity. The piston, often made from a lightweight, durable material like aluminum or acetal, is equipped with robust piston seals, commonly U-cup or O-ring designs made from compounds such as Nitrile (Buna-N) for general industrial use, or Polyurethane for enhanced abrasion resistance and higher pressure applications. These seals ensure minimal air bypass, maximizing force transmission and energy efficiency. Guide bands, typically made of PTFE or composite materials, support the piston within the bore, preventing metal-to-metal contact, reducing friction, and extending the life of both the piston and the cylinder barrel.
The rod sealing system is equally critical, comprising a rod seal and a rod wiper. The primary rod seal prevents compressed air from escaping along the piston rod during extension, while the rod wiper's crucial function is to prevent external contaminants like dust, dirt, and moisture from entering the cylinder as the rod retracts. Both components are selected for their resilience to pneumatic fluid (air), temperature variations, and mechanical wear. The end caps, precision-machined from durable materials (often aluminum or cast iron), securely house the rod bearings and seals, providing structural integrity to the entire assembly and serving as attachment points for the tie rods.
While not explicitly stated, high-quality pneumatic cylinders often incorporate internal cushioning mechanisms to absorb kinetic energy at the end of the stroke. This feature, typically achieved through adjustable air passages in the end caps, decelerates the piston smoothly, preventing impact damage, reducing noise, and extending the cylinder’s service life, particularly in higher-speed applications.
Applications and Operational Benefits
While ideally suited for tailgate operations on dump trucks, the Buyers Products Tie Rod Style Cylinder possesses a versatility that extends its utility across a broad spectrum of industrial and mobile applications. Its primary benefit for dump truck operators is unparalleled convenience and safety. The ability to engage and disengage tailgate latches remotely from within the cab eliminates the need for operators to exit the vehicle, reducing exposure to hazardous environments, inclement weather, and moving equipment. This directly translates into enhanced operator safety, reduced risk of injury, and improved operational efficiency by minimizing downtime during unloading cycles.
Beyond dump trucks, this cylinder is a valuable asset in:
- Material Handling Systems: Actuating gates, diverters, and stops on conveyor lines.
- Clamping and Holding Devices: Providing consistent force for securing workpieces in manufacturing processes.
- Automated Machinery: Operating various mechanisms in packaging, assembly, and processing equipment.
- Agricultural Equipment: Actuating minor linkages, gate controls, or auxiliary functions.
- Specialized Vehicles: Operating various attachments or mechanisms where pneumatic control is preferred.
The reliability and robust construction ensure consistent performance in these demanding roles, contributing to increased productivity and reduced operational costs.
Durability, Reliability, and Maintenance
The combination of a tie rod design, extruded aluminum body, hardened chrome-plated rod, and high-quality sealing technology bestows this cylinder with exceptional durability and reliability. Each component is chosen and manufactured to withstand the rigors of continuous operation in challenging industrial and outdoor environments. The protective nature of the enclosed tie rod design significantly contributes to its longevity by safeguarding internal mechanisms from corrosive agents, abrasive particles, and physical impact.
Maintenance requirements for this pneumatic cylinder are relatively low, primarily revolving around ensuring a clean, dry, and regulated air supply. Regular inspection of air lines for leaks, periodic checks of the FRL unit, and visual inspection of the piston rod for damage or scoring are generally sufficient to ensure optimal performance. The tie rod construction simplifies any necessary internal maintenance, allowing for straightforward access to seals and internal components should replacement be required after many years of service. This ease of serviceability further enhances the cylinder's long-term economic value.
Technical Features and Compliance
The "Features V, K" listed in the specifications table typically denote specific configurations, optional enhancements, or material selections tailored to particular operational requirements. While generic, these indicators suggest that Buyers Products offers specialized versions or accessories that can further optimize the cylinder for unique applications. For instance, such features might include specialized seal compounds for extreme temperatures or chemical resistance, magnetic pistons for integration with external position sensing switches, or specific porting arrangements for unique flow control needs. Adherence to industry-standard dimensions and performance criteria ensures compatibility with a wide range of pneumatic systems and associated components, simplifying integration for system designers and engineers.
Conclusion
The Tie Rod Style Cylinder with Clevis Mount, 0.75 Rod x 8 Inch Stroke, and Manual Air actuation from Buyers Products is more than just a component; it is a meticulously engineered solution for demanding linear actuation tasks. Its robust tie rod design, durable extruded aluminum construction, precise pneumatic control, and carefully selected specifications combine to deliver a product characterized by superior reliability, extended service life, and exceptional performance. Whether deployed in the critical function of remotely operating dump truck tailgates or integrated into complex industrial automation systems, this cylinder stands as a testament to advanced engineering, providing safety, efficiency, and unwavering operational integrity for the most challenging applications.
