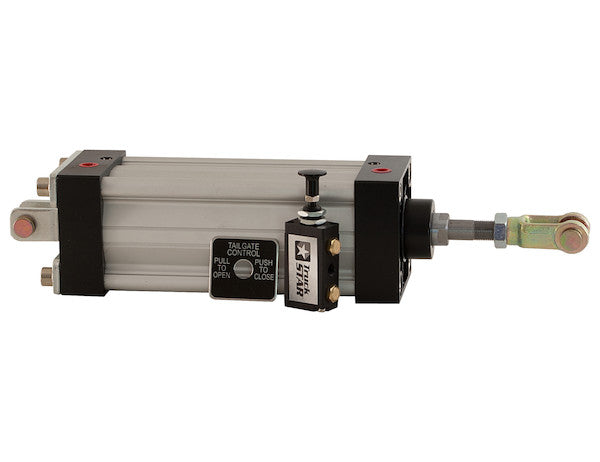

Keep your tailgate operating smoothly with Buyers Products Tie Rod Cylinders. Each cylinder houses and protects an enclosed tie rod in a durable extruded aluminum body. The cylinders are ideal for dump truck operators to engage and disengage tailgate latches from inside their vehicle without having to leave the cab.
Specifications
| Bore | 3.25 |
|---|---|
| Dim A | 15.00 |
| Dim B | 21.00 |
| Features | V, K |
| Mount | Clevis |
| Rod Dia | 1 |
| Stroke | 6 |
Advanced Engineering and Operational Excellence: The Tie Rod Style Cylinder with Manual Air Control
The Tie Rod Style Cylinder, meticulously engineered with a Clevis Mount, a robust 1.0-inch Rod, and a precise 6-inch Stroke, complemented by Manual Air control, represents a pinnacle of pneumatic actuation technology. Designed for discerning professionals in demanding industries, this cylinder provides unparalleled reliability, operational efficiency, and enhanced safety, particularly in critical applications such as tailgate latch mechanisms for heavy-duty dump trucks. Its construction embodies a commitment to durability and performance, ensuring smooth, consistent operation even in the most arduous environmental conditions.
Central to its superior performance is the tie rod style construction. Unlike welded cylinders, tie rod cylinders are celebrated for their inherent strength, ease of maintenance, and modularity. This design integrates the cylinder barrel, end caps, piston, and rod into a robust, easily serviceable assembly, held together by external tie rods that run the length of the cylinder. Buyers Products has advanced this concept by housing and protecting an enclosed tie rod within a durable extruded aluminum body. This innovative "enclosed tie rod" feature serves multiple critical functions: it shields the tie rods from external contaminants, corrosive elements, and physical impacts, thereby extending the cylinder’s operational lifespan and reducing the likelihood of catastrophic failure. Furthermore, the enclosed design contributes to a sleeker profile, facilitating integration into space-constrained applications while enhancing overall structural integrity by uniformly distributing stresses across the cylinder assembly.
The selection of an extruded aluminum body is a deliberate engineering choice, offering a confluence of advantages over traditional steel alternatives. Aluminum provides an exceptional strength-to-weight ratio, significantly reducing the overall mass of the cylinder without compromising its structural resilience. This is particularly beneficial in mobile equipment applications where weight reduction can lead to improved fuel efficiency and increased payload capacity. Beyond its lightweight properties, extruded aluminum exhibits superior resistance to corrosion, a crucial factor for components exposed to diverse weather conditions, road salts, chemicals, and industrial byproducts. The extrusion process itself allows for precise dimensional control and an excellent surface finish, contributing to the internal integrity of the barrel and optimizing seal performance. Moreover, aluminum's thermal conductivity aids in dissipating heat, maintaining optimal operating temperatures and prolonging the life of internal components and seals, especially during continuous duty cycles.
At the heart of the cylinder's actuation capability are its precise bore and stroke dimensions. With a 3.25-inch bore, this cylinder is capable of generating significant linear force when pressurized with compressed air. The force output can be calculated by multiplying the effective piston area (derived from the bore diameter) by the applied air pressure. For instance, at a common operating pressure of 100 PSI, a 3.25-inch bore cylinder can generate approximately 829 pounds of force, providing ample power to reliably engage and disengage heavy-duty tailgate latches. The 6-inch stroke length dictates the maximum linear travel of the piston rod, precisely calibrated to meet the throw requirements of most tailgate latch mechanisms, ensuring full engagement and disengagement without excessive travel. This optimized bore and stroke combination translates into a powerful yet controlled actuation suitable for a wide array of demanding tasks.
The piston rod, with a diameter of 1.0 inch, is a critical component designed for exceptional strength and durability. This robust diameter ensures the rod's resistance to bending, buckling, and shearing forces, which are frequently encountered in dynamic, heavy-duty applications. The rod's surface is typically precision-machined and hard-chromed or treated with other proprietary coatings to enhance its surface hardness, corrosion resistance, and lubricity. This superior finish minimizes friction with the rod seals, contributing to extended seal life and overall cylinder longevity, while preventing wear that could lead to external air leakage and degraded performance. The robust rod also ensures stability and precise movement under various loads, maintaining alignment and preventing premature wear on internal bearings and seals.
The Clevis Mount configuration further enhances the cylinder's versatility and adaptability. A clevis mount, typically found at one or both ends of the cylinder, features a U-shaped bracket with a pin hole that allows for pivotal attachment to another component. This mounting style is highly advantageous for applications requiring angular movement during the cylinder's extension and retraction cycles. It inherently accommodates slight misalignments and provides a flexible, self-aligning connection, reducing stress on the mounting points and the cylinder itself. For dump truck tailgate latches, the clevis mount facilitates the necessary arc of movement as the latch mechanism operates, ensuring smooth, bind-free articulation. The specification details Dim A (15.00 inches) and Dim B (21.00 inches) are crucial for installation planning, representing the center-to-center pin dimensions in the fully retracted and fully extended positions, respectively. These precise measurements allow design engineers to accurately integrate the cylinder into existing machinery or new designs, guaranteeing proper fitment and optimal functional clearances.
A distinctive and highly practical feature of this cylinder is its "Manual Air" control capability. This signifies that the cylinder is designed for direct pneumatic operation, controlled manually by an operator, typically from inside a vehicle cab. This setup usually involves a manual directional control valve (e.g., a push-pull valve, lever valve, or toggle valve) connected to the cylinder via air lines. When the operator actuates the valve, compressed air is directed to either the extend or retract port of the cylinder, causing the piston rod to move. The benefits of manual air control are numerous. It provides immediate, intuitive feedback to the operator, ensuring precise control over the tailgate latch. It eliminates the complexities and potential failure points associated with electronic or automated systems, offering a simple, robust, and highly reliable method of operation. In environments where electrical systems might be vulnerable to moisture, vibration, or impact, pneumatic manual control offers a safer and more durable alternative.
Pneumatic operation itself offers significant advantages. Compressed air is a clean, readily available, and safe power source. Unlike hydraulic systems, pneumatic systems do not involve messy fluids that can leak and contaminate the environment. They are typically faster in operation and more forgiving of minor leaks, which usually do not pose a safety hazard. However, robust sealing is still paramount to prevent pressure loss and maintain efficiency. The "Features: V, K" in the specifications likely refer to advanced sealing systems and construction characteristics optimized for pneumatic applications in harsh conditions. These could include high-performance piston seals (e.g., U-cup seals, chevron packing) and rod seals (e.g., wiper seals, primary seals) made from durable materials like polyurethane or high-grade nitrile rubber, capable of withstanding wide temperature variations, abrasive particles, and high cycle rates. These features ensure minimal internal and external leakage, promoting consistent force output and extending the operational life of the cylinder.
The primary application of this Tie Rod Style Cylinder in dump truck tailgate latching highlights its critical role in enhancing both operator safety and operational efficiency. Traditionally, engaging and disengaging tailgate latches required operators to exit the cab, often in hazardous conditions such as heavy traffic, uneven terrain, inclement weather, or near moving machinery. By enabling in-cab control through a reliable pneumatic cylinder, operators can perform this task safely and comfortably without leaving the vehicle. This drastically reduces the risk of accidents, slips, falls, and exposure to environmental hazards. Furthermore, the efficiency gains are substantial; operators save valuable time by not having to repeatedly exit and re-enter the cab, leading to faster turnaround times, increased productivity, and reduced operator fatigue over long shifts. The dependable operation of the cylinder ensures that the tailgate latches engage securely, preventing accidental material spills, and disengage smoothly, facilitating efficient dumping operations.
Beyond its application in dump trucks, the inherent robustness and design flexibility of this cylinder make it suitable for a broader range of industrial and mobile equipment tasks. Any application requiring a compact, powerful, and reliable linear actuator with a pivotal mounting option would benefit. This could include agricultural machinery for operating gates or implements, industrial material handling systems, specialized off-highway vehicles, or any custom automation requiring precise, manually controlled pneumatic actuation in challenging environments. The ability to withstand external impacts, resist corrosion, and maintain consistent performance in the presence of dirt, dust, and moisture positions this cylinder as a premier choice for professionals who cannot afford downtime due to component failure.
In summary, the Buyers Products Tie Rod Style Cylinder with Clevis Mount, 1.0 Rod, 6 Inch Stroke, and Manual Air control is more than just a component; it is a meticulously engineered solution designed for longevity, performance, and safety. Its enclosed tie rod construction, lightweight yet durable extruded aluminum body, precisely sized bore and stroke, robust piston rod, and versatile clevis mounting system collectively ensure superior functionality. The manual air control mechanism offers straightforward, dependable operation, significantly improving safety and efficiency in critical applications such as dump truck tailgate management. This cylinder represents an intelligent investment for any operation seeking to optimize its equipment performance, enhance operator safety, and minimize maintenance costs through the deployment of high-quality, technically advanced pneumatic actuation systems. Its robust design characteristics, including specialized features "V" and "K," underscore a commitment to delivering a product that excels under the most demanding conditions, providing consistent, reliable actuation cycle after cycle.
