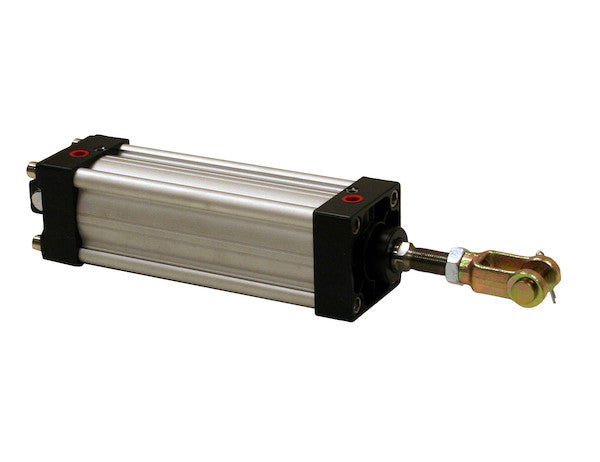

Keep your tailgate operating smoothly with Buyers Products Tie Rod Cylinders. Each cylinder houses and protects an enclosed tie rod in a durable extruded aluminum body. The cylinders are ideal for dump truck operators to engage and disengage tailgate latches from inside their vehicle without having to leave the cab.
Specifications
| Bore | 3.25 |
|---|---|
| Dim A | 17.00 |
| Dim B | 25.00 |
| Features | HM |
| Mount | Hinge |
| Rod Dia | 1 |
| Stroke | 8 |
Advanced Engineering and Operational Excellence: The Buyers Products Tie Rod Style Cylinder
The Buyers Products Tie Rod Style Cylinder with Hinge Mount, featuring a 1.0-inch rod diameter and an 8-inch stroke, represents a pinnacle of hydraulic actuation technology designed for demanding industrial and commercial applications, particularly within the heavy-duty vehicle sector. This detailed exposition delves into the engineering intricacies, material science, operational advantages, and application-specific benefits that position this cylinder as a superior choice for critical functions such as remote tailgate latch actuation on dump trucks. Our commitment to robust design, material integrity, and precision manufacturing ensures unparalleled reliability and extended service life in the harshest operational environments.
Understanding the Tie Rod Cylinder Architecture
At its core, the tie rod style cylinder is renowned for its robust and modular construction. Unlike welded cylinders, which are permanently sealed, tie rod cylinders are assembled using tie rods that extend the full length of the cylinder, connecting the two end caps to the barrel. This fundamental design offers several distinct advantages, primarily ease of maintenance, enhanced structural integrity, and superior pressure containment capabilities. The Buyers Products variant elevates this standard design by employing an innovative "enclosed tie rod" system within a durable extruded aluminum body, a critical differentiator that significantly enhances protection against external damage and environmental degradation.
A hydraulic cylinder's primary function is to convert hydraulic fluid power into linear mechanical force and motion. This is achieved through the interaction of hydraulic pressure with a piston housed within the cylinder barrel. When hydraulic fluid is introduced into one chamber of the cylinder, it exerts pressure on the piston face, causing it to move and, consequently, extend or retract the piston rod. The force generated is a direct product of the hydraulic pressure and the effective surface area of the piston, as per Pascal's principle. The precise control of fluid flow and direction, typically managed by a hydraulic control valve, dictates the speed and direction of the cylinder's movement.
The components of this tie rod cylinder are meticulously engineered:
- Cylinder Barrel: The central structural component, precision-honed internally to ensure smooth piston travel and efficient sealing. The use of extruded aluminum, as specified for this product, provides an optimal balance of strength, lightweight characteristics, and superior corrosion resistance.
- Piston: A precisely machined component that separates the two pressure chambers within the cylinder. Equipped with high-performance seals, the piston ensures minimal internal leakage, maximizing hydraulic efficiency and maintaining consistent force output.
- Piston Rod: The primary output component that transmits the linear force and motion to the application. The 1.0-inch rod diameter of this specific model is a critical specification, chosen to provide excellent tensile and compressive strength while resisting buckling under load.
- End Caps: These components seal the ends of the cylinder barrel and provide mounting points. In a tie rod design, they are secured by the tie rods. They also house the rod bearing and sealing system at the rod end.
- Tie Rods: These high-strength steel rods run parallel to the cylinder barrel, external to the pressure chambers, and connect the end caps. Their function is to clamp the cylinder assembly together, providing the necessary structural integrity to withstand internal hydraulic pressures. In the Buyers Products design, these are uniquely enclosed for enhanced protection.
- Sealing System: A comprehensive array of seals, including piston seals, rod seals, and wiper seals, are critical for preventing external leakage, minimizing internal bypass, and protecting internal components from external contaminants.
The Strategic Advantage of Enclosed Tie Rods and Extruded Aluminum
The designation of an "enclosed tie rod in a durable extruded aluminum body" is a significant engineering enhancement that directly addresses common failure modes in exposed tie rod cylinder designs. In conventional tie rod cylinders, the tie rods are visible and external, making them susceptible to damage from impacts, abrasion, and exposure to corrosive agents such as road salt, dirt, debris, and harsh chemicals prevalent in dump truck operations. By housing and protecting the tie rods within the robust extruded aluminum body, Buyers Products effectively shields these critical structural elements, dramatically improving the cylinder's resilience and operational lifespan.
Extruded Aluminum Body: The selection of extruded aluminum for the cylinder body offers a compelling suite of advantages:
- Corrosion Resistance: Aluminum naturally forms a passive oxide layer, offering excellent resistance to rust and many forms of chemical degradation, which is crucial for equipment operating outdoors in varying weather conditions and potentially corrosive industrial environments.
- High Strength-to-Weight Ratio: Aluminum provides substantial structural strength while being significantly lighter than steel. This characteristic contributes to a reduction in overall vehicle weight, potentially improving fuel efficiency and increasing payload capacity without compromising durability.
- Thermal Conductivity: Aluminum’s superior thermal conductivity aids in dissipating heat generated during hydraulic operation, contributing to stable fluid temperatures and prolonging the life of hydraulic fluid and seals.
- Precision Manufacturing: The extrusion process allows for the creation of complex, consistent profiles with tight tolerances, ensuring dimensional accuracy and a high-quality finish for the cylinder barrel. This precision is vital for optimal piston sealing and smooth operation.
Hinge Mount Configuration: Flexibility and Robustness
The "Hinge Mount" feature of this cylinder is deliberately chosen for applications requiring angular movement and flexibility in attachment. A hinge mount typically involves a clevis or pin eye at one or both ends of the cylinder, allowing for pivotal movement around a fixed pin. This mounting style is exceptionally well-suited for applications where the load path changes angle during the cylinder's stroke, or where perfect linear alignment between the cylinder and its attachment points cannot be guaranteed or maintained. For tailgate latch mechanisms, the hinge mount is ideal as it accommodates the arc of the latching mechanism as it engages and disengages, preventing detrimental side loading on the piston rod and seals.
Key benefits of a hinge mount include:
- Angular Misalignment Compensation: The inherent rotational capability of a hinge mount allows the cylinder to adapt to slight misalignments or dynamic angular changes in the application, preventing stress concentrations that could otherwise lead to premature wear or failure of the cylinder components, particularly the rod and seals.
- Dynamic Load Accommodation: In applications like tailgate latches, which involve dynamic forces and potentially sudden movements, the hinge mount allows the cylinder to move freely with the load, distributing stresses more evenly and reducing shock loads on the cylinder structure.
- Simplified Installation: Hinge mounts often simplify installation by providing clear pivot points, reducing the need for ultra-precise alignment during mounting.
Precision Specifications: 1.0 Inch Rod Diameter and 8 Inch Stroke
The specifications of a 1.0-inch rod diameter and an 8-inch stroke are critical design parameters that dictate the cylinder's performance characteristics and suitability for its intended application.
1.0 Inch Rod Diameter: The piston rod is the component subjected to both tensile and compressive forces during operation.
- Strength and Buckling Resistance: A rod diameter of 1.0 inch provides a substantial cross-sectional area, endowing the rod with excellent resistance to buckling under compressive loads (when the cylinder retracts under load) and high tensile strength when extending. This is particularly important for robust latching mechanisms that may experience significant forces.
- Bearing Surface: A larger rod diameter also provides a greater bearing surface for the rod guide and seals, contributing to increased stability, reduced wear, and extended seal life.
- Material Composition: Typically, hydraulic cylinder rods are manufactured from high-strength steel, often induction hardened and chrome-plated. The chrome plating provides a hard, smooth, corrosion-resistant surface that minimizes friction with rod seals and protects against pitting and damage from environmental exposure, thereby preserving seal integrity and preventing external leakage.
8 Inch Stroke Length: The stroke length defines the maximum linear travel of the piston rod from its fully retracted to its fully extended position.
- Application-Specific Travel: An 8-inch stroke is precisely engineered to provide the optimal range of motion required for the engagement and disengagement of dump truck tailgate latches. This specific length ensures that the latch mechanism can fully open and securely close without unnecessary over-travel, which could waste hydraulic energy or create mechanical stresses.
- Operational Efficiency: By perfectly matching the stroke to the application's needs, the cylinder contributes to efficient system operation, minimizing cycle times for the tailgate function and enhancing overall productivity.
- Compact Design: The relatively short stroke length, combined with the hinge mount, contributes to a compact overall cylinder design, facilitating integration into the often space-constrained environments of vehicle chassis and bodywork.
Operational Mechanics in Dump Truck Tailgate Latch Systems
The application of this Tie Rod Style Cylinder in dump truck tailgate latch systems is a prime example of hydraulic automation enhancing safety, efficiency, and operator comfort. Traditionally, tailgate latches might have required manual intervention, forcing operators to exit the cab, often in hazardous conditions, to engage or disengage the tailgate. This manual operation introduces risks of injury, exposure to inclement weather, and reduces operational efficiency.
By integrating this hydraulic cylinder, dump truck operators can control the tailgate latch remotely from inside the cab. A dedicated hydraulic circuit, typically part of the truck's existing hydraulic system, supplies pressurized fluid to the cylinder. Through a simple control lever or switch in the cab, the operator can direct hydraulic fluid to either extend or retract the cylinder rod.
- Latching Mechanism Engagement: When the cylinder retracts, it pulls on a linkage connected to the tailgate latch, securing the tailgate in its closed and locked position, preventing accidental opening during transit or while maneuvering.
- Latching Mechanism Disengagement: When the cylinder extends, it pushes the linkage, releasing the latch and allowing the tailgate to swing open, facilitating the quick and controlled discharge of material from the dump bed.
- Enhanced Safety: Operators remain safely inside the cab, protected from moving machinery, falling debris, adverse weather, and potential slip-and-fall hazards on uneven terrain.
- Increased Efficiency: The ability to quickly and seamlessly operate the tailgate latch without leaving the vehicle reduces downtime between dumps, thereby improving productivity and cycle times on job sites.
- Reduced Operator Fatigue: Eliminating the need for repeated manual operations lessens physical strain on operators, contributing to a more comfortable and sustainable work environment.
- Reliable Operation: Hydraulic systems provide consistent, powerful, and precise control, ensuring the tailgate latches engage and disengage reliably, even with heavy loads or in challenging conditions.
Sealing Technology and Fluid Compatibility
The effectiveness and longevity of any hydraulic cylinder are heavily reliant on its sealing system. This Buyers Products cylinder employs advanced sealing technologies designed to operate flawlessly under varying pressures, temperatures, and fluid conditions common in mobile hydraulic applications.
- Piston Seals: These internal seals prevent fluid bypass between the cylinder chambers, ensuring maximum hydraulic force is translated into mechanical work. High-performance, low-friction materials like polyurethane or nitrile are often selected for their resilience and compatibility with standard hydraulic fluids.
- Rod Seals: Positioned in the rod end cap, rod seals are critical for preventing external leakage of hydraulic fluid along the piston rod. Their design must balance sealing effectiveness with minimal friction and wear against the polished rod surface.
- Wiper Seals: Located externally to the rod seal, wiper seals, or scrapers, protect the rod seal by preventing the ingress of dirt, dust, moisture, and other contaminants from the external environment into the cylinder. This is particularly vital in gritty construction environments.
Quality Assurance and Durability in Extreme Environments
Buyers Products is synonymous with quality and durability, and this Tie Rod Style Cylinder is no exception. Each cylinder undergoes rigorous testing to ensure it meets stringent performance criteria, including pressure testing, leakage checks, and cycle life evaluations. The design accounts for the harsh realities of dump truck operation, where equipment is subjected to:
- Vibration and Shock: The robust construction, including the enclosed tie rods and hinge mount, is designed to withstand continuous vibration and intermittent shock loads without compromise.
- Temperature Extremes: Materials and seals are selected to perform reliably across a broad range of temperatures, from freezing winters to scorching summers.
- Contaminants: The enclosed tie rods, durable body, and efficient wiper seals offer superior protection against dust, dirt, mud, and water ingress, which are ubiquitous in construction and municipal operations.
- Corrosive Agents: The extruded aluminum body provides inherent corrosion resistance against road salts, chemical spills, and general atmospheric corrosion.
Installation and Maintenance Considerations
Installation of the Buyers Products Tie Rod Style Cylinder is designed to be straightforward, leveraging standard hydraulic connection points and the versatile hinge mount. Proper alignment of the hinge pins and secure fastening are crucial for optimal performance and to prevent undue stress on the cylinder. Integration into an existing hydraulic system typically involves connecting the cylinder's ports to the appropriate lines from a control valve and ensuring adequate hydraulic fluid supply and return paths.
While engineered for minimal maintenance, periodic inspections are recommended:
- Visual Inspection: Check for any signs of external leakage, rod damage, or mounting wear.
- Fluid Quality: Ensure the hydraulic fluid is clean and at the correct level, as contaminated fluid is a leading cause of hydraulic component failure.
- Mounting Integrity: Verify that all mounting pins and fasteners are secure and free from excessive wear.
Conclusion
The Tie Rod Style Cylinder-Hinge Mount-1.0 Rod x 8 Inch Stroke from Buyers Products is more than just a hydraulic component; it is a meticulously engineered solution designed to elevate the performance, safety, and longevity of heavy-duty vehicle operations. Its innovative enclosed tie rod design within a durable extruded aluminum body, combined with the flexible hinge mount and precisely specified rod diameter and stroke, establishes it as a superior choice for remote tailgate latch actuation in demanding dump truck applications. By mitigating operational risks, enhancing efficiency, and delivering unwavering reliability in harsh environments, this cylinder underscores a commitment to engineering excellence and provides significant long-term value for fleet managers and operators who demand the highest standards from their equipment.
