TGC32508VSPK - Tie Rod Style Cylinder Kit-Clevis Mount-1.0 Rod 8 Inch Stroke-with BAV020 Valve

Keep your tailgate operating smoothly with Buyers Products Tie Rod Cylinder Kit. Each cylinder houses and protects an enclosed tie rod in a durable extruded aluminum body. Kits include everything to install the tie rod cylinder, including air valve and tubing. The cylinders are ideal for dump truck operators to engage and disengage tailgate latches from inside their vehicle without having to leave the cab.

Specifications

Advanced Technical Overview: Tie Rod Style Cylinder Kit with BAV020 Valve for Industrial Applications

The Buyers Products Tie Rod Style Cylinder Kit, featuring a Clevis Mount, 1.0-inch Rod, 8-inch Stroke, and integrated BAV020 Valve, represents a precision-engineered pneumatic actuation solution designed for robust performance in demanding industrial and mobile applications. This comprehensive kit provides a fully integrated system for remote actuation, specifically optimized for critical functions such as the automated engagement and disengagement of dump truck tailgate latches. The selection of components and their integrated design underscore a commitment to reliability, operator safety, and operational efficiency within challenging work environments.

Understanding the Tie Rod Style Cylinder: Design and Advantages

At the core of this actuation system is the tie rod style pneumatic cylinder. Unlike welded body cylinders, tie rod cylinders are characterized by their construction, where the cylinder barrel, front head, and rear head are secured together by external tie rods that run the length of the cylinder. This design offers several distinct advantages critical for industrial applications:

• Robustness and Durability: The tie rod construction inherently provides superior structural integrity, distributing operational stresses evenly across the cylinder assembly. This design enhances resistance to bending moments and external impacts, contributing to an extended service life in harsh conditions.
• Maintainability and Serviceability: A significant benefit of the tie rod design is its modularity. Should any component – such as seals, piston, or rod – require maintenance or replacement, the cylinder can be readily disassembled by removing the tie rod nuts. This modularity reduces downtime and simplifies field repairs, offering a more cost-effective long-term solution compared to non-repairable welded cylinders.
• Customization and Configuration Flexibility: While this kit comes pre-configured, the tie rod design allows for greater flexibility in manufacturing, enabling various mounting styles, porting options, and rod configurations to be integrated efficiently.

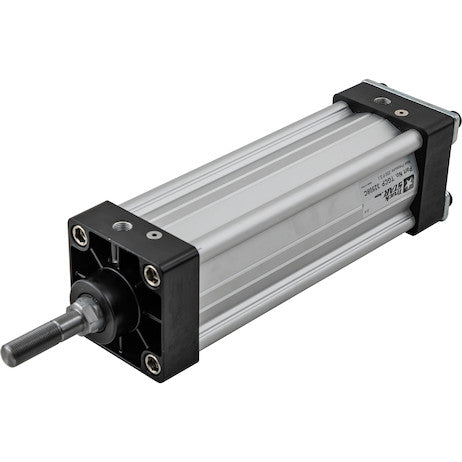

Component Analysis: The Extruded Aluminum Body

The cylinder’s main body is constructed from durable extruded aluminum. The choice of aluminum as the primary material for the cylinder barrel offers several technical advantages:

• Corrosion Resistance: Aluminum naturally forms a protective oxide layer, providing excellent resistance to corrosion, particularly important in outdoor applications where exposure to moisture, road salts, and various environmental contaminants is common. This significantly extends the cylinder's operational life and maintains its aesthetic integrity.
• Lightweight: Aluminum is substantially lighter than steel, which is advantageous in mobile applications such as dump trucks where overall vehicle weight impacts fuel efficiency and payload capacity. Reducing the weight of auxiliary components contributes to higher operational economy.
• Thermal Properties: Aluminum exhibits good thermal conductivity, aiding in the dissipation of any heat generated during rapid cycling, although pneumatic cylinders typically generate less heat than hydraulic counterparts.
• Precision Manufacturing: The extrusion process allows for the creation of precise and consistent internal bore dimensions, crucial for optimal piston sealing and smooth, reliable operation throughout the cylinder's stroke.

The Enclosed Tie Rods

The description highlights "enclosed tie rods," indicating that the tie rods, while structurally external to the bore, are protected within the outer profile of the extruded aluminum body. This design refinement prevents external damage to the tie rods from impacts, debris, or environmental exposure, further enhancing the cylinder's durability and ensuring the long-term integrity of the cylinder assembly. The protection of these critical fastening elements directly contributes to the cylinder’s overall reliability in rugged operating environments.

Rod Diameter and Stroke: Performance Parameters

The specifications detail a 1.0-inch rod diameter and an 8-inch stroke, which are crucial parameters defining the cylinder's performance envelope:

• 1.0-inch Rod Diameter: The rod diameter is a critical factor in determining the cylinder's resistance to buckling and its load-bearing capacity. A 1.0-inch diameter rod, typically manufactured from hard chrome-plated steel, provides substantial rigidity and tensile strength for the specified applications. The chrome plating enhances surface hardness, corrosion resistance, and reduces friction, contributing to the longevity of rod seals and minimizing wear. For an 8-inch stroke, a 1.0-inch rod offers an excellent balance between strength and footprint, ensuring reliable extension and retraction even under cantilevered loads.
• 8-inch Stroke: The 8-inch stroke defines the maximum linear travel of the piston rod. This specific stroke length is engineered to provide sufficient displacement for the full range of motion required in applications like tailgate latch engagement and disengagement. It ensures that the latch mechanism can be fully actuated, providing clear, decisive action without excessive travel or inefficient use of compressed air.

Bore Size and Force Generation

With a 3.25-inch bore, this cylinder is capable of generating significant force, which is directly proportional to the bore area and the pneumatic system pressure. The theoretical extend force (push) can be calculated by multiplying the effective piston area (bore area) by the system pressure. The retract force (pull) is calculated by multiplying the difference between the bore area and the rod area by the system pressure. This bore size is adequately dimensioned to provide the necessary force to operate heavy-duty tailgate latch mechanisms reliably, overcoming any resistance from debris, misalignment, or mechanical friction.

Sealing Technology

Within any pneumatic cylinder, the integrity of the sealing system is paramount for efficient operation and prevention of air leakage. High-quality seals, typically made from materials such as Nitrile (Buna-N), Polyurethane, or PTFE, are strategically placed at the piston (for sealing against the bore) and at the rod gland (for sealing around the rod). These seals are designed to minimize friction while effectively containing compressed air, ensuring consistent force output and preventing ingress of external contaminants. The durability of these seals is critical for the cylinder's overall lifespan and performance, especially in environments exposed to dust, moisture, and temperature fluctuations.

Clevis Mount: The Foundation of Articulated Motion

The designation of a "Clevis Mount" specifies a particular method of attaching the cylinder to a machine or structure, designed to facilitate pivotal motion. A clevis mount, typically located at the cap end or rod end (or both, depending on the application), consists of a 'U' shaped bracket with holes through which a pin passes, connecting the cylinder to a corresponding lug or bracket on the equipment. Key advantages of the clevis mount include:

• Pivoting Capability: The primary benefit is the ability of the cylinder to pivot freely as it extends and retracts. This is crucial for applications where the load path changes angle during the stroke, such as tailgate mechanisms, allowing for dynamic alignment and reducing lateral stress on the cylinder rod and mounting points.
• Tolerance for Misalignment: Clevis mounts can accommodate minor degrees of misalignment during installation and operation, which simplifies setup and reduces the risk of premature wear on cylinder components caused by binding.
• Robust Connection: The pin-and-clevis arrangement provides a strong, secure connection capable of handling significant tensile and compressive loads, making it suitable for heavy-duty industrial environments.
• Ease of Installation and Removal: The design allows for relatively straightforward installation and removal using a single pin, which facilitates maintenance and component replacement.

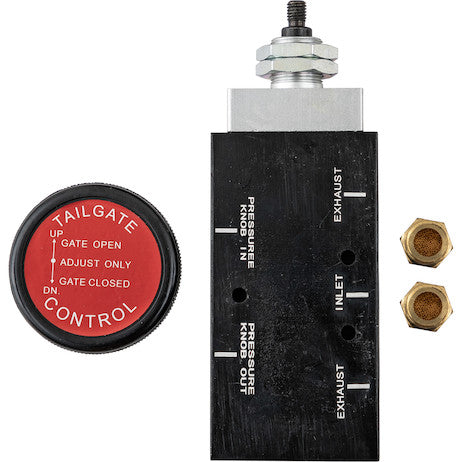

The BAV020 Valve: Precision Pneumatic Control

The inclusion of the BAV020 valve is integral to the kit's functionality, transforming the mechanical force of the cylinder into a remotely controllable system. The BAV020 valve is a pneumatic directional control valve, specifically engineered to manage the flow of compressed air to the cylinder, thereby dictating its extension and retraction. While the exact technical specifications of the BAV020 might vary, its function is fundamental to the automated operation:

• Directional Control: The valve acts as a gatekeeper, directing compressed air from the vehicle's onboard air supply to either the cap end or the rod end of the cylinder. By switching the air path, the valve causes the piston to move in the desired direction (extend or retract).
• Remote Operation: The BAV020 enables operators to actuate the tailgate mechanism from within the vehicle cab. This significantly enhances safety by removing the need for the operator to exit the cab into potentially hazardous conditions (e.g., traffic, inclement weather, uneven terrain) to manually operate the tailgate.
• Efficiency and Productivity: Remote control streamlines operations, reducing the time required for tailgate cycling and improving overall job site efficiency. Operators can remain focused on driving and other tasks, minimizing interruptions.
• Robust Construction: Pneumatic valves designed for heavy-duty vehicle applications are typically built to withstand vibration, temperature extremes, and contaminant exposure inherent in such environments. They feature durable internal components and robust housings to ensure reliable operation over long periods.
• Integration into Vehicle Air Systems: The BAV020 is designed for seamless integration with standard vehicle compressed air systems, commonly found in dump trucks, allowing it to leverage existing infrastructure for its power source.

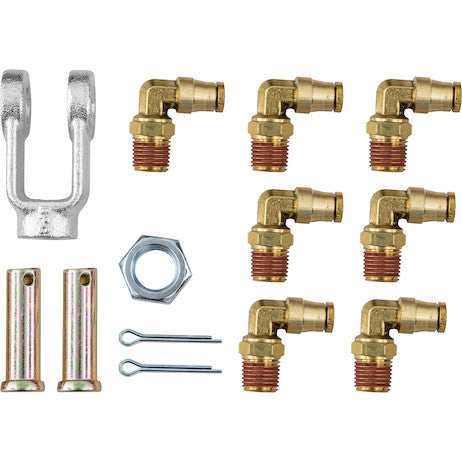

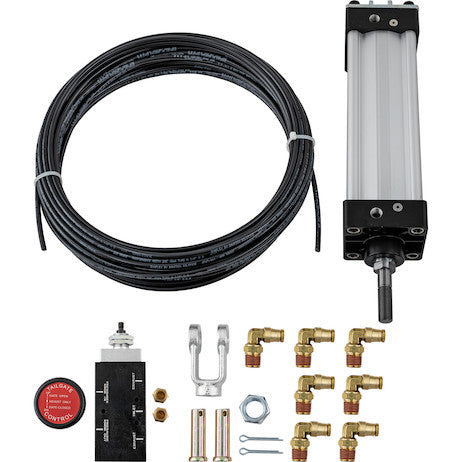

Comprehensive Kit Inclusion: Simplified Installation and Operation

The statement "Kits include everything to install the tie rod cylinder, including air valve and tubing" highlights a significant value proposition. A complete kit ensures that all necessary components for a functional pneumatic system are provided, eliminating the need for separate sourcing and ensuring compatibility. This typically includes:

• Pneumatic Tubing: High-pressure pneumatic tubing, often made from nylon or polyurethane, is supplied to connect the air source to the valve and the valve to the cylinder. This tubing is selected for its pressure rating, flexibility, and resistance to environmental factors. Proper routing and secure fastening of tubing are essential to prevent damage and ensure leak-free operation.
• Fittings: A variety of pneumatic fittings (e.g., push-to-connect, compression fittings) are included to create secure, airtight connections between the tubing, valve, and cylinder. These fittings are designed for quick assembly and reliable performance under dynamic vehicle conditions.
• Mounting Hardware: While not explicitly detailed beyond the clevis mount, a complete kit would typically include the necessary pins, clips, nuts, and bolts to secure the cylinder firmly to the application, ensuring a safe and stable installation.
• Instructional Material: Often, comprehensive installation guides are part of the kit, providing step-by-step instructions to facilitate correct and efficient setup.

Primary Application: Dump Truck Tailgate Actuation

The designated application for dump truck tailgate latch engagement and disengagement perfectly illustrates the kit's functional benefits:

• Enhanced Operator Safety: This is arguably the most critical advantage. Operators no longer need to exit the cab to manually release or secure the tailgate. This mitigates risks associated with slips, falls, traffic hazards, moving machinery, and exposure to adverse weather conditions (rain, snow, extreme heat/cold). It significantly reduces the potential for workplace injuries.
• Increased Operational Efficiency: Remote control allows for quicker cycle times during loading and unloading. The operator can release the tailgate as the truck approaches the dump site and secure it immediately after dumping, minimizing delays and improving overall productivity. This is especially beneficial in high-volume operations.
• Reduced Operator Fatigue: Eliminating the repetitive manual effort of operating a tailgate latch contributes to less physical strain on the operator, leading to increased comfort and sustained attentiveness over long shifts.
• Reliable Operation in Harsh Environments: Dump trucks operate in some of the most challenging conditions. The durable construction of the aluminum cylinder, protected tie rods, and robust valve ensures consistent performance despite exposure to dust, dirt, moisture, vibration, and temperature fluctuations common on construction sites and in aggregate hauling.
• Precise Control: The pneumatic system provides precise, controlled movement of the tailgate latch, preventing sudden movements that could damage the tailgate or its components.

Broader Industrial and Mobile Applications

While the focus is on dump truck tailgates, the fundamental design principles of this tie rod style cylinder kit lend themselves to a variety of other industrial and mobile pneumatic actuation tasks:

• Material Handling Equipment: Actuating gates on hoppers, diverters on conveyor systems, or clamping mechanisms on specialized handling devices.
• Agricultural Machinery: Controlling various implements, gates, or chute positions on farming equipment.
• Construction Equipment: Operating smaller locking mechanisms, safety gates, or specific articulation points on compact machinery.
• Automated Systems: Integration into light industrial automation for tasks requiring linear push/pull motion with a controlled stroke.

The versatility stems from its robust design, standard bore/stroke/rod dimensions, and the universal nature of pneumatic actuation, making it a reliable choice wherever controlled linear motion is required.

Long-Term Performance, Maintenance, and Durability

The design and material selection of the Buyers Products Tie Rod Cylinder Kit are geared towards long-term reliability and minimal maintenance requirements. The corrosion-resistant aluminum body, hardened and chrome-plated rod, and high-quality internal seals contribute to an extended operational life cycle. Regular maintenance for pneumatic systems typically involves:

• Air Quality: Ensuring a clean, dry, and optionally lubricated air supply to prevent corrosion and wear of internal components and seals. Contaminants like moisture and particulates are detrimental to pneumatic system longevity.
• Leak Detection: Periodically checking for air leaks in tubing and fittings to maintain system efficiency and prevent performance degradation.
• Seal Inspection: While designed for durability, seals are wear components. Regular inspection and replacement of rod and piston seals, as required, will maintain peak performance and extend the cylinder's service life.
• Mounting Integrity: Verifying the tightness and security of mounting points, especially the clevis pin and associated hardware, to ensure structural stability and prevent premature wear.

The "V, SPK" features mentioned in the specifications likely refer to specific valve configurations or seal types, indicating specialized components chosen for their performance characteristics in the intended environment. For instance, 'V' might denote a specific valve characteristic or a Viton seal for high-temperature applications, while 'SPK' could refer to a specialized seal kit or component package, further reinforcing the product's tailored design for robust industrial use.

Conclusion: A Strategic Investment in Efficiency and Safety

The Buyers Products Tie Rod Style Cylinder Kit with Clevis Mount, 1.0-inch Rod, 8-inch Stroke, and BAV020 Valve represents a meticulously engineered solution for remote pneumatic actuation. By integrating a durable, serviceable tie rod cylinder with a precise directional control valve and all necessary installation components, this kit provides a complete, high-performance system. Its specific design parameters – including the 3.25-inch bore, 8-inch stroke, and 1.0-inch rod diameter – are optimized for applications demanding reliable force generation and controlled linear motion, particularly in safety-critical roles such as dump truck tailgate operations. Investing in this system translates directly into enhanced operator safety, significant improvements in operational efficiency, and a reduction in long-term maintenance costs due to its robust construction and repairable design. This kit stands as a testament to advanced pneumatic engineering, delivering superior functionality and value in the most challenging industrial environments.
