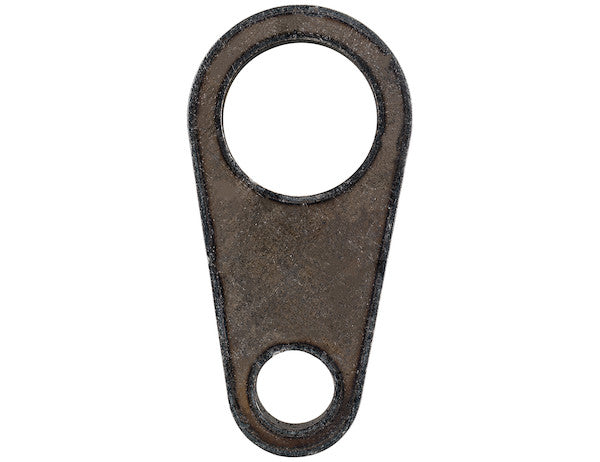

Buyers Products Tailgate Linkage Connecting Plate welds to the dump body tailgate and helps connect the tailgate release lever to the lower tailgate hinge. It is stamped from a 1/2 in. steel plate and available in several sizes.

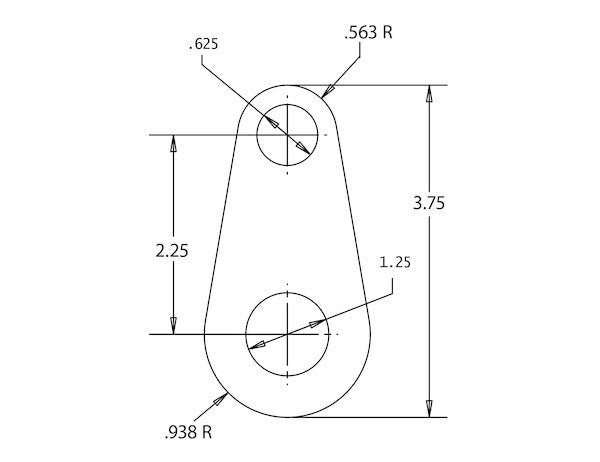

Specifications
| A | 5/8 |
|---|---|
| B | 1-1/4 |
| Material | Carbon Steel |
| Mounting Holes Ctr to Ctr (in.) | 2-1/4 |
| Overall Length (in.) | 3-3/4 |
| Plate Thickness | 1/2 |
| Use With | Tailgate Latch Assembly |
Advanced Engineering and Performance of the Tailgate Linkage Connecting Plate
The Tailgate Linkage Connecting Plate, specifically designed with 5/8-inch and 1-1/4-inch diameter holes, represents a critical component in the operational integrity and safety of heavy-duty dump body tailgates. Manufactured by Buyers Products, this essential part is engineered to facilitate the precise and robust connection between the tailgate release lever and the lower tailgate hinge mechanism. Its design, material selection, and manufacturing process are all meticulously considered to ensure optimal performance, durability, and reliability in the most demanding industrial and commercial applications.
At its core, this connecting plate serves as a crucial mechanical interface. In dump truck operations, the tailgate must remain securely latched during transit to prevent spillage of materials, yet it must be capable of rapid and complete release when dumping. This dual requirement necessitates a linkage system that is both incredibly strong and highly responsive. The connecting plate, welded directly to the dump body tailgate, translates the force and motion from the release lever to the lower hinge points, initiating the unlatching sequence. Without a precisely manufactured and structurally sound connecting plate, the entire tailgate operation is compromised, leading to potential operational inefficiencies, material loss, and significant safety hazards.
Material Science and Manufacturing Excellence: Carbon Steel Durability
The selection of material for such a high-stress component is paramount. This Tailgate Linkage Connecting Plate is fabricated from high-grade carbon steel, a material renowned for its exceptional mechanical properties suitable for heavy-duty applications. Carbon steel offers a superior balance of tensile strength, yield strength, and ductility, which are critical for parts subjected to dynamic loads, impacts, and abrasive environments inherent in dump truck operations. The specific grade of carbon steel chosen ensures that the plate can withstand the continuous forces exerted during both the opening and closing cycles of a heavily loaded tailgate, as well as the shock loads experienced during transit over uneven terrain.
The plate’s robust 1/2-inch thickness is a direct testament to its engineered durability. This substantial gauge provides ample cross-sectional area to resist bending, shearing, and fatigue cracking. In mechanical engineering, component thickness directly correlates with its ability to distribute and absorb stresses. For a component acting as a linkage pivot point, a thicker plate reduces localized stress concentrations, prolonging the service life of the plate itself and minimizing wear on associated pins and bushings. This prevents premature failure, which could otherwise lead to costly downtime and maintenance.
Furthermore, the manufacturing process—stamping—is strategically employed for several reasons. Stamping from a 1/2-inch steel plate ensures uniformity in dimensions and material properties across all units, critical for consistent performance and interchangeability. This process also work-hardens the steel, enhancing its surface hardness and fatigue resistance. Precision stamping allows for the creation of complex shapes with high dimensional accuracy, guaranteeing that the critical hole diameters and center-to-center distances are maintained within tight tolerances. This precision is vital for proper fitment with other linkage components, minimizing play and maximizing the efficiency of force transmission.
The inherent weldability of carbon steel is another decisive factor. As the plate is designed to be welded directly to the dump body tailgate, its material composition must be amenable to strong and reliable metallurgical bonds. Carbon steel allows for various standard welding techniques to be employed, ensuring that once installed, the connecting plate becomes an integral, load-bearing part of the tailgate structure. Proper welding procedures, executed by qualified personnel, will result in a joint that is stronger than the parent material, capable of withstanding the substantial shear and tensile forces exerted during operation. This permanent attachment method ensures maximum structural integrity and eliminates the potential for loosening or detachment that might occur with bolted connections in high-vibration environments.
Precision Engineering: Analyzing Key Specifications
The detailed specifications of this Tailgate Linkage Connecting Plate highlight the thoughtful engineering behind its design, ensuring optimal integration and performance within the larger tailgate assembly. Each dimension and characteristic serves a specific purpose:
Hole Diameters: 5/8 inch (A) and 1-1/4 inch (B)
The presence of two distinct hole diameters, 5/8 inch and 1-1/4 inch, is a fundamental aspect of this plate's design, indicating its versatility and specific functional roles within the linkage system. The smaller 5/8-inch diameter hole (A) is typically engineered to accommodate a standard linkage pin or bolt connecting to the tailgate release lever. This dimension is carefully chosen to provide a snug fit for common lever rod ends, minimizing slop and ensuring precise translation of the lever’s motion. A tight fit at this connection point is crucial for responsive and reliable tailgate operation, preventing excessive wear on the pin and hole that could lead to inefficient release or premature failure. This specific diameter is also indicative of the anticipated loads and shear forces that this primary connection point will endure.
The larger 1-1/4-inch diameter hole (B) is designed to interface with the lower tailgate hinge mechanism, often involving a larger diameter pin or a specific bushing assembly that pivots the tailgate. This larger diameter provides increased surface area for load distribution, which is essential for supporting the considerable weight of the tailgate, especially when loaded with materials. The larger diameter also allows for robust pivot points that can withstand the high bending moments and shear stresses experienced during the tailgate’s opening and closing. Furthermore, a larger diameter pin or bushing assembly can better resist galling and wear over extended periods of repeated motion. The combination of these two specific hole sizes ensures compatibility with a broad range of standard industrial tailgate hardware while optimizing the mechanical advantage and durability of the entire linkage system.
Mounting Holes Center to Center: 2-1/4 inches
While this particular plate is designed for welding, the specification of "Mounting Holes Ctr to Ctr (in.): 2-1/4" implies a potential for alternative mounting configurations, or more likely, defines the spacing between the centers of the two critical functional holes (5/8" and 1-1/4") for proper alignment with the larger tailgate assembly. This precise 2-1/4-inch center-to-center distance is critical for ensuring correct kinematic alignment within the tailgate’s mechanical system. Accurate spacing guarantees that the release lever rod and the lower hinge pin can connect without undue stress or misalignment, which could otherwise lead to binding, excessive friction, or premature wear on components. This dimension directly influences the geometry and leverage ratios of the entire release mechanism, ensuring smooth and efficient operation. Maintaining strict tolerances on this dimension is a hallmark of precision manufacturing, facilitating ease of installation and guaranteeing long-term operational integrity.
Overall Length: 3-3/4 inches
The overall length of 3-3/4 inches is not merely an arbitrary dimension but a calculated parameter that contributes to the mechanical advantage and structural stability of the connecting plate. This length provides the necessary lever arm for the forces transmitted through the linkage. It also ensures adequate material around the critical holes to prevent tear-out or deformation under load. An appropriately sized plate minimizes stress concentrations and allows for effective distribution of forces across its 1/2-inch thickness. This dimension also plays a role in the aesthetics and packaging of the component within the confined space of a dump body tailgate assembly, ensuring it integrates seamlessly without interfering with other structural or functional elements.
Plate Thickness: 1/2 inch
As previously emphasized, the 1/2-inch plate thickness is a cornerstone of this component's durability. In applications involving heavy materials and dynamic stresses, a thinner plate would be susceptible to bending, warping, and fatigue failure. This substantial thickness provides a high section modulus, enhancing the plate's resistance to flexural stresses and torsional loads. It is engineered to withstand the shear forces generated during the initial actuation of the release lever and the subsequent pivot of the tailgate. The material volume afforded by this thickness also contributes to the plate's capacity to absorb energy from impacts and vibrations without deforming or fracturing, thereby ensuring a prolonged operational lifespan in harsh environments.
Use With: Tailgate Latch Assembly
This specification clearly defines the contextual application of the connecting plate: it is an integral part of the broader tailgate latch assembly. This means it is designed to work in conjunction with other components such as the primary latch mechanism, connecting rods, pins, bushings, and the release lever itself. Understanding this systemic relationship is crucial for both installers and end-users. The plate is not a standalone component but a precisely engineered element within a complex mechanical system. Its performance is directly tied to the proper functioning and design of the entire latch assembly, highlighting the importance of using compatible and high-quality mating parts for optimal system performance and safety.
Application in Demanding Environments: Dump Body Tailgates
The environment in which this Tailgate Linkage Connecting Plate operates is one of the most demanding in the heavy equipment sector. Dump body tailgates are subjected to extreme conditions, including:
- High Impact Loads: During loading, materials such as rock, gravel, sand, and asphalt can impact the tailgate and its components, transmitting shock loads throughout the structure.
- Abrasive Wear: The constant movement of materials against the tailgate causes significant abrasive wear, requiring components to be made from hard-wearing materials.
- Corrosion: Exposure to moisture, road salts, chemicals, and various aggregate materials necessitates corrosion-resistant materials or coatings to prevent degradation.
- Vibration and Fatigue: Continuous operation over rough terrain induces high-frequency vibrations and cyclic loading, which can lead to material fatigue and structural failure if components are not adequately designed.
- Extreme Temperatures: Components must perform reliably across a wide range of temperatures, from freezing winters to scorching summers.
Given these challenges, the design and material choice of the Buyers Products Tailgate Linkage Connecting Plate are particularly appropriate. The carbon steel construction, coupled with its substantial 1/2-inch thickness and precise stamping, provides the necessary resilience to withstand these harsh conditions, ensuring long-term operational integrity and minimizing the need for frequent replacements or repairs. The ability to weld this component securely onto the tailgate further enhances its resistance to vibrational loosening and ensures a robust connection that can endure the dynamic forces encountered in daily operations.
Safety and Operational Efficiency
The functional reliability of the tailgate linkage system, facilitated by this connecting plate, directly impacts both operational efficiency and safety. A malfunctioning tailgate can lead to:
- Material Loss: Accidental opening during transit results in the loss of valuable cargo, increased operational costs, and potential environmental hazards.
- Downtime: Component failure necessitates immediate repairs, leading to significant vehicle downtime and lost productivity.
- Safety Hazards: An unsecured tailgate poses a severe risk to other vehicles, pedestrians, and operators. Accidental release can cause injuries or fatalities due to falling debris or sudden changes in vehicle stability.
By ensuring a robust and reliable connection between the release lever and the lower hinge, this connecting plate plays a critical role in preventing these adverse outcomes. Its precise engineering ensures that the tailgate remains securely latched until intentionally released, thereby protecting cargo, personnel, and the public. The responsiveness of the linkage, enabled by minimal play in the connections, also contributes to faster and more efficient dumping cycles, enhancing overall operational productivity.
Installation and Maintenance Considerations
While the product is designed for durability, proper installation is paramount to achieving its intended lifespan and performance. Welding should be performed by certified professionals adhering to industry best practices and specific welding procedures for carbon steel. Appropriate pre-heating and post-weld treatments may be necessary depending on the carbon content and thickness of the tailgate material to ensure a strong, ductile weld joint free from defects. Regular inspection of the weld joint and the connecting plate itself for signs of wear, deformation, or corrosion is recommended as part of a comprehensive preventative maintenance program. Although carbon steel is robust, a protective coating or paint application after welding can further enhance its corrosion resistance in severe environments, extending its aesthetic and functional life.
Conclusion: A Foundation of Reliability
The Tailgate Linkage Connecting Plate with its 5/8-inch and 1-1/4-inch diameter holes from Buyers Products is more than just a piece of metal; it is a precisely engineered component that underpins the reliability and safety of dump body operations. Its robust carbon steel construction, substantial 1/2-inch thickness, and meticulous manufacturing through stamping are all deliberate choices aimed at maximizing its structural integrity and longevity. Designed to withstand the arduous conditions of heavy-duty applications, this connecting plate ensures a dependable link within the tailgate release mechanism, contributing to efficient material handling, reduced operational risks, and overall fleet reliability. For professionals in the transportation, construction, and aggregate industries, investing in components of this caliber is a commitment to operational excellence and uncompromising safety standards, minimizing downtime and maximizing productivity over the long term.
