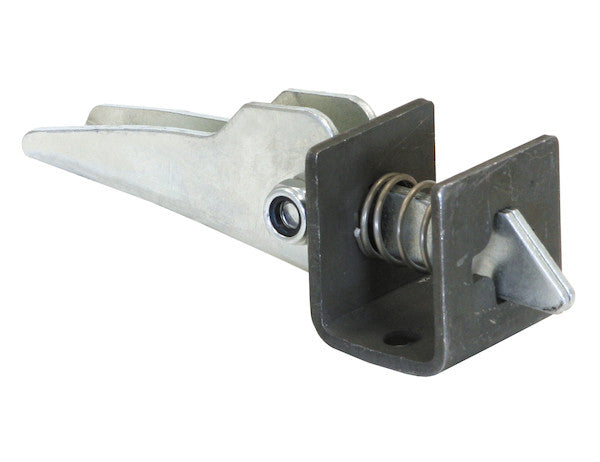

Buyers Products Tipper Latch is ideal for tilt bed utility trailers, snowmobile trailers, and boat trailers. It comes already assembled and is constructed from zinc-plated steel for added corrosion resistance. The latch is spring-loaded with a hold-open feature. The plunger retracts into housing when the handle is lifted to 90??.
Specifications
| Bolt Dia. (in.) | 0.75 |
|---|---|
| Bolt Finish | Zinc Plated |
| Bolt Height | 1.14 |
| Bolt Length (in.) | 1.28 |
| Bolt Material | Carbon Steel |
| Handle Finish | Zinc Plated |
| Handle Length | 4.50 |
| Handle Material | Carbon Steel |
| Housing Finish | Plain |
| Housing Height (in.) | 2.25 |
| Housing Length (in.) | 1.94 |
| Housing Material | Carbon Steel |
| Housing Width (in.) | 2.00 |
| Keeper (y/n) | No |
| Latch Style | Spring Latch |
| Mount Type | Weld-On |
Advanced Technical Overview: Buyers Products Tipper Latch - Zinc Plated
The Buyers Products Tipper Latch, a meticulously engineered securing mechanism, represents a robust solution for demanding trailer applications requiring reliable and durable tilt-bed functionality. This detailed technical exposition will delve into the design, material science, operational mechanics, and application benefits of this zinc-plated tipper latch, elucidating its suitability for severe-duty environments, including those encountered by utility, snowmobile, and boat trailers.
Precision Engineering and Material Selection
At the core of the Tipper Latch's exceptional performance lies a judicious selection of materials and precise manufacturing processes. The primary structural components, including the bolt, handle, and housing, are fabricated from high-grade carbon steel. Carbon steel is chosen for its superior mechanical properties, specifically its high tensile strength, yield strength, and inherent toughness, which are critical for components subjected to dynamic loads, vibrations, and impact forces typical in trailer operations. This material choice ensures the latch maintains structural integrity and operational reliability over an extended service life.
To augment the inherent strength of carbon steel, key functional components – specifically the bolt and handle – undergo a professional zinc plating process. Zinc plating, or electrogalvanization, involves depositing a thin layer of zinc onto the surface of the steel through an electrochemical process. This coating serves as a sacrificial layer, providing galvanic corrosion protection. In the presence of an electrolyte (such as moisture), zinc, being more electrochemically active than steel, corrodes preferentially, thereby protecting the underlying carbon steel substrate from rust and oxidation. This enhanced corrosion resistance is paramount for trailer components, which are frequently exposed to harsh environmental conditions, including road salts, moisture, UV radiation, and abrasive debris. The zinc-plated finish on the bolt and handle not only extends their functional lifespan but also maintains their aesthetic integrity, mitigating the need for frequent replacement or intensive maintenance. While the housing is specified with a "Plain" finish, implying raw or minimally treated carbon steel, its robustness ensures structural stability. For applications in highly corrosive environments, users may consider supplementary protective coatings for the housing post-installation, or leverage its weld-on nature to integrate it seamlessly into a larger finished assembly that will receive its own comprehensive protective treatment.
Operational Mechanics: Spring-Loaded with Hold-Open Feature
The Tipper Latch is engineered as a spring-loaded mechanism, a design choice that confers significant operational advantages. The spring-loaded plunger ensures immediate and positive engagement upon contact with the corresponding strike point on the trailer frame. This automatic engagement capability eliminates the need for manual locking procedures, enhancing operational efficiency and reducing the potential for human error in securing the trailer bed. The constant spring tension also helps to maintain a firm, vibration-resistant connection, preventing inadvertent disengagement during transit, even over uneven terrain.
A distinctive and highly beneficial feature of this latch is its integrated hold-open functionality. This is actuated when the handle is lifted to a 90-degree position relative to the housing. Upon reaching this pivotal point, the plunger retracts fully into the housing and is held in this retracted state. This feature is particularly valuable during loading and unloading operations, as it allows the trailer bed to be repeatedly tilted and manipulated without the latch automatically re-engaging. This hands-free operation enhances safety, streamlines workflow, and prevents potential damage to the latch mechanism or the trailer structure that could result from accidental re-engagement during dynamic movements. Once the handle is returned to its operational position, the spring mechanism re-engposes the plunger, ready for immediate locking.
Detailed Dimensional Analysis and Ergonomics
The specifications of the Tipper Latch reflect a considered balance between strength, compact design, and user-friendly operation:
- Bolt (Plunger) Dimensions: The bolt, constructed from carbon steel and zinc-plated for durability, features a diameter of 0.75 inches, a height of 1.14 inches, and an effective length of 1.28 inches. The substantial 0.75-inch diameter ensures significant shear strength, critical for withstanding the forces exerted on a secured trailer bed. The 1.28-inch length provides ample engagement depth with the mating strike component, guaranteeing a secure lock and minimizing the risk of dislodgement. The 1.14-inch height ensures sufficient clearance and travel within the housing.
- Handle Dimensions: The carbon steel handle, also zinc-plated, measures 4.50 inches in length. This ergonomic length is designed to provide sufficient leverage for effortless operation, even when the latch is under tension. The zinc-plated finish on the handle not only contributes to its corrosion resistance but also offers a smooth, tactile surface for comfortable manual manipulation.
- Housing Dimensions: The carbon steel housing, with its "Plain" finish, presents a compact profile, measuring 2.25 inches in height, 1.94 inches in length, and 2.00 inches in width. This compact footprint facilitates easy integration into various trailer frame designs without requiring extensive modification or occupying excessive space. The robust carbon steel construction of the housing provides a strong enclosure for the spring mechanism and the plunger, protecting internal components from external damage and ensuring reliable operation.
Application Versatility and Weld-On Mounting
The Buyers Products Tipper Latch is explicitly designed for a range of trailer types that benefit from tilt-bed functionality, including utility trailers, snowmobile trailers, and boat trailers. These applications inherently involve frequent loading and unloading cycles, often necessitating the tilting of the trailer bed. The latch's robust construction and corrosion resistance make it particularly well-suited for:
- Tilt Bed Utility Trailers: These trailers are used for transporting a diverse array of equipment, from lawnmowers to construction materials. The tipper latch ensures quick and secure locking of the bed in its transport position, and effortless unlocking for tilting to facilitate loading via ramps.
- Snowmobile Trailers: Exposure to snow, ice, road salt, and extreme cold demands components with superior corrosion resistance and reliable mechanical function. The zinc plating and robust spring mechanism ensure the latch performs optimally even in frigid, corrosive environments.
- Boat Trailers: Constant exposure to fresh or saltwater, humidity, and varying temperatures makes corrosion a primary concern. The zinc-plated bolt and handle are specifically designed to withstand these marine and coastal conditions, preserving the latch's integrity and functionality.
The "Weld-On" mount type is a critical design specification for this Tipper Latch. Weld-on installation offers several distinct advantages over traditional bolt-on methods:
- Superior Structural Integrity: Welding creates a permanent, monolithic bond between the latch housing and the trailer frame, effectively making the latch an integral part of the trailer's structure. This eliminates potential points of failure associated with fasteners, such as loosening due to vibration, shear stress on bolts, or fatigue in bolt holes.
- Maximized Load Bearing: A properly executed weld joint distributes stress over a larger area, allowing the latch to withstand greater forces and dynamic loads without deformation or detachment. This is particularly important for tilt-bed applications where significant forces can be exerted on the latch during tilting operations or accidental impacts.
- Enhanced Anti-Theft Security: Being permanently welded, the latch is inherently more resistant to unauthorized removal compared to bolted alternatives, adding an extra layer of security for valuable cargo or equipment.
- Aesthetic Integration: Weld-on components often allow for a cleaner, more integrated aesthetic, as there are no visible bolt heads or fasteners. This can contribute to the overall professional appearance of the trailer.
Installation via welding requires qualified personnel and adherence to appropriate welding procedures to ensure the structural integrity of both the latch and the trailer frame. Proper surface preparation, selection of welding consumables, and post-weld inspection are essential for maximizing the benefits of this robust mounting method.
Absence of a Keeper and Simplified Design
The specification "Keeper (y/n): No" indicates that this Tipper Latch is designed to engage directly with a dedicated strike plate or an integrated receiving mechanism on the trailer's mating surface. This design choice often simplifies installation and reduces the number of components required for a complete locking system. Eliminating a separate keeper assembly can lead to a more compact, potentially more robust solution, as the primary engagement relies solely on the strength of the latch bolt and the receiving surface of the trailer itself. This streamlined approach minimizes potential points of wear and simplifies maintenance.
Durability, Reliability, and Long-Term Value
The Buyers Products Tipper Latch embodies a commitment to durability and reliability. The combination of carbon steel construction, strategic zinc plating on critical components, and a robust spring-loaded mechanism ensures that this latch will perform consistently under the rigorous conditions of trailer operation. Its resistance to corrosion, wear, and mechanical fatigue translates into a longer service life, reduced maintenance costs, and enhanced safety for trailer operators. The pre-assembled nature of the latch further streamlines the installation process, ensuring that it is ready for welding directly upon receipt.
Conclusion
In summary, the Buyers Products Tipper Latch – Zinc Plated is a highly technical, purpose-built mechanical securing device engineered for optimal performance in tilt-bed trailer applications. Its meticulous design incorporates high-strength carbon steel, advanced zinc plating for superior corrosion resistance, and a sophisticated spring-loaded mechanism with a convenient hold-open feature. The precise dimensional specifications and weld-on mounting type underscore its intent for robust, permanent integration into trailer structures where reliability and longevity are paramount. By selecting this Tipper Latch, professionals are investing in a component that delivers uncompromising security, operational efficiency, and exceptional durability, even in the most demanding environmental and operational contexts, thereby contributing significantly to the safety and longevity of their trailer assets.
