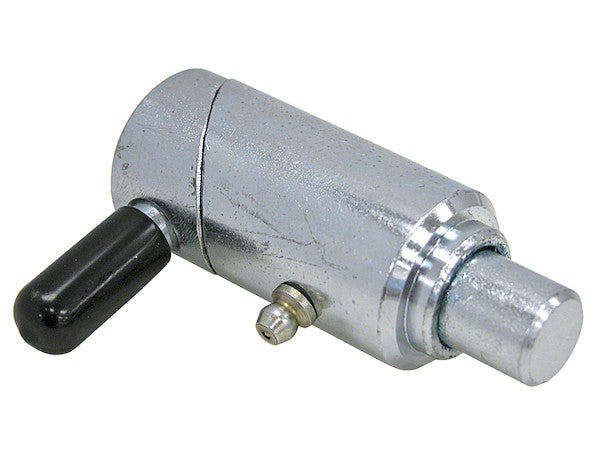

Buyers Products Twist Lock Plunger Pin is spring-loaded and available in three diameters. Each pin includes a grease fitting and is zinc-plated for corrosion protection. Install by drilling a hole to accept plunger pin and weld the barrel into place. Pin is ideal for dump kits, farm equipment, wrecker attachments, stabilizer legs, wheel lift arms, and more.
Specifications
| Length (in.) | 3-1/8 |
|---|---|
| Material | Carbon Steel |
| Outside Dia. (in.) | 1-1/8 |
| Pin Dia. (in.) | 5/8 |
Buyers Products Camlock / Twist Lock Plunger Pin with 0.625 Inch Diameter Pin: A Technical Overview
The Buyers Products Camlock / Twist Lock Plunger Pin, specifically the variant featuring a 0.625-inch (5/8 inch) diameter pin, represents a meticulously engineered mechanical fastening component designed for superior performance in demanding industrial, commercial, and agricultural applications. This component is not merely a simple pin but a sophisticated mechanism integrating robust materials, precision manufacturing, and essential maintenance features to ensure prolonged operational efficiency and unparalleled reliability. Its design caters to applications requiring secure, positive locking, quick engagement and disengagement, and resistance to dynamic forces and environmental stressors.
Precision Engineering and Core Components
At the heart of this plunger pin’s functionality is its precise construction and the synergy of its core components. Understanding these elements in detail is crucial for appreciating its technical merits and suitability for diverse operational scenarios.
Spring-Loaded Mechanism
The integral spring-loaded mechanism is a fundamental attribute of the Buyers Products plunger pin. This feature ensures a constant, positive engagement force, which is critical for secure locking and preventing accidental disengagement due to vibration, shock, or minor misalignment. The spring itself is typically manufactured from high-tensile steel, often heat-treated and surface-finished to enhance its elastic properties, fatigue resistance, and corrosion protection. This robust spring action facilitates rapid retraction and deployment of the pin, streamlining operational procedures and reducing manual effort. The consistent pressure exerted by the spring also aids in maintaining a tight fit, minimizing play between mating components and consequently reducing wear over time.
0.625-inch (5/8 inch) Diameter Pin
The pin's diameter of 0.625 inches (5/8 inch) is a critical design parameter that directly influences its mechanical strength, load-bearing capacity, and compatibility with standard hole dimensions in structural fabrications. This specific diameter is optimized to provide a substantial shear strength, making the pin suitable for applications involving significant lateral loads, such as those encountered in dump kits, agricultural implements, and heavy equipment stabilizers. The pin is manufactured from high-grade Carbon Steel, chosen for its excellent balance of tensile strength, yield strength, and hardness. Depending on the exact alloy, carbon steel pins can offer impressive performance under shear and bending stresses. For enhanced wear resistance and surface hardness, the carbon steel pin may undergo specific heat treatment processes, such as induction hardening or case hardening, which create a hardened surface layer while maintaining a ductile core, thereby improving overall durability and impact resistance without compromising the pin's structural integrity.
Zinc Plating for Corrosion Protection
Surface treatment is paramount for components exposed to varying environmental conditions. The Buyers Products plunger pin features a durable zinc-plated finish. Zinc plating is an electroplating process where a thin layer of zinc is deposited onto the carbon steel substrate. This coating serves as a sacrificial anode, meaning that if the coating is scratched or compromised, the zinc will corrode preferentially to the underlying steel, providing cathodic protection against rust and oxidation. This significantly extends the service life of the component, particularly in outdoor environments or applications where moisture and mild corrosive agents are present. The zinc plating typically conforms to industrial standards such as ASTM B633, specifying minimum coating thickness and performance characteristics, including resistance to salt spray exposure. This protective layer ensures the pin maintains its aesthetic appeal and functional integrity even after prolonged exposure to the elements.
Integrated Grease Fitting
Long-term reliability and reduced maintenance are key considerations for industrial components. The inclusion of an integrated grease fitting (Zerk fitting) on the plunger pin barrel is a testament to its design for durability and ease of maintenance. This fitting allows for the convenient injection of lubricant directly into the moving parts of the plunger mechanism. Regular lubrication with appropriate industrial greases (e.g., lithium complex, calcium sulfonate) significantly reduces friction between the pin, spring, and barrel, preventing premature wear, galling, and seizing. Lubrication also helps to seal out contaminants like dirt and moisture, further contributing to the longevity and smooth operation of the pin. This proactive maintenance capability minimizes downtime, extends the operational lifespan of the component, and ensures consistent performance throughout its service cycle.
Carbon Steel Construction for Overall Durability
The primary material for the plunger pin system, including the barrel and the pin itself, is Carbon Steel. This material choice is a strategic balance of mechanical performance, manufacturability, and cost-effectiveness. Common grades of carbon steel, such as AISI 1018, 1045, or similar specifications, offer excellent machinability for precise component fabrication while providing the requisite strength for heavy-duty applications. Carbon steel components can be readily welded, allowing for secure integration into structural assemblies. The robust nature of carbon steel ensures that the plunger pin can withstand high static and dynamic loads, impact forces, and abrasive wear, which are characteristic of the demanding environments it is designed for.
Barrel Dimensions and Structural Integration
The plunger pin assembly is housed within a robust barrel, specified with an Outside Diameter (OD) of 1-1/8 inches and a total length of 3-1/8 inches. This barrel serves multiple critical functions: it provides a stable housing for the spring and plunger mechanism, offers a strong anchoring point for welding to structural frames, and guides the pin's movement. The substantial barrel dimensions contribute to the overall structural integrity of the installation. The barrel’s material, typically carbon steel compatible with the pin, ensures homogeneous welding characteristics. Its design facilitates installation by drilling a precisely sized hole to accommodate the barrel, which is then permanently secured via welding. This weld-in-place installation method ensures maximum integration strength, critical for safety and operational stability in high-stress applications.
Functional Principles and Operational Advantages
The "Camlock" or "Twist Lock" designation highlights the secure and intuitive locking mechanism of this plunger pin. While not a true camlock in the literal sense of a rotating eccentric cam, the term refers to its ability to provide a positive, non-slip locking action, often achieved by rotating the pin after insertion to engage a detent or notched receiver. This provides a level of security superior to simple push-pull detent pins.
Secure and Positive Locking
The twist lock functionality ensures that once engaged, the pin is highly resistant to accidental disengagement. This positive locking action is paramount in applications where equipment operation involves significant vibration, shock, or variable forces. It provides operators with confidence that components are securely fastened, thereby enhancing operational safety and preventing costly damage due to unintended detachment.
Precision Indexing and Positioning
Plunger pins are frequently used for indexing, which involves accurately locating and securing a movable component in one or more specific positions. The 0.625-inch diameter pin, when mated with a precisely drilled receiving hole, offers excellent repeatability and accuracy in positioning. This is invaluable in applications requiring precise alignment of machinery parts, adjustable implements, or temporary structural connections.
Enhanced Safety and Reliability
In heavy-duty applications, the failure of a locking mechanism can lead to severe consequences, including equipment damage, operational delays, and personnel injury. The robust construction, positive locking, and reliable spring action of the Buyers Products plunger pin directly contribute to higher safety standards and increased operational reliability, minimizing the risk of catastrophic failures.
Ease of Use and Maintainability
Despite its robust construction, the plunger pin is designed for operational simplicity. The spring-loaded mechanism allows for quick engagement and disengagement, reducing the time and effort required for adjustments or reconfigurations. The integrated grease fitting further simplifies routine maintenance, ensuring that the pin remains functional and smooth-acting throughout its extensive service life with minimal effort.
Comprehensive Application Spectrum
The versatility and robust design of the 0.625-inch Camlock / Twist Lock Plunger Pin make it indispensable across a wide array of demanding industries and specific applications.
Dump Kits and Commercial Vehicles
In dump truck beds, trailers, and other commercial vehicle applications, these plunger pins are essential for securing tailgates, dump body mechanisms, and various access panels. They endure constant vibration, heavy loads during transport, and impact forces during dumping operations. The positive twist-lock ensures that these critical components remain securely fastened under extreme conditions, preventing accidental openings or movements.
Agricultural and Farm Equipment
Agriculture equipment frequently utilizes plunger pins for adjustable implement attachments, locking mechanisms on tillers, cultivators, harvesters, and securing components on tractors. The pin's robust construction and corrosion resistance are vital in environments exposed to soil, moisture, fertilizers, and varying weather conditions. Its ease of use allows farmers to quickly adjust or swap implements, improving efficiency.
Wrecker Attachments and Towing Systems
For tow trucks and recovery vehicles, the integrity of every connection is paramount. These pins are used in securing boom arms, wheel lift arms, and various recovery attachments. The high shear strength of the 0.625-inch pin ensures that lifting and towing operations are performed safely and securely, preventing movement or detachment of critical load-bearing components under stress.
Stabilizer Legs and Outriggers
Equipment such as cranes, aerial work platforms, concrete pumps, and heavy machinery often rely on stabilizer legs or outriggers for operational stability. Plunger pins secure these legs in their extended and retracted positions. The positive locking action of the twist lock pin is crucial for preventing accidental retraction during operation, thereby ensuring the static stability and safety of the equipment and personnel.
Industrial Machinery and Jig Fixtures
Beyond mobile equipment, these plunger pins find extensive use in stationary industrial machinery. They are employed in jigs and fixtures for precise positioning of workpieces, indexing tables for rotational accuracy, and securing guards or access panels. Their consistent performance and ability to withstand repetitive cycles make them an ideal choice for manufacturing and assembly line applications.
Construction Equipment
From scaffolding bracing to securing adjustable elements on excavators, loaders, or trenchers, plunger pins play a vital role in construction equipment. They provide quick, reliable connections that can withstand the harsh and dynamic conditions of construction sites, including heavy loads, abrasive materials, and challenging weather.
Installation and Integration Guidelines
Proper installation is paramount to leveraging the full potential of the Buyers Products Camlock / Twist Lock Plunger Pin. Given its weld-in-place design, specific technical considerations must be observed.
Pre-Installation Assessment
Before installation, a thorough assessment of the mating components and structural frame is necessary. This includes verifying material compatibility between the plunger pin barrel (carbon steel) and the receiving structure to ensure strong, durable welds. The structural integrity of the receiving component must be sufficient to support the anticipated loads and stresses transferred through the pin.
Precision Drilling
The installation process begins with drilling a precise hole in the receiving structure to accommodate the plunger pin barrel. The specified outside diameter of the barrel is 1-1/8 inches, requiring a corresponding hole size with appropriate tolerances to allow for insertion while ensuring a snug fit for welding. Precision drilling and reaming (if necessary) are crucial to minimize gaps and facilitate a robust weld, as well as to ensure smooth operation of the pin without binding.
Welding Procedures
Welding the carbon steel barrel into place demands professional execution to ensure structural integrity. Common welding processes suitable for carbon steel, such as Shielded Metal Arc Welding (SMAW/Stick), Gas Metal Arc Welding (GMAW/MIG), or Gas Tungsten Arc Welding (GTAW/TIG), can be employed. The choice of filler material should be compatible with the base metals (e.g., ER70S-6 for MIG/TIG, E7018 for Stick). Proper surface preparation (cleaning, beveling), pre-heat temperatures (if required for thicker sections or specific carbon steel grades), and controlled interpass temperatures are essential. Post-weld inspection, including visual inspection for weld bead quality, penetration, and freedom from defects (e.g., undercut, porosity, cracks), is highly recommended to confirm the integrity of the joint. Welding should only be performed by certified welders following established safety protocols and welding standards.
Post-Installation Verification
Following welding, it is crucial to perform functional checks. This includes ensuring the plunger pin operates smoothly within its barrel, engages positively into its receiving hole, and disengages freely. Lubrication via the grease fitting should be performed to ensure optimal initial operation and to establish the baseline for future maintenance.
Maintenance and Longevity
While designed for durability, proactive maintenance is key to maximizing the lifespan and performance of the Buyers Products plunger pin.
Routine Lubrication
Regular application of appropriate grease through the integrated Zerk fitting is the most critical maintenance task. The frequency of lubrication depends on the application's duty cycle, environmental exposure, and load conditions. In heavy-duty, high-cycle, or dirty environments, lubrication may be required more frequently. This ensures smooth pin movement, reduces friction and wear, and helps to flush out contaminants.
Periodic Inspection
A regimen of periodic visual inspection is recommended. This includes checking for signs of wear on the pin's engaging surfaces, corrosion on the zinc plating, deformation of the barrel, or any signs of fatigue or cracking in the weld joint. The spring mechanism should be checked for proper tension and return action. Any signs of significant wear or damage should prompt consideration for replacement to prevent potential failures.
Environmental Considerations
While zinc plating offers good corrosion resistance, extreme environments (e.g., prolonged saltwater immersion, highly acidic or alkaline conditions) may accelerate wear or corrosion. For such extreme cases, alternative materials or coatings might be considered, though the standard zinc-plated carbon steel pin is robust for most typical industrial and mobile applications.
Quality Assurance and Compliance
Buyers Products is committed to providing components that meet stringent quality and performance standards. The manufacturing process for the Camlock / Twist Lock Plunger Pin adheres to robust quality control measures, from material sourcing to final finishing. Materials conform to relevant ASTM (American Society for Testing and Materials) specifications for carbon steel and zinc plating, ensuring consistent mechanical properties and protective coating performance. Adherence to manufacturing best practices contributes to the reliability and longevity expected of products designed for professional-grade applications.
Conclusion
The Buyers Products Camlock / Twist Lock Plunger Pin with a 0.625-inch diameter represents a sophisticated and essential component for secure mechanical fastening in a multitude of demanding environments. Its blend of high-strength carbon steel construction, robust zinc plating, convenient grease fitting, and a reliable spring-loaded, twist-lock mechanism ensures exceptional durability, operational efficiency, and enhanced safety. Designed for precision indexing, positive locking, and ease of maintenance, this plunger pin offers a technically superior solution for securing critical components in dump kits, farm equipment, wrecker attachments, stabilizer legs, wheel lift arms, and a broad spectrum of industrial applications. Its weld-in installation method provides a permanent and structurally sound integration, underpinning its reliability as a foundational element in heavy-duty machinery and equipment.
