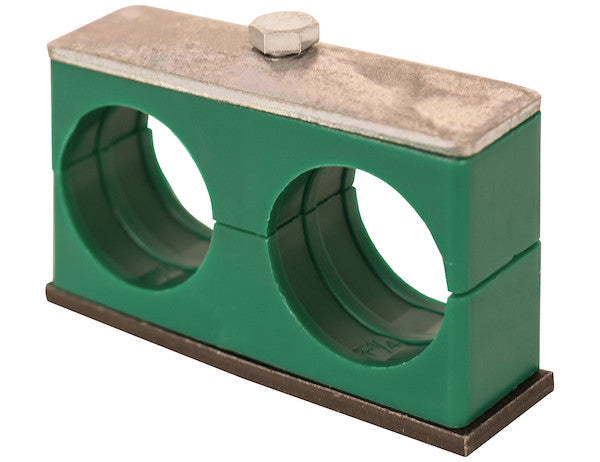

The Weldable Twin Pipe Clamp from Buyers Products keeps pipes organized and in place in your truck's hydraulic system. The twin design accommodates two pipes. It's easy to assemble and disassemble when needed.
Specifications
| Bottom Plate Finish | Plain |
|---|---|
| Clamp For | Pipe |
| Clamp Inner Diameter (in.) | 1.06 |
| Clamp Material | 1080 Steel |
| Depth | 1.18 |
| Distance between bolt holes (center to center) | 1.77 |
| Height | 2.05 |
| Inner Diameter | 0.750 |
| Single or Twin | Twin |
| Top Plate Finish | Zinc Plated |
| Tubing Size | 0.750 |
| Width | 3.35 |
Advanced Pipe Management: The Twin Series Weldable Clamp for 3/4 Inch Nominal Pipes
In demanding industrial and mobile hydraulic systems, the integrity and longevity of fluid conveyance lines are paramount. The Twin Series Clamp, specifically engineered for 3/4 inch nominal pipes (with an approximate outer diameter of 1.050-1.060 inches), represents a robust and meticulously designed solution for superior pipe organization and securement. This product is not merely a component for holding pipes; it is a critical element in maintaining the operational reliability and safety of hydraulic infrastructures, particularly within dynamic environments such as heavy-duty truck applications. Crafted by Buyers Products, a name synonymous with durability and functional excellence, this weldable twin pipe clamp offers a combination of strength, spatial efficiency, and ease of integration, ensuring that hydraulic lines remain precisely organized and securely in place, even under the most strenuous operating conditions. The commitment of Buyers Products to delivering high-quality, application-specific solutions is clearly demonstrated in the engineering foresight and material selection of this essential component.
Engineered Precision for Optimal Performance
The core of this Twin Series Clamp’s performance lies in its precision engineering and judicious material selection. Designed to accommodate two pipes simultaneously, it provides an efficient method for consolidating hydraulic lines, reducing clutter, and optimizing space—a crucial advantage in compact machinery and vehicle chassis. The "Clamp Inner Diameter" of 1.06 inches is a critical specification, precisely calibrated to firmly embrace 3/4 inch nominal pipes, which typically exhibit an outer diameter in the range of 1.050 to 1.060 inches, depending on their schedule and manufacturing tolerances. This exact fit is paramount; it minimizes any potential for pipe movement within the clamp, thereby mitigating the detrimental effects of vibration, shock, and dynamic loads inherent to mobile hydraulic systems. Such accurate sizing is critical to preventing chafing, where the pipe's outer surface rubs against the clamp or other components, leading to material degradation. Furthermore, it helps prevent wear on the pipe wall and potential fatigue failures of the pipes themselves, all of which contribute significantly to the overall system's operational lifespan and reduce the necessity for premature maintenance or costly replacements. The snug fit also contributes to noise reduction by dampening pipe resonance, enhancing the overall operational comfort and professionalism of the equipment.
Material Excellence: The Strength of 1080 Steel
The selection of 1080 steel for the clamp material underscores its commitment to high-performance and enduring reliability in challenging applications. 1080 steel is classified as a medium-to-high carbon steel, renowned for its exceptional strength, hardness, and wear resistance. This material choice is deliberate, offering several key advantages in the context of hydraulic pipe clamping:
- High Tensile Strength: 1080 steel possesses superior tensile strength, enabling it to withstand significant static and dynamic forces. This material can maintain structural integrity without deformation or failure under continuous stress from pipe movement, system pressure pulses, and external impacts. This is vital in preventing clamp distortion, which could compromise the secure retention of the pipes and lead to loosening or displacement.
- Excellent Hardness and Wear Resistance: The inherent hardness of 1080 steel contributes to its formidable resistance against abrasive wear, particularly important in environments where dust, grit, road grime, and other foreign particles are prevalent. This characteristic ensures the clamp's longevity and consistent gripping power over extended periods, even when subjected to mechanical friction or environmental attack.
- Superior Fatigue Resistance: Components in hydraulic systems are subjected to cyclic loading due to operational vibrations, pressure fluctuations, and vehicle movement. Such repetitive stress can lead to material fatigue over time, initiating micro-cracks that propagate to macroscopic failure. 1080 steel’s robust metallurgical properties confer a high degree of fatigue resistance, ensuring the clamp can endure countless cycles of stress and vibration without developing structural weaknesses or experiencing premature failure. This resilience is critical for maintaining long-term system integrity.
- Optimized Weldability: As a medium-to-high carbon steel, 1080 steel offers good weldability, a crucial factor for the "Weldable Twin Pipe Clamp." While slightly more challenging to weld than low-carbon steels, proper welding procedures, including appropriate preheating (typically to 300-400°F or 150-200°C depending on thickness and filler metal), selection of suitable low-hydrogen filler materials (e.g., E7018), controlled heat input, and slow post-weld cooling, ensure a strong, permanent bond. This characteristic is paramount for enabling robust, integral mounting to vehicle chassis or structural frames, offering a level of securement unmatched by purely bolted assemblies in high-stress environments.
Surface Protection and Durability: Plain and Zinc Plated Finishes
The Twin Series Clamp features a dual finishing strategy specifically designed to maximize durability and corrosion resistance across varied environmental conditions. The "Bottom Plate Finish" is designated as "Plain," indicating that this component is typically supplied in its raw, robust steel state, ideally optimized for direct welding applications. A plain, un-coated metallic surface ensures optimal metallurgical bonding during the welding process, preventing any interference from coatings, such as galvanizing or paint, which could otherwise compromise weld quality, increase porosity, or reduce bond strength. This direct metal-to-metal contact during welding yields the strongest and most reliable structural attachment. For applications demanding further corrosion protection for the bottom plate post-welding, the entire assembled unit can be subsequently treated with specialized coatings, primers, or paints, providing a customized protective layer tailored to the specific operating environment. Conversely, the "Top Plate Finish" is "Zinc Plated." Zinc plating provides a highly effective sacrificial barrier against corrosion, actively protecting the underlying 1080 steel from rust and oxidation. This electrochemically applied coating acts as an anode, meaning it corrodes preferentially to the steel substrate when exposed to corrosive elements. This cathodic protection mechanism significantly extends the life of the component in environments frequently exposed to moisture, road salts, de-icing chemicals, acidic or alkaline atmospheric pollutants, and general atmospheric degradation. The strategic combination of these finishes ensures both optimal weld integration for superior structural integrity and robust, long-term environmental resilience, effectively catering to the practical realities and harsh demands of industrial and mobile equipment operation. This thoughtful finishing approach extends the operational lifespan of the clamp and reduces the need for premature replacement, contributing to lower lifetime costs.
Optimized Geometry for Installation and Performance
The physical dimensions and geometry of the Twin Series Clamp are meticulously engineered to facilitate straightforward installation while providing maximum stability and operational efficiency. With a "Depth" of 1.18 inches, a "Height" of 2.05 inches, and a "Width" of 3.35 inches, the clamp presents a compact yet robust footprint. This design is essential for space-constrained installations prevalent in mobile equipment without sacrificing crucial structural strength or load-bearing capacity.
- Compact and Efficient Design: The overall dimensions allow for highly efficient routing of two pipes in close proximity, minimizing the spatial envelope required for hydraulic line management. This is particularly beneficial in crowded engine compartments, densely packed undercarriages, or specialized utility bodies where every cubic inch of space is valuable and contributes to the overall design efficiency and compactness of the machinery.
- Inherent Structural Rigidity: Despite its compact size, the design expertly leverages the superior strength properties of 1080 steel to provide substantial inherent rigidity. This prevents undesirable flex or distortion of the clamp even under significant dynamic loads and constant vibration, ensuring that the pipes remain immovably secured. The "Distance between bolt holes (center to center)" of 1.77 inches is a precisely specified measurement critical for the secure fastening of the zinc-plated top plate to the plain bottom plate. This ensures a consistent and evenly distributed clamping force across both pipe segments, preventing localized stress concentrations. This specific dimension is also critical for compatibility with a wide range of standard mounting hardware, facilitating seamless integration into diverse existing or new hydraulic system designs and simplifying procurement of ancillary components.
- Permanent Weldable Base Plate: The plain finished bottom plate is purpose-designed for direct welding to the vehicle chassis, equipment frame, or any other structural component made of compatible steel. This creates an exceptionally strong, permanent, and inherently vibration-resistant attachment point. This direct, integral integration eliminates potential points of failure that can be associated with purely bolted connections, which, despite tightening, may loosen over extended periods in high-vibration environments. The weldable feature offers a level of security and robustness that is critical for the safety and long-term reliability of heavy-duty, mission-critical applications where failure is not an option. The ability to create a monolithic connection ensures that the clamp and the pipes it holds become an integral part of the vehicle's structure.
Application Focus: The Critical Role in Truck Hydraulic Systems
The primary application domain for the Twin Series Clamp is within truck hydraulic systems, an environment characterized by some of the most extreme operational demands imaginable. Trucks, especially those engaged in vocational tasks such as refuse collection, heavy construction, agricultural operations, forestry, or transportation with hydraulic implements (e.g., dump beds, articulating cranes, front-mounted snow plows), subject their hydraulic lines to a relentless barrage of forces and environmental stressors.
- Proactive Vibration Attenuation: Continuous engine vibration, severe road shock from uneven terrain, and dynamic operational movements (e.g., boom extensions, bucket cycles) generate significant oscillatory forces. Unsecured pipes can vibrate excessively, leading to accelerated wear on their outer surfaces (chafing against other components), premature loosening of hydraulic fittings, and ultimately, catastrophic fatigue failure of the pipe material itself. The Twin Series Clamp, through its robust construction and precise, tight fit, effectively dampens these vibrations. By minimizing relative motion, it significantly extends the service life of both hydraulic lines and their critical connectors, safeguarding against costly and dangerous leaks or line breaks.
- Enhanced Impact and Abrasion Protection: Truck undercarriages and utility bodies are constantly exposed to flying debris, gravel, impacts from obstacles, and abrasive elements from the road and job site. By securely fastening pipes, the clamp minimizes their uncontrolled movement and their exposure to such external hazards, preventing them from impacting other components or structural members. This physical containment acts as a primary defense against external mechanical damage.
- Systematic Organization and Streamlining: Clutter and disorganization in hydraulic line routing are not merely aesthetic concerns; they pose significant operational risks and inefficiencies. Disorganized lines are far more prone to entanglement, accidental shearing or crushing, and can severely complicate troubleshooting or routine maintenance procedures. The twin design of this clamp actively promotes systematic organization, simplifying the initial installation process, streamlining subsequent inspections, and making repair or replacement tasks significantly more manageable. This organized approach directly translates into reduced vehicle downtime, lower labor costs for maintenance, and an overall more professional and functional system.
- Prevention of Catastrophic Fluid Leaks: Securely clamped pipes minimize any movement or flex at connection points, which dramatically reduces strain on hydraulic fittings and flexible hoses. This direct action significantly decreases the likelihood of developing fluid leaks. Hydraulic fluid leaks are not only environmentally detrimental and costly in terms of lost fluid, but they also pose severe safety hazards (e.g., creating dangerous slip hazards for personnel, fire risks with pressurized flammable oil near hot engine components, and potential system failure). By preventing leaks, the clamp contributes directly to a safer work environment and maintains the system's intended operational efficiency.
- Compliance and Regulatory Adherence: Proper and secure pipe securement is often a fundamental requirement for stringent safety standards and regulatory compliance in commercial vehicle operation, particularly those governed by industry-specific certifications or governmental bodies. The Twin Series Clamp assists vehicle operators, upfitters, and manufacturers in meeting these rigorous requirements, thereby contributing to a safer working environment, avoiding potential fines, and ensuring reliable vehicle performance and legal operation.
Installation and Maintenance: Simplicity Meets Enduring Durability
The design philosophy of the Twin Series Clamp encompasses both robust performance and practical utility in the field, making installation and maintenance straightforward without compromising strength or security. Its characteristic as "easy to assemble and disassemble when needed" is a critical feature that belies its inherent strength, facilitating efficient initial installation and ongoing maintenance procedures throughout the lifespan of the equipment.
- Streamlined Assembly Process: The twin design is inherently efficient, allowing for two pipes to be secured simultaneously with a single clamping unit. This not only optimizes spatial usage but also significantly reduces the total number of individual components required and, crucially, minimizes overall installation time compared to utilizing two separate individual clamps. The top plate is securely fastened to the bottom plate using standard, appropriate fasteners (which are typically procured separately to allow for specific application requirements regarding material grade and corrosion resistance) through the precisely engineered bolt holes, ensuring a tight and consistent grip.
- Weld-On Mounting Advantage: The weldable nature of the plain finished bottom plate provides a substantial and distinct advantage for permanent installations. Welding ensures an integral, monolithic connection to the vehicle chassis or equipment frame, offering superior resistance to pull-out forces, torsional stresses, and cyclic loading compared to alternative bolted or screwed attachments that may gradually loosen or fatigue over time in persistently high-vibration settings. When welding 1080 steel, it is imperative to adhere to established welding procedures for medium-carbon steels. This includes careful consideration of preheating temperatures (to mitigate hydrogen cracking and improve ductility), selection of compatible low-hydrogen filler materials, precise control of heat input during welding, and allowing for slow, controlled post-weld cooling. These measures are critical to achieve optimal weld integrity, preventing embrittlement and ensuring the strongest possible bond for maximum longevity and reliability.
- Facilitated Disassembly for Service: Despite its secure hold, the clamp's thoughtful design permits straightforward and non-destructive disassembly. This capability is critical for essential maintenance operations, such as replacing a worn or damaged hydraulic line, conducting detailed inspections of the pipes or the clamp itself, or performing system modifications or rerouting. Simply unfastening the top plate allows for easy removal or insertion of pipes without requiring extensive manipulation of other components or the need for specialized tools, thus minimizing downtime and simplifying technician workload.
- Engineered for Long-Term Serviceability: The judicious combination of high-grade 1080 steel, protective zinc plating on critical exposed surfaces, and a robust structural design ensures that the clamp itself is a low-maintenance component. While the inherent durability largely mitigates the need for frequent intervention, periodic inspection for any signs of extreme wear, localized corrosion (especially if the zinc plating is compromised), or physical damage is advisable, particularly in environments subjected to the most severe operating conditions. The durability and resilience of these components translate directly into a significantly lower total cost of ownership over the operational lifespan of the vehicle or equipment, providing long-term economic benefits and peace of mind.
Enhancing System Reliability and Operational Efficiency
The strategic investment in high-quality pipe management solutions like the Twin Series Clamp for 3/4 inch nominal pipes translates directly into tangible and significant operational benefits that extend far beyond the immediate function of merely securing pipes. These clamps are integral components that contribute to the overarching reliability, safety, and efficiency of hydraulic systems. By precisely stabilizing critical fluid lines, they inherently minimize mechanical stress on hydraulic components, preserve the integrity of high-pressure connections, and reduce the risk of premature failure of pipes, hoses, and fittings. This proactive approach to system maintenance and robust organization directly contributes to a substantial reduction in unplanned downtime, which is often the most costly aspect of equipment ownership. Furthermore, it leads to lower repair and replacement costs over the system's operational lifetime, and most importantly, enhances safety for operators and all surrounding personnel by preventing hydraulic fluid leaks and potential line ruptures. In professional environments where every minute of operational time contributes to productivity, project timelines, and profitability, the robust and consistently reliable performance offered by this weldable twin pipe clamp from Buyers Products proves to be an invaluable and essential asset, safeguarding both capital equipment and human resources.
Conclusion
The Twin Series Clamp for 3/4 inch I.D. pipe, manufactured from high-strength 1080 steel, engineered with protective zinc-plated and plain finishes, and featuring a robust weldable design, represents an exemplary and professional-grade solution for demanding hydraulic pipe securement challenges. Its innovative twin configuration, combined with a precise fit for 1.050-1.060 inch O.D. pipes (corresponding to nominal 3/4 inch internal diameter), and its carefully considered geometric dimensions are all optimized for superior, unwavering performance in the most challenging applications. This is particularly evident and crucial within mobile hydraulic systems commonly found on heavy-duty trucks and industrial machinery. By effectively organizing, protecting, and stabilizing vital hydraulic lines against the relentless forces of vibration, shock, and environmental degradation, this clamp significantly enhances overall system reliability, extends the operational life of expensive components, and fundamentally contributes to a safer, more efficient, and ultimately more profitable operational environment. For discerning engineers, meticulous maintenance technicians, and proactive fleet managers who are seeking a robust, durable, and easily maintainable solution for their critical hydraulic infrastructure, the Twin Series Weldable Clamp from Buyers Products stands as an unequivocal professional-grade choice, embodying the highest principles of strength, precision engineering, and long-term functional longevity.
