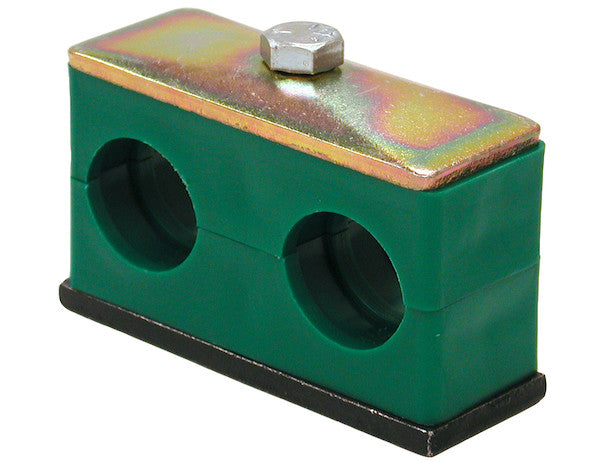

TSCT025 - Twin Series Clamp For Tubing 1/4 Inch I.D.

The Weldable Twin Tubing Clamp from Buyers Products keeps tubing organized and in place in your truck's hydraulic system. It accommodates two tubing lines and is easy to assemble and disassemble when needed.

Specifications

Bottom Plate Finish	Plain
Clamp For	Tube
Clamp Inner Diameter (in.)	.25
Clamp Material	1080 Steel
Depth	1.18
Distance between bolt holes (center to center)	.79
Height	1.36
Inner Diameter	0.250
Single or Twin	Twin
Top Plate Finish	Zinc Plated
Tubing Size	0.250
Width	1.46

Advanced Engineering and Application of the Twin Series Tubing Clamp for 1/4 Inch O.D. Tubing

In demanding industrial and mobile hydraulic applications, the integrity and longevity of fluid transfer systems are paramount. The Twin Series Clamp, specifically engineered for tubing with a 1/4 inch outer diameter (O.D.), represents a critical component in ensuring the stability, organization, and protection of hydraulic lines. This expanded technical description will delve into the design philosophy, material science, operational advantages, and installation considerations that position this clamp as an indispensable asset for optimal system performance, particularly within the challenging environment of truck-mounted hydraulic systems.

Precision Design for Dual Line Management

The Twin Series Clamp is meticulously designed to accommodate two tubing lines simultaneously, providing a compact and efficient solution for routing parallel fluid conduits. The designation "Twin Series" signifies its capability to not only secure two lines but also to integrate seamlessly into a series of clamps along a longer tubing run, ensuring consistent support and alignment. The core functionality revolves around its ability to cradle and secure tubing with an outer diameter of 0.250 inches, a standard size in numerous low to medium pressure hydraulic and pneumatic circuits, as well as instrumentation lines. The precise inner diameter of the clamp body, specified at 0.250 inches, guarantees a snug fit, effectively mitigating tubing movement, vibration, and chafing, which are primary contributors to premature wear and system failure. The physical dimensions of the clamp – a depth of 1.18 inches, a height of 1.36 inches, and a width of 1.46 inches – are not arbitrary. These measurements reflect an optimized footprint, allowing for installation in confined spaces prevalent in modern vehicle chassis and machinery while providing sufficient material volume for robust mechanical integrity. The carefully calculated distance between bolt holes (center to center) of 0.79 inches facilitates secure attachment to a mounting surface, ensuring the clamp remains steadfast under dynamic loads and operational stresses. This precise engineering minimizes installation complexity and maximizes functional stability.

Material Science: The Robustness of 1080 Steel

The selection of 1080 steel for the clamp body is a deliberate engineering choice, reflecting a commitment to durability and performance. 1080 steel is a high-carbon steel known for its excellent balance of strength, hardness, and wear resistance. With approximately 0.75-0.88% carbon content, it falls within the plain carbon steel category, offering superior mechanical properties compared to lower carbon steels. Key mechanical properties contributing to its suitability include:

• **Tensile Strength:** 1080 steel exhibits high tensile strength, typically ranging from 90,000 to 120,000 psi (620-827 MPa) in its as-rolled condition, and potentially higher with appropriate heat treatment. This strength is crucial for resisting deformation and fracture under the static and dynamic loads exerted by hydraulic tubing, particularly in systems experiencing pressure surges or external impacts.
• **Yield Strength:** The high yield strength ensures that the clamp will not permanently deform under operational stresses, maintaining its critical dimensions and clamping force over time.
• **Hardness:** While not extensively hardened for this application, the intrinsic hardness of 1080 steel provides good resistance to abrasion and indentation, protecting the clamp body from wear caused by environmental factors or incidental contact.
• **Weldability:** Critically, 1080 steel possesses good weldability, especially for the "plain finish" bottom plate. This allows for direct, permanent integration into structural components, a significant advantage in applications where bolting is insufficient or impractical. Proper preheating and post-weld cooling procedures are recommended to prevent hydrogen embrittlement or excessive hardening in the heat-affected zone (HAZ), ensuring the integrity of the welded joint.

This choice of material underscores the product's intention for use in challenging environments where long-term reliability is paramount.

Surface Treatment for Enhanced Durability and Longevity

The Twin Series Clamp features differentiated surface finishes for its components, a strategic decision to optimize both functionality and protective properties:

• **Bottom Plate Finish: Plain:** The bottom plate, which is designed for welding, maintains a plain finish. This uncoated surface is essential for achieving a strong, metallurgical bond during the welding process. Coatings, such as zinc plating, would typically need to be removed prior to welding to prevent porosity, fumes, and compromised weld quality. The plain finish streamlines the installation process for weld-on applications, ensuring robust attachment to the frame or chassis.
• **Top Plate Finish: Zinc Plated:** The top plate, along with the fasteners (not explicitly listed but implied in assembly), receives a zinc-plated finish. Zinc plating provides sacrificial cathodic protection against corrosion. In the presence of moisture and oxygen, zinc corrodes preferentially to steel, thereby protecting the underlying 1080 steel from rust and degradation. This is particularly vital in outdoor mobile applications where exposure to road salts, chemicals, rain, and humidity is constant. The zinc plating also offers an aesthetically clean and professional appearance, complementing the overall quality of the hydraulic system installation.

This combination of finishes demonstrates a thoughtful approach to material protection, balancing the need for superior weldability with robust corrosion resistance for exposed components.

Application in Truck Hydraulic Systems: Addressing Unique Challenges

The application of this Twin Series Clamp in truck hydraulic systems presents a compelling case for its specialized design. Truck hydraulic systems operate under a unique set of demanding conditions:

• **High Vibration and Shock Loads:** Commercial vehicles are subjected to continuous vibration from the engine, drivetrain, and road conditions. Hydraulic lines must be secured to prevent fatigue failure, loosening of connections, and leakage. The rigid clamping provided by the 1080 steel clamp, combined with its weldable base, offers superior vibration dampening and resistance to shock loads compared to lighter-duty alternatives.
• **Pressure Fluctuations:** Hydraulic systems experience significant pressure fluctuations, which can cause tubing to expand and contract, leading to stress on unsupported sections. Proper clamping prevents excessive movement and concentrates stress at localized points.
• **Temperature Extremes:** Trucks operate in diverse climates, subjecting hydraulic fluids and components to wide temperature ranges. The robust steel construction maintains its integrity across these temperature variations.
• **Corrosive Environment:** Exposure to road salts, grime, diesel exhaust, and various chemicals necessitates corrosion-resistant components. The zinc-plated top plate is a direct response to this challenge.
• **Space Constraints:** Modern vehicle chassis designs often leave limited space for auxiliary equipment and routing. The twin configuration efficiently manages two lines in a compact envelope, optimizing space utilization.

By securing tubing lines, the clamp directly contributes to:

• **Preventing Abrasion:** Unsecured tubing can rub against other components, leading to wear and potential leaks.
• **Maintaining Hose/Tube Bend Radius:** Ensuring tubing maintains its designed bend radius prevents kinking and flow restriction.
• **Reducing Noise:** Vibrating tubing can generate noise, which is mitigated by secure clamping.
• **Enhancing Safety:** Preventing line failures reduces the risk of hydraulic fluid leaks, which can pose environmental hazards, fire risks, and operational downtime.

Installation Protocols and Best Practices

The "Weldable" characteristic of the bottom plate is a key functional differentiator. For permanent and high-strength installations, welding the clamp's bottom plate directly to the truck's chassis or a mounting bracket offers an unparalleled level of security.

Welding Guidelines:

1. **Surface Preparation:** Ensure the welding surface on both the clamp and the substrate is clean, free from paint, grease, rust, or other contaminants. Grind to bright metal if necessary.
2. **Welding Process:** Common welding processes like SMAW (Stick), GMAW (MIG), or GTAW (TIG) can be used. Given 1080 steel's carbon content, a low-hydrogen filler metal is generally recommended to minimize the risk of hydrogen-induced cracking.
3. **Preheating:** For heavier sections or critical applications, preheating the joint to a temperature between 200°F (93°C) and 400°F (204°C) can reduce the cooling rate and minimize residual stresses and hardness in the HAZ.
4. **Welding Technique:** Use appropriate welding parameters (current, voltage, travel speed) to achieve full penetration and a sound weld. Avoid excessive heat input.
5. **Post-Weld Cooling:** Allow the welded assembly to cool slowly, possibly under insulating blankets, to further reduce residual stresses and prevent rapid cooling that could lead to cracking.
6. **Inspection:** Visually inspect the weld for proper bead formation, absence of cracks, undercut, or porosity. For critical applications, non-destructive testing (NDT) methods like dye penetrant or magnetic particle inspection may be employed.

Assembly and Disassembly:

The clamp's design facilitates easy assembly and disassembly. This modularity is achieved through a multi-component structure, typically comprising a weldable base plate, one or more clamp halves (the twin configuration uses two channels), and a top plate secured by bolts. Standard fasteners (e.g., hex head bolts and nuts, not included but commonly used with such clamps) are employed.

1. **Positioning:** Once the bottom plate is welded (or bolted if using a non-weldable variant), position the tubing within the channels of the clamp body.
2. **Alignment:** Ensure the two 1/4-inch O.D. tubes are correctly seated in their respective grooves.
3. **Securing:** Place the top plate over the tubing and align it with the bolt holes in the bottom plate. Insert the appropriate fasteners and tighten them evenly to the manufacturer's recommended torque specifications. Over-tightening can deform the tubing or the clamp, while under-tightening can lead to insufficient clamping force.

The ease of disassembly is a significant advantage for maintenance and troubleshooting. If a tubing line needs replacement, or if inspection is required, the clamp can be quickly opened by unfastening the bolts, allowing access to the lines without requiring specialized tools or damaging the clamp components. This reduces downtime and simplifies field service operations.

Compliance and Industry Standards

While specific standards like DIN 3015 are often associated with the geometry of clamp bodies, the design principles of this Twin Series Clamp align with general industry best practices for hydraulic component support. These practices emphasize:

• **Vibration Damping:** Minimizing vibration transmission to ensure system integrity.
• **Secure Retention:** Preventing tubing movement under all operational conditions.
• **Corrosion Resistance:** Ensuring long operational life in harsh environments.
• **Ease of Maintenance:** Facilitating inspection and replacement of tubing.

Engineered to meet the rigorous demands of professional use, this clamp ensures that hydraulic installations adhere to high standards of reliability and safety.

Operational Benefits and Long-Term Value

Investing in high-quality tubing clamps like the Twin Series 1/4 Inch O.D. offers substantial long-term value:

• **Reduced Downtime:** By preventing tube chafing, vibration-induced fatigue, and stress failures, the clamp directly contributes to fewer unexpected breakdowns and maintenance interventions.
• **Extended System Lifespan:** Securely supported tubing lasts longer, reducing the frequency of component replacement and overall system wear. This extends the operational life of the entire hydraulic system.
• **Enhanced Safety:** Eliminating uncontrolled tubing movement and potential leak points improves operational safety for personnel and prevents environmental contamination from hydraulic fluid spills.
• **Improved Performance:** Consistent fluid flow, free from kinks or restrictions caused by unsecured tubing, ensures the hydraulic system operates at its peak efficiency.
• **Cost-Effectiveness:** While representing a small component, the preventative benefits of a robust clamp far outweigh its initial cost, saving significant expenses associated with repairs, lost productivity, and potential regulatory fines.

Conclusion

The Twin Series Clamp for 1/4 Inch O.D. Tubing is a precisely engineered, robust solution for managing critical fluid lines in challenging environments. Its construction from high-quality 1080 steel, featuring a weldable plain finish base and a corrosion-resistant zinc-plated top plate, ensures uncompromised strength, durability, and longevity. Designed for the specific demands of truck hydraulic systems, it offers superior vibration dampening, abrasion prevention, and enhanced system integrity. The twin configuration optimizes space, while the ease of assembly and disassembly simplifies installation and maintenance. By providing reliable support and protection for hydraulic tubing, this clamp is an essential component for any system where safety, efficiency, and sustained performance are paramount. It represents a commitment to engineering excellence, delivering a foundation for stable and resilient hydraulic operations.
