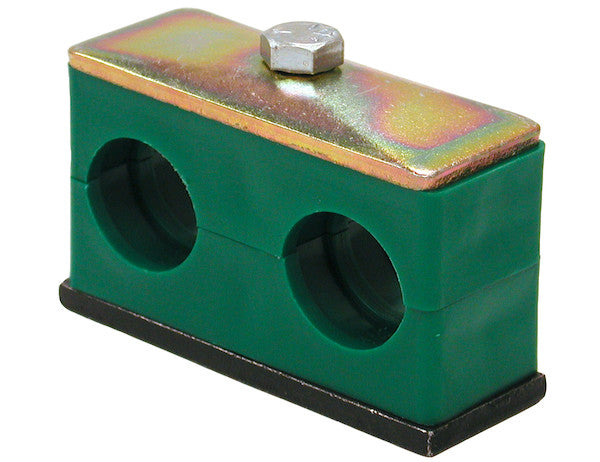

TSCT038 - Twin Series Clamp For Tubing 3/8 Inch I.D.

The Weldable Twin Tubing Clamp from Buyers Products keeps tubing organized and in place in your truck's hydraulic system. It accommodates two tubing lines and is easy to assemble and disassemble when needed.

Specifications

Advanced Engineering and Application of the Twin Series Clamp for 3/8 Inch I.D. Tubing

The Twin Series Clamp for 3/8 Inch I.D. Tubing represents a critical component in the robust and reliable operation of hydraulic and pneumatic systems across a myriad of industrial and mobile applications. Designed with precision and engineered for exceptional durability, this clamp provides an indispensable solution for securing, organizing, and protecting parallel runs of tubing within complex mechanical architectures. Its specialized design and material composition cater specifically to demanding environments where vibration, mechanical stress, and environmental exposure are significant factors impacting system integrity and longevity.

Precision Engineering for Optimal Tubing Management

At the core of its functionality, this Twin Series Clamp is meticulously engineered to accommodate two tubing lines with an inner diameter (I.D.) of 3/8 inch (0.375 inches). This precise sizing ensures a snug and secure fit, which is paramount for preventing excessive movement, abrasion, and fatigue on the tubing. In high-pressure hydraulic systems, unchecked tubing movement can lead to numerous detrimental effects, including:

• Abrasive Wear: Repetitive contact between tubing and adjacent structures or other tubing lines can wear down external coatings and even the tube material itself, leading to premature failure.
• Fatigue Cracking: Constant vibration and flexing induce stress cycles that can cause material fatigue, particularly at bends or connection points, resulting in crack initiation and propagation.
• Leakage: Loose tubing can transmit vibration to fittings and connections, potentially loosening them over time and creating pathways for fluid leakage, leading to system inefficiency, environmental contamination, and safety hazards.
• Cavitation and Noise: Uncontrolled vibration can contribute to hydraulic cavitation and increased noise levels, degrading system performance and operator comfort.

By effectively restraining the tubing, the Twin Series Clamp mitigates these risks, thereby extending the operational lifespan of the hydraulic lines and contributing significantly to the overall reliability and safety of the system. The twin configuration offers a space-efficient solution, allowing for compact routing of multiple lines without compromising on individual line support.

Material Science: The Strength of 1080 Steel

A fundamental aspect of this clamp's robust performance is its construction from 1080 steel. 1080 steel is a high-carbon plain carbon steel known for its excellent strength, hardness, and wear resistance, particularly after appropriate heat treatment. Its chemical composition typically includes:

• Carbon (C): Approximately 0.75-0.88%. The high carbon content contributes significantly to the steel's hardness and tensile strength, making it ideal for applications requiring structural rigidity and resistance to deformation under load.
• Manganese (Mn): Typically 0.60-0.90%. Manganese enhances the steel's strength, hardness, and wear resistance, and also improves hardenability and forgeability.
• Silicon (Si): Approximately 0.15-0.30%. Silicon acts as a deoxidizer during steel production and improves strength and elasticity.

The selection of 1080 steel for the clamp material ensures that it can withstand the severe mechanical stresses and dynamic loads inherent in industrial and mobile hydraulic systems. Its high tensile strength provides superior clamping force retention, preventing slippage of the tubing even under pulsating pressures or significant external forces. Furthermore, 1080 steel possesses good weldability, which is a critical characteristic given the product's "Weldable" designation. This allows for permanent, high-strength attachment of the clamp base plate to the structural frame of a vehicle or machinery, ensuring unwavering stability and support for the tubing.

Advanced Surface Treatments for Enhanced Durability

The Twin Series Clamp incorporates specific surface finishes for its constituent components, optimized for protection against environmental degradation and to ensure long-term performance:

Bottom Plate Finish: Plain

The bottom plate, designed for welding, features a "plain" finish. This choice is deliberate and critical for facilitating high-quality welds. A plain, uncoated steel surface is ideal for welding processes because it allows for direct metallic bonding between the clamp and the mounting surface. Coatings such as paint, zinc, or other platings would need to be removed prior to welding, as they can interfere with weld quality, create hazardous fumes, and lead to weak or porous weld joints. By providing a plain finish on the weldable base, the clamp ensures that industrial fabricators and maintenance technicians can achieve strong, reliable, and compliant welds without additional preparatory steps, thereby streamlining installation and enhancing structural integrity.

Top Plate Finish: Zinc Plated

In contrast, the top plate, which is typically bolted onto the base after the tubing is seated, features a "Zinc Plated" finish. Zinc plating is an electrochemical process that deposits a thin layer of zinc onto the steel surface. This plating offers sacrificial cathodic protection against corrosion. In the presence of moisture and oxygen, zinc corrodes preferentially to steel, thereby protecting the underlying steel substrate. Key benefits of zinc plating include:

• Corrosion Resistance: Significantly extends the lifespan of the component by preventing rust formation, especially in environments exposed to moisture, road salts, or industrial chemicals.
• Aesthetic Appeal: Provides a clean, bright metallic finish that contributes to the professional appearance of the installed system.
• Abrasion Resistance: While primarily for corrosion, the zinc layer also provides a degree of hardness to the surface, offering minor resistance against superficial scratching.

The combination of a plain weldable bottom plate and a corrosion-resistant zinc-plated top plate demonstrates a thoughtful engineering approach, optimizing each component for its specific role within the clamp assembly and the overall operating environment.

Design and Functional Characteristics

Twin Configuration and Space Optimization

The "Twin Series" designation highlights the clamp's ability to secure two parallel tubing lines simultaneously. This design offers several advantages over using individual clamps for each line:

• Space Efficiency: Reduces the physical footprint required for tubing support, which is particularly beneficial in compact or densely packed engine compartments and chassis frames common in commercial vehicles.
• Enhanced Organization: Maintains a neat and orderly routing of hydraulic lines, simplifying inspection, troubleshooting, and future maintenance operations. Well-organized tubing reduces the risk of entanglement and accidental damage.
• Reduced Vibration Transmission: By holding two lines securely within a single unit, the clamp helps synchronize their movement, potentially reducing differential vibration and chafing between adjacent lines.
• Simplified Installation: A single mounting point for two lines can reduce installation time and labor compared to installing two separate clamps.

Precise Dimensions and Secure Retention

The specified dimensions of the clamp are crucial for its effective performance:

• Inner Diameter (0.375 in. / 3/8 in.): Ensures a precise fit for standard 3/8-inch I.D. tubing. This exact diameter minimizes clearance, preventing tubing migration and reducing the potential for impact or abrasive wear within the clamp itself. The specification also lists "Clamp Inner Diameter (in.): .37", which is a minor variance from .375" (3/8"). This could represent a nominal measurement, a slight manufacturing tolerance, or a design choice to ensure a slight interference fit for optimal grip, accommodating slight variations in tubing outside diameter (O.D.) while maintaining strong retention.
• Depth (1.18 in.), Height (1.36 in.), Width (1.46 in.): These external dimensions define the clamp's physical envelope, allowing engineers to plan tubing routes and mounting locations accurately. The robust dimensions suggest a substantial, durable clamp body capable of withstanding significant loads.
• Distance between bolt holes (center to center) (.79 in.): This specification for the bolt hole spacing on the top plate ensures compatibility with standard fastening hardware and dictates the required hole pattern on the bottom plate, facilitating ease of assembly and maintenance.

Weldability for Permanent Integration

The "weldable" feature of the bottom plate provides a superior method of attachment compared to bolted or screwed-on clamps in many heavy-duty applications. Welding offers:

• Superior Strength: A properly executed weld creates a monolithic bond between the clamp and the mounting structure, eliminating potential points of failure often associated with mechanical fasteners that can loosen under vibration.
• Permanent Installation: Ideal for applications where the tubing layout is fixed and requires long-term, unyielding support, such as in the chassis of heavy trucks, construction equipment, or industrial machinery.
• Enhanced Rigidity: Contributes to the overall structural rigidity of the tubing run, effectively becoming an integral part of the machine's framework.

This method of attachment is particularly valuable in environments where equipment undergoes constant shock, vibration, and dynamic loading, ensuring that the tubing remains securely anchored throughout the operational life of the machinery.

Applications Across Diverse Industries

While specifically highlighted for "truck's hydraulic system," the Twin Series Clamp for 3/8 Inch I.D. Tubing has a broad range of applications in any setting requiring reliable hydraulic or pneumatic line management:

• Commercial and Heavy-Duty Trucks: Essential for routing brake lines, power steering lines, fuel lines, and auxiliary hydraulic circuits for dump beds, refuse compactors, lift gates, and snowplows. The weldable base is perfect for chassis mounting.
• Construction Equipment: Used in excavators, bulldozers, loaders, and cranes to secure hydraulic lines for boom operation, bucket control, and steering, where extreme vibration and dirt are common.
• Agricultural Machinery: Tractors, harvesters, and sprayers utilize these clamps for hydraulic systems controlling implements, steering, and braking in often harsh, outdoor conditions.
• Material Handling Equipment: Forklifts, conveyors, and automated guided vehicles (AGVs) benefit from robust tubing support for hydraulic actuators and control systems.
• Industrial Machinery: General manufacturing, presses, injection molding machines, and robotic systems rely on precise and secure tubing routes for continuous, high-performance operation.
• Marine Applications: Though less common for welding directly to marine hulls due to material differences, these clamps could be used in engine rooms or auxiliary systems for hydraulic steering or power takeoff systems, provided appropriate corrosion mitigation for the welded joint is implemented.

In all these applications, the clamp's ability to maintain organized and protected tubing lines contributes directly to operational efficiency, reduced downtime, and enhanced safety.

Installation Considerations and Best Practices

Proper installation is crucial to leverage the full benefits of the Twin Series Clamp. For the weldable base, the following best practices should be observed:

• Surface Preparation: Ensure the mounting surface is clean, free of grease, paint, rust, and scale to achieve a strong, contaminant-free weld.
• Welding Process: Utilize appropriate welding techniques (e.g., MIG, TIG, Stick) and filler materials compatible with 1080 steel and the base material of the mounting structure. Proper heat management is essential to prevent warping or altering the metallurgical properties of the clamp or frame.
• Placement and Spacing: Clamps should be strategically spaced along the tubing run according to engineering guidelines or manufacturer recommendations to effectively manage vibration and sag. Generally, closer spacing is required for higher vibration environments or longer unsupported runs.
• Alignment: Ensure the clamps are aligned correctly to prevent inducing stress or kinks in the tubing, particularly when routing two parallel lines.
• Torque Specifications: For the bolts connecting the top plate to the bottom plate (not included but implied by "distance between bolt holes"), adhere to recommended torque specifications to secure the tubing firmly without overtightening, which could deform the tubing or damage the clamp.

The ease of assembly and disassembly noted in the initial description refers to the bolted connection of the top plate, allowing for convenient installation, inspection, or replacement of tubing without disturbing the permanently welded base.

Long-Term Performance and Maintenance

The longevity of a hydraulic system is directly tied to the integrity of its components, and tubing clamps play a vital role in this. The Twin Series Clamp, with its robust 1080 steel construction and protective zinc plating, is designed for extended service life. However, regular inspection and maintenance are recommended:

• Visual Inspection: Periodically check clamps for signs of wear, corrosion, deformation, or looseness. Verify that the tubing remains securely held and free from abrasion at contact points with the clamp or surrounding structures.
• Bolt Tightness: Ensure that the bolts securing the top plate remain tight to specification. Vibration can cause fasteners to loosen over time.
• Environmental Assessment: In highly corrosive environments or areas with significant abrasive debris, more frequent inspections and potential proactive replacement may be necessary.

By preventing tube damage and maintaining system integrity, these clamps minimize costly downtime, reduce the risk of hydraulic fluid leaks, and contribute to a safer operating environment.

Conclusion

The Twin Series Clamp for 3/8 Inch I.D. Tubing from Buyers Products is more than just a simple fastening device; it is a meticulously engineered component critical to the operational efficiency, safety, and longevity of hydraulic and pneumatic systems. Its robust 1080 steel construction, combined with strategic surface finishes, precise dimensions, and a weldable design, positions it as an ideal solution for securing two 3/8-inch I.D. tubing lines in the most demanding environments. From heavy-duty truck chassis to industrial machinery, this clamp ensures organized, protected, and reliable fluid conveyance, thereby safeguarding the overall investment in complex mechanical systems. Its ease of assembly and disassembly further supports efficient maintenance cycles, making it a comprehensive and indispensable asset for professional engineers and technicians committed to excellence in system design and reliability.
