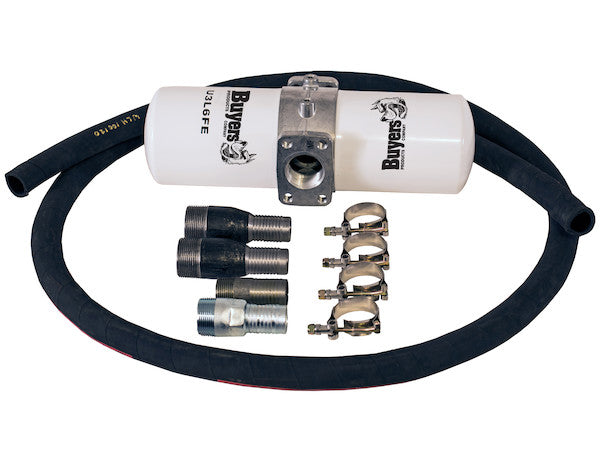

The 3 Line Filtration Kit from Buyers Products includes everything you need to set up a 3 line installation with return line filtration, including a 25 micron filter. Having a third line -- a dedicated return hose -- in your dump pump hydraulic system gives you more efficient operation from faster cycle times. Adding a return line filter keeps fluid free from contaminants and extends the life of your system components. This 3 line installation is specially designed to handle high-return flow rates up to 100 GPM. It features dual 25 micron return line filters in a space-saving over-under design.
Specifications
| Filter Rating | 25 |
|---|---|
| Flow Rating | 100 |
Advanced Hydraulic System Optimization: The 3 Line Filtration Kit with Over-Under Filter
In the realm of heavy-duty commercial vehicles and industrial machinery, hydraulic systems are the workhorses that facilitate essential functions, from dump truck operation to various material handling applications. The efficiency, longevity, and reliability of these systems are paramount for operational continuity and cost-effectiveness. The 3 Line Filtration Kit from Buyers Products represents a significant advancement in hydraulic system optimization, specifically engineered to enhance performance and protect critical components through superior fluid management.
The Imperative of Dedicated Return Line Filtration
Traditional hydraulic systems often employ two lines: a pressure line and a common return line that doubles as a suction line for the pump. While functional, this configuration introduces inherent inefficiencies and risks. The 3 Line Filtration Kit fundamentally transforms this setup by introducing a dedicated return line, creating a true three-line hydraulic circuit. This architectural change yields immediate benefits:
- Enhanced Operational Efficiency: With a dedicated return line, hydraulic fluid can flow back to the reservoir unimpeded by the suction demands of the pump. This separation prevents cavitation, reduces back pressure on the pump, and allows for faster, smoother cycle times. For applications like dump truck operation, this translates directly to quicker lifting and lowering, increasing productivity and reducing engine idle time.
- Superior System Protection: The most critical aspect of the 3 Line Filtration Kit is its integrated return line filtration. Hydraulic fluid is susceptible to contamination from various sources, including internal wear particles, external ingress through seals and breathers, and degradation products from the fluid itself. These contaminants, even microscopic ones, can cause abrasive wear, sticking of valves, and premature failure of pumps, motors, and cylinders. By filtering the fluid returning to the reservoir, the kit ensures that the cleanest possible fluid is available for the pump, significantly extending the life of all hydraulic components.
- Optimized Fluid Purity: The kit utilizes a 25-micron filter rating. To put this into perspective, the average human hair is approximately 70 microns thick. A 25-micron filter captures particles significantly smaller than what is visible to the naked eye, effectively removing the vast majority of abrasive contaminants that cause wear in hydraulic systems. This level of filtration is crucial for maintaining ISO cleanliness codes and ensuring the optimal performance of precision hydraulic components.
Technical Deep Dive: The Over-Under Filter Design and High Flow Capacity
One of the standout features of this kit is its innovative over-under filter design, which is not merely a space-saving solution but also a testament to intelligent engineering for demanding applications. The kit is specifically designed to handle high-return flow rates up to an impressive 100 GPM (Gallons Per Minute).
-
Dual Filter Configuration: Instead of a single, large filter element, the over-under design incorporates dual 25-micron return line filters. This parallel filtration approach offers several advantages:
- Increased Surface Area: Two filter elements provide a larger total filtration surface area compared to a single filter of similar housing dimensions. This allows for higher flow rates with minimal pressure drop across the filters, ensuring that the system's performance is not compromised by restrictive filtration.
- Extended Service Intervals: With more filtration media, the filters can capture a greater volume of contaminants before reaching their saturation point. This translates to longer filter service intervals, reducing maintenance downtime and associated costs.
- Redundant Filtration (Implicit): While not a true redundant system in the sense of completely independent paths, the dual filter setup offers a degree of robustness. Should one filter element begin to blind prematurely or experience localized flow restrictions, the other element can still contribute to the overall filtration process, maintaining system cleanliness until maintenance is performed.
- Space Optimization: The "over-under" nomenclature precisely describes the stacking of these dual filters. This vertical arrangement significantly reduces the footprint required for the filtration unit, making it ideal for installations where mounting space is at a premium, a common challenge in commercial vehicle chassis and compact machinery.
- High Flow Rating (100 GPM): The ability to accommodate flow rates up to 100 GPM is a critical specification for heavy-duty hydraulic applications. Many dump pumps and other high-performance hydraulic systems generate substantial return flows, especially during rapid retraction or lowering cycles. Insufficiently sized filtration can lead to excessive back pressure, cavitation, and even damage to the filter elements themselves. The 100 GPM rating ensures that this kit can effectively manage the fluid dynamics of robust hydraulic systems without becoming a bottleneck, thereby preserving the integrity and performance of the entire circuit. This capacity is particularly important for preventing surge pressures that can occur during dynamic operations, protecting seals and hoses from premature failure.
Components and System Integration
The 3 Line Filtration Kit is comprehensive, providing "everything you need to set up a 3 line installation." While specific components may vary slightly, a typical kit would include:
- Filter Head Assembly: The robust casting or manifold that houses the dual filter elements and provides inlet and outlet ports. This head is designed to withstand the pressures and vibrations inherent in hydraulic systems.
- Filter Elements: The two 25-micron filter cartridges, engineered for efficient particle capture and resistance to fluid degradation. These elements are typically spin-on or cartridge-type for ease of replacement.
- Mounting Hardware: Brackets and fasteners necessary to securely integrate the filter assembly into the vehicle or machinery chassis.
- Hoses and Fittings (Potentially): While not explicitly stated, a complete kit often includes the necessary hydraulic hoses and JIC/ORB fittings to connect the return line from the hydraulic valve to the filter inlet, and from the filter outlet to the hydraulic reservoir. These components must be rated for the operating pressures and flow rates of the system to ensure leak-free and reliable operation.
- Pressure Gauge or Indicator (Optional but Recommended): Some advanced kits include or recommend the integration of a differential pressure indicator across the filter elements. This gauge provides a visual indication of filter condition, alerting operators when elements are approaching saturation and require replacement, preventing bypass or damage.
Integrating this kit into an existing or new hydraulic system involves connecting the dedicated return line from the directional control valve (or other hydraulic actuators) to the inlet of the filter assembly. The outlet of the filter assembly then connects directly to the hydraulic reservoir. This ensures that all fluid returning to the reservoir passes through the filters, maintaining optimal fluid cleanliness.
The Economic and Operational Benefits of Proactive Filtration
Investing in a high-quality filtration system like the 3 Line Filtration Kit offers substantial returns beyond mere compliance with industry best practices:
- Reduced Maintenance Costs: By preventing abrasive wear and contamination-induced failures, the kit dramatically extends the lifespan of expensive hydraulic components such such as pumps, motors, cylinders, and valves. This reduces the frequency and cost of component replacements and associated labor.
- Minimized Downtime: Component failures lead to unplanned downtime, which can be extremely costly in commercial operations. Proactive filtration ensures greater system reliability, minimizing the risk of breakdowns and maximizing equipment uptime.
- Extended Fluid Life: Clean hydraulic fluid degrades slower. By continuously removing contaminants and preventing oxidation catalysts, the filtration kit helps preserve the chemical and physical properties of the hydraulic fluid itself, extending its service life and reducing the frequency of fluid changes. This is not only an economic benefit but also an environmental one, reducing waste fluid generation.
- Improved Performance Consistency: Contaminated fluid can lead to erratic operation, sluggish responses, and reduced power output. Clean fluid ensures that hydraulic systems operate consistently at their peak performance, providing predictable and reliable functionality.
- Compliance with Warranty Requirements: Many hydraulic component manufacturers specify strict fluid cleanliness standards as a condition of warranty. Implementing a robust filtration system helps meet these requirements, protecting your investment.
- Enhanced Safety: A well-maintained hydraulic system with clean fluid is a safer system. Reduced risk of component failure means fewer unexpected operational events, contributing to a safer working environment for operators and surrounding personnel.
Applications and Target Audience
The 3 Line Filtration Kit with Over-Under Filter is ideally suited for a wide range of heavy-duty and industrial applications, including but not limited to:
- Dump Trucks and Trailers: For hydraulic dump bodies, ensuring efficient and reliable lifting and lowering mechanisms.
- Waste Management Vehicles: Refuse trucks, compactors, and balers that rely on powerful hydraulic cylinders.
- Construction Equipment: Excavators, loaders, dozers, and other heavy machinery with demanding hydraulic systems.
- Agricultural Machinery: Tractors, harvesters, and implements utilizing hydraulic power.
- Material Handling Equipment: Forklifts, telehandlers, and industrial conveyors.
- Any Hydraulic System Requiring Enhanced Performance and Component Protection: Systems operating in harsh environments or those with high-value components will particularly benefit from this advanced filtration solution.
The primary target audience includes fleet managers, maintenance supervisors, equipment owners, and hydraulic system designers who prioritize operational efficiency, component longevity, and total cost of ownership reduction.
Conclusion
The 3 Line Filtration Kit with Over-Under Filter from Buyers Products is more than just an accessory; it is an essential upgrade for any demanding hydraulic system. By establishing a dedicated return line and implementing sophisticated, high-flow dual 25-micron filtration in a space-saving design, this kit addresses the critical challenges of hydraulic fluid contamination and system efficiency. It delivers tangible benefits in terms of extended component life, reduced maintenance, minimized downtime, and enhanced operational performance. For businesses and operators who depend on the reliable and efficient functioning of their hydraulic equipment, this kit represents a strategic investment in long-term operational success and asset preservation. Its technical specifications and thoughtful design underscore a commitment to engineering excellence, providing a robust solution for maintaining the health and performance of vital hydraulic systems.
