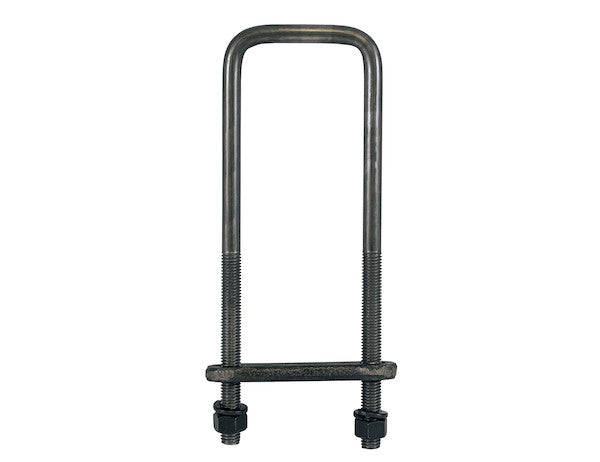

Buyers Products Square Bend U-Bolt Kit with tie bars and hardware is a complete kit for mounting a body or a truck box to your truck chassis. The kit features durable Grade 5 hardware and is available in a variety of lengths. It contains the following: four square bend 5/8 in. U-Bolts, eight 5/8 in. hex nuts, eight 5/8 in. split lock washers and four 1/2 in. thick tie bars. Tie bars are forged steel construction for superior strength.
Specifications
| Center Spacing (in.) | 4.25 |
|---|---|
| Length (in.) | 12.00 |
The Buyers Products 12 Inch Square Bend 5/8 Inch U-Bolt Kit, provided in a comprehensive 4-set package, represents a critical component solution for the robust and secure attachment of various truck bodies and auxiliary equipment to commercial vehicle chassis. Engineered for demanding heavy-duty applications, this kit transcends a mere collection of fasteners; it is a meticulously designed fastening system formulated to ensure structural integrity, operational safety, and long-term reliability in the most challenging operational environments. The precise combination of high-grade materials, stringent manufacturing processes, and thoughtful component integration distinguishes this kit as an indispensable asset for fleet maintenance professionals, specialized truck builders, and equipment integrators who prioritize durability and performance. Its core function revolves around establishing a steadfast mechanical linkage between the superstructure and the vehicle's foundational frame, mitigating dynamic stresses and vibrational forces inherent to commercial transport. This assembly is designed to provide unparalleled clamping force and stability, ensuring that truck bodies, service equipment, dump beds, and other critical attachments remain securely affixed under the most arduous operating conditions, thereby enhancing vehicle safety and prolonging the service life of both the chassis and its mounted components.
Detailed Component Analysis: The 5/8 Inch Square Bend U-Bolts
Central to the kit’s formidable strength are the four included square bend U-bolts, each featuring a nominal diameter of 5/8 inch and an effective leg length of 12 inches. These U-bolts are not merely bent rods; they are precision-engineered fasteners crafted from high-strength alloy steel, typically a medium carbon steel such as SAE 1038 or equivalent, which has undergone precise heat treatment, including quenching and tempering, to achieve optimal mechanical properties. This process imparts a fine-grained microstructure that contributes directly to their superior tensile strength, yield strength, and fatigue resistance—critical attributes for components subjected to continuous cyclic loading in heavy-duty vehicle applications. The material is meticulously cold-formed to achieve its final shape, a manufacturing technique that inherently improves the material's grain structure and increases its density, leading to enhanced material strength and durability compared to hot-forming processes.
The choice of a 5/8 inch diameter is deliberate, offering a substantial cross-sectional area capable of withstanding significant shear and tensile forces, making it eminently suitable for mounting substantial body weights and resisting the dynamic loads encountered during vehicle operation, including braking, acceleration, cornering, and off-road articulation. The "square bend" configuration is a critical design feature, specifically chosen for its efficacy in securing flat components, such as chassis frame rails, body crossmembers, or mounting pads. Unlike round bend U-bolts which are better suited for cylindrical objects, the square geometry provides an inherently more stable and comprehensive clamping surface against the parallel sides of rectangular or box-section chassis frames. This design minimizes localized stress points and ensures an even distribution of compressive forces across the contact area, thereby preventing rotational slippage and lateral movement of the mounted assembly. This controlled interface is paramount for maintaining alignment and preventing structural fatigue over extended periods of service, particularly in applications where the mounted body experiences significant inertial forces.
Furthermore, the threads on these U-bolts are typically formed through a cold-rolling process rather than traditional cutting. Cold-rolled threads possess a distinct mechanical advantage: the material’s grain flow is uninterrupted and actually follows the contour of the threads, resulting in significantly increased tensile strength, shear strength, and superior resistance to fatigue compared to cut threads, where the material fibers are severed, creating potential stress risers. This manufacturing technique ensures that the threaded portions, often the weakest link in a fastener, are fortified to withstand the high torque values required for secure installation and the continuous vibrational stresses of heavy-duty use. While not explicitly detailed, U-bolts for such demanding applications are commonly finished with a robust protective coating, such as electro-galvanized zinc plating. This plating provides enhanced corrosion resistance against environmental elements like moisture, road salts, chemicals, and abrasive debris, thereby extending their operational lifespan and preserving their mechanical integrity. The 12-inch length provides ample reach for accommodating various frame depths and additional mounting hardware or spacers as required by specific body installations, ensuring versatile application across a wide spectrum of commercial vehicle chassis types, from medium-duty pickups converted to heavy-duty vocational trucks.
The Role of Forged Steel Tie Bars
Integral to the structural integrity and load distribution of the mounting system are the four 1/2 inch thick tie bars, distinguished by their forged steel construction. Forging is a thermomechanical manufacturing process that fundamentally alters the microstructure of the metal, compelling its internal grain flow to conform to the shape of the finished component. This process imparts several critical advantages over other manufacturing methods like casting, stamping, or fabrication from plate steel. Forged steel exhibits superior toughness, higher tensile strength, and exceptional impact resistance because the continuous grain flow eliminates internal voids, gas pockets, and other metallurgical defects that can act as stress concentrators and points of localized failure. The result is a component with unparalleled structural homogeneity, enhanced resilience to dynamic and static loads, and a significantly longer fatigue life, crucial for components in high-stress vehicular applications.
The primary function of these 1/2 inch thick tie bars is multi-faceted and essential for the overall performance of the U-bolt assembly. Firstly, they act as a robust load-spreading element, distributing the concentrated clamping force exerted by the U-bolts evenly across a larger surface area of both the chassis frame and the mounted body’s subframe. This prevents localized deformation, crushing, or yielding of the frame material, which is particularly crucial for chassis components that might not be designed to withstand concentrated point loads without auxiliary reinforcement. By distributing the load, the tie bars mitigate stress concentrations, thereby preventing premature fatigue and potential structural damage to the vehicle’s fundamental framework. Secondly, the tie bars precisely maintain the parallel spacing of the U-bolt legs. This controlled spacing is essential for ensuring consistent clamping pressure along the entire contact length and preventing the U-bolts from splaying outwards under load, which could compromise the clamping integrity and introduce unintended stresses into the fastened components. This mechanical constraint ensures that the U-bolts function as intended, maintaining their geometry and maximizing their clamping efficiency.
Thirdly, the substantial 1/2-inch thickness of the tie bars provides significant rigidity and resistance to bending or deformation. This ensures that the tie bar itself does not yield or flex under the considerable torque applied to the U-bolt nuts, thus guaranteeing that the full clamping force is transmitted efficiently and uniformly to the connection. Any deformation of the tie bar would reduce the effective preload in the U-bolts, compromising the security of the joint. Their superior strength and resistance to plastic deformation, derived from the forging process, guarantee that these critical components will not yield or fail even under extreme operational conditions, reinforcing the overall durability and safety of the entire mounting assembly. In essence, the tie bars are not merely passive spacers but active structural components that enhance load distribution, maintain geometric integrity, and ensure the long-term reliability of the U-bolt fastening system.
The Significance of Grade 5 Hardware: Hex Nuts and Split Lock Washers
The integrity of any bolted connection, especially those subjected to the extreme forces prevalent in commercial vehicle applications, is intrinsically linked to the quality and specification of its complementary hardware. This Buyers Products kit includes eight 5/8 inch hex nuts and eight 5/8 inch split lock washers, all meticulously manufactured to conform to Grade 5 specifications, a standard established by the Society of Automotive Engineers (SAE J429) for fasteners used in demanding structural applications.
Grade 5 Hex Nuts: These nuts are manufactured from medium carbon steel, similar to the U-bolts, and undergo a controlled heat treatment process involving quenching and tempering. This process is critical for achieving specific mechanical properties that are precisely matched to the strength characteristics of the U-bolts. According to SAE J429 standards, Grade 5 fasteners, including these nuts, possess a minimum tensile strength of 120,000 psi (827 MPa) and a proof load of 85,000 psi (586 MPa). This high strength ensures that the nuts can withstand the significant torque required to achieve the necessary clamping force without stripping threads, deforming, or fracturing. The hex design provides ample surface area for wrench engagement, facilitating precise and secure tightening with standard tools, which is vital for achieving accurate torque values during installation. The compatibility in grade between the U-bolts and nuts is absolutely crucial; using a lower-grade nut would create a weak link in the entire connection, as the nut would fail (either by stripping threads or fracturing) before the U-bolt could achieve its intended clamping force or full preload. The full thread engagement facilitated by these precisely manufactured nuts, combined with proper torqueing, creates a high preload in the U-bolt, which is the foundational principle of a durable, vibration-resistant, and self-locking connection.
5/8 Inch Split Lock Washers: While often superficially perceived, split lock washers play a vital, active role in maintaining the security of a bolted joint, particularly in environments subject to severe vibration, dynamic loads, and significant thermal cycling. These washers are fabricated from high-carbon spring steel (typically SAE 1060-1090) and are heat-treated to impart a specific spring action and hardness. As the nut is tightened, the split lock washer flattens, and its inherent spring tension exerts a continuous axial force against the nut and the mating surface. This continuous spring force works to maintain tension on the bolt and nut threads, effectively resisting loosening caused by external forces such as shock, vibration, or thermal expansion and contraction cycles that can induce small movements within the joint. The "split" design features sharp edges that are designed to bite into both the underside of the nut and the mating surface (e.g., the tie bar or frame), providing an additional frictional lock that further impedes unwanted rotation of the nut. In heavy-duty truck applications, where constant vibration from engine operation, road imperfections, and shifting loads are commonplace, the preventative action of split lock washers against fastener loosening is indispensable for operational safety and preventing catastrophic failures of mounted equipment. Their inclusion in the kit underscores a comprehensive engineering approach to ensuring the long-term stability and reliability of the entire fastening system, mitigating the risk of critical component detachment.
Engineering Specifications and Application Versatility
The specific dimensions of this U-bolt kit, including a 4.25 inch center spacing and a 12.00 inch length, are meticulously engineered to accommodate a broad range of standard commercial truck chassis configurations, reflecting a deep understanding of industry requirements and vehicle architecture.
Center Spacing (4.25 inches): This critical dimension dictates the lateral distance between the centerline of the U-bolt legs. A 4.25-inch center spacing is specifically optimized for compatibility with many common truck chassis frame rail widths, ensuring a snug and secure fit around the frame. Modern truck frames often feature flange widths in this range, making this spacing ideal for creating a direct and efficient clamping force. This precise measurement is essential for effective clamping, preventing excessive gaps that could lead to inadequate pressure distribution or, conversely, ensuring that the U-bolt legs are not spread too wide, which could compromise the clamping integrity and potentially deform the frame. The design prioritizes a precise mechanical interface between the U-bolt, the frame, and the tie bar to achieve maximum clamping efficiency and optimal load transfer, minimizing any play or movement in the mounted assembly.
Length (12.00 inches): The 12-inch leg length provides substantial vertical reach, allowing the kit to secure bodies and equipment to chassis frames of varying thicknesses, including those with additional liners, auxiliary frame reinforcements, or robust mounting plates. This extended length offers significant flexibility for mounting applications that require additional clearance or attachment points beneath the frame. Examples include securing crossmembers of a flatbed, mounting the subframe of a dump body, attaching specialized equipment such as crane pedestals, or affixing large auxiliary components like fuel tanks, air tanks, or toolboxes. The ample thread length provided by the 12-inch legs ensures sufficient thread engagement even when accommodating thicker frame materials or multiple layers of structural components, guaranteeing that adequate preload can be achieved without running out of thread. This versatility makes the kit suitable for a wide array of vocational truck applications.

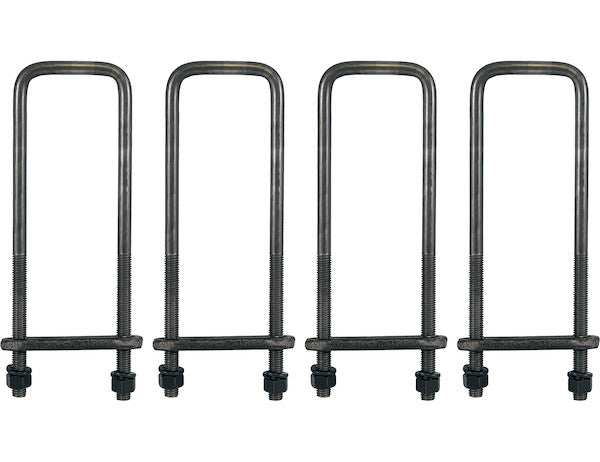

The comprehensive nature of the kit, containing four complete sets of U-bolts, nuts, washers, and tie bars, signifies its readiness for immediate implementation for larger body installations, such as an entire truck bed or a substantial service body. This holistic approach simplifies procurement, reduces installation time by providing all necessary matching components, and guarantees that all primary attachment points benefit from a uniformly high level of engineering excellence and material strength. It eliminates the guesswork and potential incompatibility issues that can arise when sourcing individual components, ensuring a cohesive and reliably strong fastening solution.
Installation Best Practices and Operational Longevity
While the components themselves are engineered for peak performance and durability, proper installation is paramount to achieving the full benefits and ensuring the operational longevity and safety of this U-bolt kit. Professional installation practices typically involve a staggered, progressive tightening sequence for the nuts, ensuring that the clamping force is applied evenly and gradually across the tie bar and chassis frame. This methodical approach prevents localized stresses, potential distortion of the frame rails, and uneven distribution of pressure, which could lead to premature wear or failure. The use of a properly calibrated torque wrench is indispensable to achieve the precise preload required for the Grade 5 hardware. Accurate torqueing maximizes the connection’s resistance to loosening and fatigue, ensuring that the U-bolts are operating within their elastic limit and providing optimal clamping force without being overstressed.
Furthermore, a critical step often recommended for heavy-duty fastening systems in dynamic environments is a re-torque procedure after an initial period of service. This procedure, typically performed after 50-100 miles or a few days of operation, accounts for any initial "settling" of components, compression of paint layers or protective coatings, embedding of fasteners into mating surfaces, or slight relaxation of material stresses within the joint. Re-torqueing ensures that the optimal clamping force is maintained throughout the operational life of the vehicle, which is vital for preventing gradual loosening and maintaining structural integrity. Regular inspections of the U-bolt kits, particularly after severe operating conditions, are also advised to identify any signs of wear, corrosion, or loosening, allowing for proactive maintenance and preventing potential safety hazards. The inherent durability and corrosion resistance of the Grade 5 components and forged tie bars contribute significantly to reduced maintenance intervals and prolonged service life, minimizing costly downtime for commercial fleets and maximizing operational efficiency. Adherence to these best practices is not merely recommended but is a critical aspect of ensuring the safety and reliable performance of any truck body or equipment mounting.
Conclusion: The Foundation of Reliable Commercial Vehicle Integration
In the demanding and high-stakes world of commercial vehicle operation, the integrity of every structural connection is non-negotiable. The Buyers Products 12 Inch Square Bend 5/8 Inch U-Bolt Kit - 4 Sets stands as a testament to uncompromising quality and robust engineering principles. By integrating high-strength 5/8 inch square bend U-bolts crafted from heat-treated alloy steel with cold-rolled threads, formidable 1/2 inch thick forged steel tie bars, and precisely matched Grade 5 securing hardware (hex nuts and split lock washers), this kit provides a meticulously designed and supremely reliable solution for mounting diverse truck bodies and auxiliary equipment onto chassis frames. Its technical specifications—a 4.25-inch center spacing for optimal frame compatibility and a 12-inch length for versatile application across varying frame depths and mounting requirements—are precisely calibrated for peak performance and structural synergy across a wide array of heavy-duty applications.
This comprehensive kit is engineered not merely to join components, but to forge a lasting, secure, and resilient connection that can withstand the perpetual rigors of continuous operation, severe dynamic loading, and harsh environmental exposures. The synergistic design, where each component’s strength and function complement the others, ensures a fastening system that resists vibrational loosening, maintains preload under stress, and distributes loads effectively across the chassis. For fleet managers, truck body manufacturers, equipment integrators, and maintenance professionals, specifying the Buyers Products U-Bolt Kit means investing in an integrated fastening system that embodies superior material science, advanced manufacturing techniques, and a profound understanding of the operational demands placed upon commercial vehicles. It is the definitive choice for ensuring the safety, stability, and enduring performance of your vehicle’s crucial load-bearing assemblies, providing peace of mind, enhancing compliance with safety standards, and contributing directly to improved operational efficiency and maximized asset longevity over the entire lifespan of the commercial vehicle.
