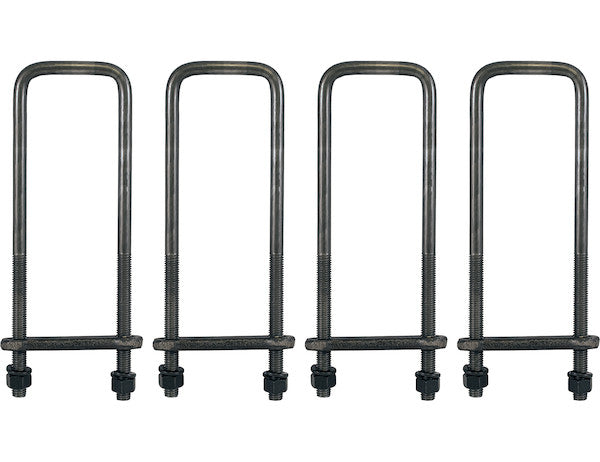

Buyers Products Square Bend U-Bolt Kit with tie bars and hardware is a complete kit for mounting a body or a truck box to your truck chassis. The kit features durable Grade 5 hardware and is available in a variety of lengths. It contains the following: four square bend 5/8 in. U-Bolts, eight 5/8 in. hex nuts, eight 5/8 in. split lock washers and four 1/2 in. thick tie bars. Tie bars are forged steel construction for superior strength.
Specifications
| Center Spacing (in.) | 4.25 |
|---|---|
| Length (in.) | 22.00 |
The Buyers Products 22 Inch Square Bend 5/8 Inch U-Bolt Kit, in a four-set configuration, is an indispensable solution for robustly attaching truck bodies, utility boxes, flatbeds, and custom fabrications to a vehicle's chassis. Engineered for demanding heavy-duty applications, this comprehensive kit provides superior structural integrity, exceptional durability, and unparalleled reliability. It combines precision-engineered square bend U-bolts, high-strength tie bars, and complementary Grade 5 fastening hardware, ensuring a complete, ready-to-install system. Material selection and stringent manufacturing standards ensure the kit withstands dynamic loads, vibrations, and corrosive elements, safeguarding mounted equipment and vehicle longevity. This product offers engineering prowess and practical utility where structural integrity and safety are paramount.
Precision-Engineered Square Bend U-Bolts
At the core of this robust mounting system are the four 22-inch square bend U-bolts, each 5/8-inch in diameter. These are critical structural components, encircling the truck chassis frame to provide primary clamping force. The square bend configuration offers enhanced stability and optimal load distribution on rectangular chassis rails, ensuring broad contact, minimizing localized stress, and preventing frame deformation. The 22-inch length accommodates various chassis dimensions and body types. A critical center spacing of 4.25 inches aligns with industry-standard frame rail dimensions, facilitating straightforward installation and proper engagement with tie bars. Each U-bolt is manufactured from high-grade steel, cold-formed for consistent dimensions and superior material properties, enhancing yield and tensile strength through strain hardening. Threads are typically roll-formed, preserving grain flow for significantly stronger threads less susceptible to stripping under high torque. This precision and strength are fundamental to the kit's secure and reliable attachment, even under demanding operational conditions.
Superior Strength with Grade 5 Hardware
The kit's exceptional performance is underpinned by Grade 5 hardware, fasteners meeting SAE J429 requirements. Grade 5 bolts, identifiable by three radial lines, are medium carbon steel, quenched and tempered to achieve a minimum tensile strength of 120,000 psi and yield strength of 92,000 psi. These properties are critical where fasteners endure constant stress, vibration, and shock loads. Using matching Grade 5 hardware for all components—U-bolts, hex nuts, and split lock washers—prevents premature failure of weaker elements, maintaining overall structural integrity. This provides a significantly higher safety factor than lower grades, crucial for heavy payloads. Such superior strength enhances immediate security, contributes to long-term durability, operational safety, and offers improved resistance to fatigue failure over the vehicle's service life.
Reliable Fastening: Hex Nuts and Split Lock Washers
The kit includes eight 5/8-inch Grade 5 hex nuts and eight 5/8-inch Grade 5 split lock washers. The hex nuts, precision-machined from high-strength steel, feature a standard coarse thread (UNC), preferred in heavy-duty applications for its robust nature, ease of assembly, and resistance to galling. The larger thread pitch provides more material in the thread root, increasing shear strength and reducing damage susceptibility. The hex configuration allows effective torque application using standard wrenches, facilitating proper installation and achieving specified clamping force. Proper torque is paramount, generating the necessary preload—internal tension holding the joint together. Without adequate preload, the joint can loosen, leading to potential catastrophic failure. Complementing these are the 5/8-inch split lock washers, typically hardened spring steel, providing critical anti-loosening function. When compressed, their split ends exert a spring force and bite into the nut and bearing surface, resisting vibrational loosening. Their inclusion significantly enhances the reliability of bolted joints in environments prone to vibration and thermal cycling, ensuring long-term stability and structural integrity.
Forged Steel Tie Bars: The Foundation of Stability
Four 1/2-inch thick tie bars, meticulously crafted from forged steel, are profoundly critical components. The choice of forged steel maximizes strength, durability, and resistance to deformation under extreme stress. Forging refines the metal's grain structure, aligning grain flow with the part's contour, providing superior strength, impact resistance, and fatigue life over cast or machined parts. This improved microstructure allows the tie bar to withstand significantly higher loads without yielding or fracturing, essential for distributing immense clamping forces across the chassis frame. The tie bar's primary function is twofold: firstly, to provide a rigid, flat surface for the U-bolt nuts, ensuring uniform distribution of clamping force over a larger area of the mounted body, preventing localized crushing. Secondly, it acts as a bridge between the U-bolt legs, preventing spreading under load and maintaining critical center spacing. This ensures the U-bolt remains tightly wrapped around the chassis frame, resisting lateral and vertical movements. The 1/2-inch thickness provides necessary rigidity and strength for flawless performance, preventing flex and ensuring consistent preload, contributing to overall structural rigidity and safety of the vehicle's mounted superstructure.
Advanced Engineering Principles for Optimal Performance
The kit's design and material selection are rooted in sound engineering principles. The system relies on clamping force, where U-bolt tension creates a compressive force, securely gripping the chassis and mounted body. This preload stiffens the joint, resisting shear forces and preventing relative movement; crucial to avoid fretting, wear, and fatigue failure. Uniform application of this force, facilitated by robust tie bars, distributes stresses evenly, preventing concentrations. The precise 4.25-inch center spacing ensures correct U-bolt alignment with chassis rails, optimizing force transfer. Grade 5 steel for fasteners provides excellent tensile and yield strength against static and dynamic loads. Forged steel tie bars ensure superior impact toughness and fatigue resistance. Fatigue, a significant concern in vehicle applications, is combated by the high fatigue strength of forged steel and roll-formed U-bolt threads, extending connection service life. While surface finishes aren't specified, typical protection like electro-galvanization is often applied to prevent rust. The holistic engineering approach ensures the kit performs effectively and endures multifaceted stresses, embodying reliability and safety.
Installation, Maintenance, and Longevity
Proper installation of the Buyers Products U-Bolt Kit is paramount for designed performance, safety, and longevity. While simplifying mounting, adherence to bolted connection best practices is essential. Position the body carefully, ensuring correct alignment and weight distribution. Position U-bolts around chassis frame rails, through tie bars and body mounting points. Apply correct torque specifications to hex nuts, utilizing a torque wrench for accuracy. Progressive tightening in a cross-pattern is recommended for even clamping force. Over-tightening risks U-bolt stretch and failure; under-tightening results in insufficient preload and loosening. After initial installation and a break-in period (e.g., 50-100 miles), re-torquing all U-bolt nuts is recommended to maintain preload after minor creep or seating. Regular inspection for loosening, corrosion, or damage is also advisable. Durable Grade 5 hardware and forged steel tie bars resist wear, but environmental factors can degrade components. Following these guidelines maximizes the kit's operational lifespan, prevents costly failures, and ensures continuous, secure attachment, contributing significantly to fleet safety and operational efficiency.
Applications and Value Proposition
The versatility of the Buyers Products U-Bolt Kit makes it ideal for a wide spectrum of heavy-duty applications. Primarily, it's used for attaching various truck bodies—dump, flatbed, utility service, specialized equipment—to chassis. It's also suitable for securing auxiliary fuel tanks, hydraulic reservoirs, air tanks, toolboxes, and other accessories directly to frame rails. For trailer fabrication, U-bolts are frequently employed for axle mounting or structural members. For custom projects, standardized dimensions and high-strength materials offer a reliable building block. The kit offers a pre-engineered, complete solution, saving significant time in sourcing and verifying individual components. Providing four sets of U-bolts with nuts, washers, and tie bars ensures all elements are matched in grade, size, and design, eliminating potential weakest links. This integrated approach mitigates risks from mismatched components. Fleet managers and owner-operators benefit from reduced downtime and long-term cost savings from exceptional durability and minimal maintenance. Investing in this comprehensive, Grade 5 U-bolt kit means investing in peace of mind, knowing critical chassis connections meet the highest standards of safety, reliability, and performance.
In summary, the Buyers Products 22 Inch Square Bend 5/8 Inch U-Bolt Kit-4 Sets represents a pinnacle of engineering excellence. Every aspect—from the precise dimensions and cold-formed, roll-threaded construction of the U-bolts to the superior mechanical properties of the Grade 5 hex nuts, split lock washers, and the unparalleled strength of the 1/2-inch forged steel tie bars—has been meticulously considered. This comprehensive kit delivers an integrated system designed to withstand rigorous operational stresses, ensuring secure, stable, and long-lasting attachment of critical truck components. Its robust design minimizes structural failure risks, reduces maintenance frequency, and significantly enhances vehicle safety. For professionals demanding uncompromised quality, reliability, and ease of installation, this kit provides a definitive, high-performance solution exemplifying durability and engineering precision, offering enduring value and security for diverse industrial and commercial needs.
