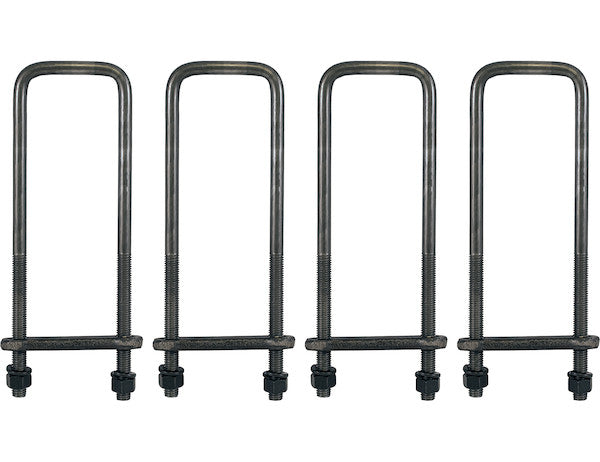

Buyers Products Square Bend U-Bolt Kit with tie bars and hardware is a complete kit for mounting a body or a truck box to your truck chassis. The kit features durable Grade 5 hardware and is available in a variety of lengths. It contains the following: four square bend 5/8 in. U-Bolts, eight 5/8 in. hex nuts, eight 5/8 in. split lock washers and four 1/2 in. thick tie bars. Tie bars are forged steel construction for superior strength.
Specifications
| Center Spacing (in.) | 4.25 |
|---|---|
| Length (in.) | 24.00 |
The Buyers Products 24 Inch Square Bend 5/8 Inch U-Bolt Kit, a comprehensive four-set package, represents an engineered solution for the secure and robust attachment of truck bodies or boxes to vehicle chassis. This system is meticulously designed to meet the rigorous demands of commercial and heavy-duty applications, where structural integrity, vibration resistance, and long-term durability are paramount. The kit's composition, featuring high-grade materials and precise dimensional specifications, ensures an optimal interface between the auxiliary structure and the primary vehicle frame.
Precision Engineering of the Square Bend U-Bolt
At the core of this mounting system are the four square bend U-bolts, each precisely manufactured with a 5/8-inch diameter and an overall length of 24.00 inches. The square bend geometry is a critical design feature, specifically chosen for applications involving square or rectangular frame members, providing a superior clamping surface and minimizing localized stress concentrations. This design distributes the clamping force more evenly across the chassis rail, which is vital for preventing frame distortion and ensuring the long-term structural integrity of both the chassis and the mounted body.
The 5/8-inch diameter of the U-bolts signifies a substantial cross-sectional area, directly correlating to a high tensile and shear strength capacity. Manufactured from high-strength steel, these U-bolts are designed to withstand significant static and dynamic loads encountered during vehicle operation, including forces from acceleration, braking, cornering, and constant vibration. Manufacturing processes for these U-bolts often include cold forming or hot bending, critically followed by thread rolling. Thread rolling, superior to cutting, preserves the material's grain structure, significantly enhancing fatigue resistance and eliminating stress risers at thread roots, common points of failure under cyclic loading. The precise 4.25-inch center spacing between the U-bolt legs is engineered to accommodate standard truck chassis dimensions, ensuring a snug and secure fit that is critical for maximizing the clamping efficiency and overall stability of the mounted structure.
Superior Fastening with Grade 5 Hardware
A mounting system is only as strong as its weakest link, and recognizing this, Buyers Products has equipped this kit with Grade 5 hardware. This specification is crucial and denotes a specific set of mechanical and material properties essential for heavy-duty fastening applications. Grade 5 bolts, nuts, and washers are manufactured from medium carbon steel that has undergone a quenching and tempering heat treatment process. This heat treatment significantly enhances the material's strength, hardness, and toughness, making it far superior to lower-grade fasteners.
Specifically, Grade 5 fasteners, defined by SAE J429 standards, possess a minimum tensile strength of 120,000 psi (for diameters up to 1 inch), a minimum yield strength of 92,000 psi, and a proof load of 85,000 psi, with Rockwell hardness typically C25 to C34. These properties ensure that the included 5/8-inch hex nuts and split lock washers can withstand the substantial clamping forces applied during installation and maintain that pre-load throughout the service life of the vehicle. The hex nuts, designed for optimal torque transmission, provide a reliable interface with the U-bolt threads, facilitating precise tensioning. The split lock washers play a critical role in mitigating the effects of vibration and thermal cycling. By creating a spring action, they resist loosening, maintaining continuous frictional resistance and preventing the nut from backing off its pre-stressed position, thereby ensuring sustained joint integrity.
Uncompromised Strength from Forged Steel Tie Bars
Complementing the U-bolts and Grade 5 hardware are the four 1/2-inch thick tie bars, a vital component for effective load distribution and structural reinforcement. These tie bars are constructed from forged steel, a material specification that signifies a superior level of metallurgical integrity compared to other manufacturing methods. Forging, a manufacturing process shaping metal through compressive forces, refines the material's grain structure, aligning it along contours and eliminating internal voids. This results in components with significantly enhanced strength, ductility, impact resistance, and superior fatigue properties. The continuous grain flow achieved through forging makes the tie bars exceptionally resilient to the complex stresses and dynamic loads encountered in vehicle operations, minimizing the risk of crack initiation and propagation.
The substantial 1/2-inch thickness of these tie bars is engineered to provide robust rigidity and effectively distribute the U-bolt clamping force across a wider area of the truck body or frame. This widespread distribution is crucial for preventing localized deformation or damage to the mounted structure, particularly when dealing with heavy or irregularly shaped loads. The tie bars act as a crucial interface, translating the linear clamping force of the U-bolts into a distributed pressure that secures the truck body uniformly, enhancing overall stability and preventing racking or twisting under dynamic conditions. Their inherent strength and resistance to bending ensure that the U-bolts maintain their optimal tension and that the entire assembly remains steadfastly secured over extended periods of operation, even under severe road conditions or heavy-duty usage.
Holistic System Design and Application Versatility
The Buyers Products 24 Inch Square Bend 5/8 Inch U-Bolt Kit is presented as a complete system, an approach that offers significant advantages to professional installers and fleet managers. By providing all necessary components—U-bolts, nuts, washers, and tie bars—in a single package, the kit eliminates the guesswork and potential incompatibility issues that can arise when sourcing individual components. This comprehensive packaging ensures that every part is engineered to work synergistically, contributing to the overall strength, reliability, and ease of installation of the mounting assembly. The specified dimensions, including the 24-inch length and 4.25-inch center spacing, are carefully selected to cater to a broad range of medium to heavy-duty truck chassis configurations, making this kit highly versatile for various applications.
Typical applications for this kit include, but are not limited to, the mounting of dump bodies, service bodies, flatbed platforms, utility boxes, and other specialized equipment onto truck frames. The robust design and high-strength materials make it particularly suitable for vehicles regularly carrying heavy loads or operating in demanding environments, including construction, agriculture, and municipal service. The square bend design is particularly advantageous when attaching to chassis with square or rectangular cross-section rails, providing maximum contact area and preventing rotation or shifting of the mounted body. The inherent durability of Grade 5 hardware and forged steel tie bars ensures the secured body remains firmly attached, mitigating risks from loose loads and enhancing operational safety and regulatory compliance.
Critical Installation Protocols and Performance Assurance
The successful performance and longevity of this U-bolt kit are critically dependent on adherence to proper installation protocols. The application of correct torque specifications to the 5/8-inch hex nuts is paramount. Torque translates directly into the pre-load (tension) within the U-bolt, which is the force that holds the joint together. Insufficient torque can lead to loose connections, premature fatigue failure, and potential separation of the body from the chassis, while excessive torque can overstress the U-bolts, leading to material yield or thread damage. Installers should always consult vehicle manufacturer specifications for recommended torque values, or industry-standard guidelines for Grade 5 fasteners of this diameter. A general guideline for a 5/8-inch Grade 5 coarse thread fastener can be in the range of 170-200 ft-lbs, but specific application and lubrication factors must be considered.
Furthermore, a sequential torqueing pattern, applied in multiple stages, is highly recommended to ensure uniform clamping force distribution. This involves initially tightening all nuts to a fraction of the final torque, then progressively increasing the torque in a crisscross or opposite pattern until the final specification is reached. This methodology helps to prevent localized stress buildup and ensures that the tie bars are evenly seated against the chassis and body. Due to material settlement and initial stretching, it is also standard industry practice to re-torque all U-bolts after a specified period of initial operation (e.g., 50-100 miles or several hours of use) and periodically thereafter as part of routine maintenance. This re-torquing procedure is crucial for maintaining critical pre-load, ensuring enduring safety and stability. Adherence to these best practices is a fundamental requirement for maximizing operational life and safety performance, protecting both personnel and assets.
Engineered for Longevity and Reliability
Every component within the Buyers Products 24 Inch Square Bend 5/8 Inch U-Bolt Kit is selected and manufactured with an overarching commitment to longevity and reliability under severe operating conditions. The robust nature of Grade 5 steel, combined with the superior structural properties of forged steel tie bars, ensures exceptional resistance to wear, fatigue, and environmental degradation. While not explicitly mentioned in the primary description, U-bolt assemblies of this type are often further protected through surface treatments such as zinc plating or galvanization to enhance corrosion resistance, particularly important for components exposed to road salts, moisture, and various environmental contaminants. The inherent material properties, however, already provide a significant baseline for durability.
The design principles applied in this kit address critical engineering challenges associated with vehicular body mounting. These include managing dynamic loads, preventing relative movement between the body and chassis, and distributing stress effectively to avoid localized failure points. The precise fit afforded by the 4.25-inch center spacing and the secure grip of the square bend U-bolts, augmented by the load-spreading capability of the 1/2-inch forged tie bars, collectively contribute to a robust mechanical joint that can withstand millions of stress cycles over its operational lifespan. This meticulous engineering translates directly into reduced maintenance, minimized downtime, and enhanced safety for vehicle operators and personnel. Buyers Products' reputation for producing high-quality, dependable truck and trailer hardware is clearly reflected in the design and material specifications of this U-bolt kit, making it an indispensable choice for professionals seeking uncompromising performance for their chassis mounting applications.
Conclusion
The Buyers Products 24 Inch Square Bend 5/8 Inch U-Bolt Kit, a four-set package, represents a professionally engineered and exceptionally durable solution for securing truck bodies and boxes to chassis frames. Its construction features robust 5/8-inch square bend U-bolts, high-tensile Grade 5 hex nuts and split lock washers, and exceptionally strong 1/2-inch forged steel tie bars. This comprehensive design ensures superior load distribution, vibration resistance, and long-term structural integrity, even in the most demanding operational environments. Adhering to precise material specifications and rigorous installation protocols, this kit not only facilitates secure attachment but also significantly enhances overall safety, reliability, and service life of commercial vehicles. For fleet operators, truck body builders, and maintenance professionals, this kit provides a foundation of dependability, embodying the critical balance between material science, mechanical engineering, and practical application for heavy-duty vehicular integration.
