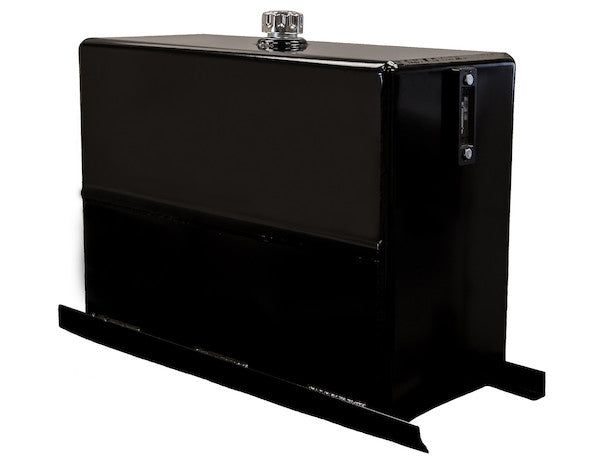

UR50S - 50 Gallon Upright Steel Hydraulic Reservoir

The Upright Steel Reservoir from Buyers Products is constructed of tough 12 Ga steel and fully baffled to keep hydraulic fluid cool. It's ideal for heavy duty dump operations and designed to fit conveniently behind the truck cab. Choose from a 50 gal or 70 gal capacity, depending on the application. Dump trucks with large cylinder applications benefit from the 70 gal size. The reservoir features 2 in. and 1-1/4 in. NPT field serviceable ports, a quarter-turn filler breather unit, and a sight/temperature gauge. A hardware mounting kit is included.

Specifications

The 50 Gallon Upright Steel Hydraulic Reservoir from Buyers Products represents a meticulously engineered component critical for the optimal functioning of demanding hydraulic systems. Designed for applications requiring robust performance and reliability, particularly within heavy-duty dump operations, this reservoir integrates advanced features with durable construction to ensure sustained efficiency and longevity of hydraulic machinery. Its upright configuration and strategic placement behind the truck cab are key design considerations that enhance operational practicality and system integrity.

Precision Engineering and Material Excellence

The foundation of this hydraulic reservoir's superior performance lies in its construction from 12-gauge carbon steel. Carbon steel, renowned for its high tensile strength and excellent weldability, provides an inherently strong and rigid structure capable of withstanding the dynamic stresses and vibrations inherent in mobile hydraulic applications. The 12-gauge specification translates to a sheet thickness of approximately 0.1084 inches (2.75 mm), a robust dimension that ensures exceptional resistance to denting, puncture, and deformation under typical operating conditions. This material choice significantly contributes to the reservoir's long-term durability and structural integrity, crucial for equipment operating in challenging environments such as construction sites, mining operations, and refuse collection.

Further enhancing the resilience of this steel construction is the advanced powder-coat finish. Unlike conventional liquid paints, powder coating applies a dry powder through electrostatic attraction, which is then cured under heat to form a hard, protective layer. This process creates a finish that is substantially more resistant to chipping, scratching, fading, and general wear than traditional finishes. For a hydraulic reservoir exposed to the elements, road salts, chemical spills, and abrasive debris, this powder coat provides a critical barrier against corrosion and degradation. The sleek black finish not only offers a professional aesthetic but also contributes to the material's ability to dissipate heat, albeit a secondary effect compared to internal baffling. The meticulous application of this coating ensures comprehensive coverage, protecting all external surfaces and extending the service life of the reservoir significantly.

Optimized Capacity and Application Versatility

With a usable capacity of 50 gallons (approximately 189 liters), this reservoir is precisely sized for a broad spectrum of heavy-duty hydraulic applications. The volumetric requirement of a hydraulic reservoir is not arbitrary; it is carefully calculated based on factors such as pump flow rate, system displacement, heat generation, and the volume changes associated with cylinder extension and retraction. A 50-gallon capacity ensures sufficient hydraulic fluid volume to accommodate thermal expansion, provide adequate residence time for fluid cooling and contaminant settling, and prevent fluid starvation to the pump, even during peak demand cycles. While the product line also offers a 70-gallon option for applications with exceptionally large cylinder volumes or higher heat loads, the 50-gallon unit is an ideal match for many standard to heavy-duty dump truck systems, offering a balanced combination of performance and compact footprint.

The "Upright" design, both in mount position and style, is a strategic choice for mobile equipment. This vertical orientation minimizes the horizontal footprint, making it exceptionally suitable for installation behind the truck cab – a common and advantageous location. This placement not only conserves valuable chassis space but also positions the reservoir in a relatively protected area, shielding it from direct impacts, road debris, and extreme environmental exposure. The upright design further aids in thermal management, presenting a larger surface area for convective heat transfer with ambient air compared to flatter, more horizontal designs, while simultaneously optimizing fluid dynamics within the tank.

Advanced Fluid Management and Thermal Regulation

A hallmark feature of this reservoir is its fully baffled interior. Baffles are internal partitions within the tank that play a crucial role in maintaining fluid quality and thermal stability. Their primary functions include:

1. Promoting Heat Dissipation: Baffles extend the flow path of the hydraulic fluid, forcing it to circulate more slowly and across a greater internal surface area. This extended travel time, combined with increased contact with the cooler tank walls, maximizes the opportunity for heat transfer from the fluid to the ambient environment. Heat is generated within hydraulic systems through various inefficiencies, such as fluid shearing, friction in lines, and pump/motor losses. Effective heat dissipation is paramount to prevent thermal degradation of the hydraulic fluid, seals, and other components, which can lead to premature system failure.
2. Reducing Aeration and Foaming: By preventing direct short-circuiting of the return fluid to the suction line, baffles allow entrapped air bubbles to rise to the surface and escape. Aeration is a significant issue in hydraulic systems, leading to reduced fluid bulk modulus, spongy actuator response, increased noise, and accelerated component wear due to the formation of micro-dieseling (tiny explosions caused by adiabatic compression of air bubbles).
3. Facilitating Contaminant Settling: The reduced turbulence and slower flow rates induced by baffling provide a quiescent zone where heavier particulate contaminants can settle out of suspension before the fluid is drawn back into the pump. This contributes significantly to overall fluid cleanliness, complementing the filtration system and extending the life of hydraulic components.
4. Minimizing Sloshing: In mobile applications, vehicles are constantly subject to accelerations, decelerations, and turns. Baffles mitigate fluid sloshing, preventing excessive agitation and localized pressure surges within the tank, which could otherwise lead to premature wear or damage.

The effective management of hydraulic fluid temperature is not merely a convenience but a critical factor in the longevity and efficiency of the entire hydraulic system. Maintaining the fluid within its optimal operating temperature range ensures consistent viscosity, preserves the integrity of additives, and prevents the breakdown of the base oil. This reservoir's fully baffled design directly addresses these thermal and fluid quality imperatives, distinguishing it as a superior choice for robust hydraulic installations.

Integrated Port Configuration and Serviceability

The thoughtful porting design of this hydraulic reservoir ensures seamless integration into complex hydraulic circuits and facilitates field maintenance. It features multiple NPT (National Pipe Taper) threaded ports, a standard widely recognized for its robust sealing capabilities:

• 2-inch NPT Suction Port: The generously sized 2-inch NPT suction port is a critical design element. A large suction port diameter minimizes fluid velocity at the pump inlet, thereby reducing the risk of cavitation. Cavitation, characterized by the formation and collapse of vapor bubbles within the fluid due to low pressure, can cause significant damage to hydraulic pumps, leading to noise, vibration, and premature pump failure. Ensuring an unrestricted flow path to the pump is fundamental for system reliability and pump lifespan.
• 1-1/4 inch NPT Port: This port is typically designated for the main return line, allowing hydraulic fluid to flow back into the reservoir after performing work. The sizing is optimized to handle return flow volumes without creating excessive back pressure, which could hinder system performance or generate additional heat.
• Additional 3/4 NPT and 1-1/4 NPT Ports: The inclusion of additional ports, specifically a 3/4 NPT and another 1-1/4 NPT, significantly enhances the reservoir's versatility. The 3/4 NPT port can be utilized for various auxiliary functions, such as a drain line, pressure transducer connection, or a pilot line return. The additional 1-1/4 NPT port offers flexibility for secondary return lines, sensor installations, or future system expansions.

The designation of these ports as "field serviceable" underscores the product's commitment to practicality and reduced downtime. This means that connections can be easily accessed, disconnected, and reconnected in the field using standard tools, simplifying routine maintenance, troubleshooting, and component replacement without requiring specialized equipment or extensive shop time. This design philosophy translates directly into operational efficiency and lower total cost of ownership for fleet operators.

Comprehensive Monitoring and Maintenance Features

Effective hydraulic system management relies heavily on continuous monitoring of critical parameters, which this reservoir facilitates through its integrated features:

• Quarter-Turn Filler Breather Unit: This component serves a dual purpose: it allows for convenient and quick refilling of the hydraulic fluid, and critically, it provides a filtered pathway for air exchange. As fluid levels fluctuate during operation (due to cylinder extension/retraction and thermal expansion/contraction), air must be allowed to enter and exit the reservoir to prevent vacuum formation or over-pressurization. The integrated breather element filters airborne contaminants, preventing dust, dirt, and moisture from entering the hydraulic system. The quarter-turn mechanism ensures a secure seal, preventing spillage and ingress of external debris, while offering ease of access for maintenance personnel. The "Filter Head Material_1 Aluminum" specified in the technical data refers to the construction material of this critical filler breather unit, providing a lightweight yet durable and corrosion-resistant interface.
• Sight/Temperature Gauge (Integral Level Gauge, Oil Level Gauge, Temperature Gauge): This combined gauge is an indispensable tool for proactive maintenance. The sight glass provides an immediate visual indication of the hydraulic fluid level, allowing operators to quickly assess if the fluid volume is within the optimal operating range. Maintaining the correct fluid level is paramount to prevent pump cavitation (due to insufficient fluid) or overflow (due to overfilling or thermal expansion). Concurrently, the integrated temperature gauge provides real-time monitoring of the fluid's thermal state. Abnormal temperature fluctuations can be early indicators of system inefficiencies, impending component failure, or inadequate cooling. Regular observation of both level and temperature empowers operators to identify potential issues before they escalate into costly breakdowns, enabling timely intervention and maximizing equipment uptime. The presence of both an "Integral Level Gauge" and "Oil Level Gauge" ensures redundancy and clarity in fluid level monitoring, providing comprehensive visibility into the reservoir's contents.

Secure Mounting and Ergonomic Integration

Recognizing the dynamic and often harsh environments in which heavy-duty vehicles operate, the 50 Gallon Upright Steel Hydraulic Reservoir includes a comprehensive hardware mounting kit. This inclusion streamlines the installation process, providing all necessary components to securely fasten the reservoir to the truck chassis. The engineering of the mounting system considers vibration dampening and structural integrity, ensuring that the reservoir remains firmly in place, even under severe road conditions, sudden impacts, or sustained operational stresses. The hardware is selected for its strength and corrosion resistance, complementing the reservoir's overall durability.

The design's explicit intention to "fit conveniently behind the truck cab" highlights a deep understanding of vehicle ergonomics and space optimization in commercial truck applications. This placement provides several operational advantages:

• Space Efficiency: Utilizing the often-vacant space behind the cab allows for a large capacity reservoir without compromising other critical vehicle components or load-carrying capacity.
• Protection: This location offers a degree of protection from road hazards, debris, and potential external damage compared to side-mounted or under-chassis installations.
• Accessibility: Despite its protected location, the upright design and behind-cab mounting still allow for relatively easy access for routine checks, fluid top-offs, and gauge readings, aligning with the "field serviceable" philosophy.

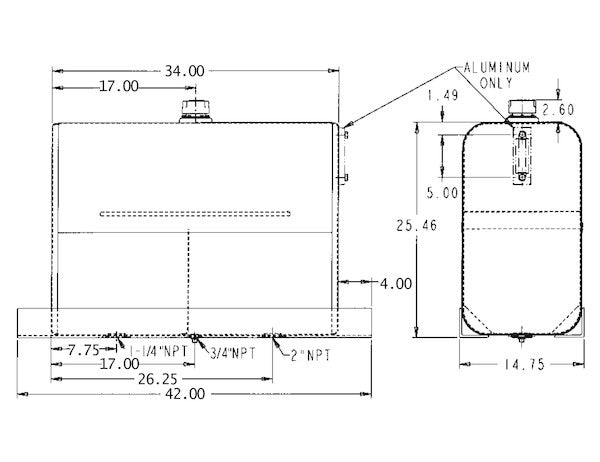

The rectangular reservoir shape is a practical choice, maximizing volumetric efficiency within the constrained space behind a truck cab and simplifying manufacturing processes. Its dimensions – Depth of 34.00 inches, Height of 25.5 inches, and Width of 14.750 inches – are optimized for this specific mounting style, providing a compact yet capable fluid storage solution.

Conclusion

The 50 Gallon Upright Steel Hydraulic Reservoir from Buyers Products is more than just a container for hydraulic fluid; it is a vital, technically advanced component engineered to enhance the performance, reliability, and longevity of heavy-duty hydraulic systems. From its robust 12-gauge carbon steel construction with a protective powder-coat finish to its fully baffled interior for optimal thermal and fluid management, every aspect of this reservoir is designed for durability and efficiency. The strategically placed, field-serviceable NPT ports, coupled with the user-friendly quarter-turn filler breather and integrated sight/temperature gauge, underscore its commitment to ease of maintenance and proactive system monitoring. By providing a secure, upright mounting solution complete with hardware, this reservoir offers seamless integration into demanding mobile applications, particularly behind the cab of heavy-duty dump trucks. Investing in this precision-engineered hydraulic reservoir ensures a stable, clean, and optimally conditioned hydraulic fluid supply, translating directly into reduced operational costs, minimized downtime, and sustained peak performance for your hydraulic machinery.
