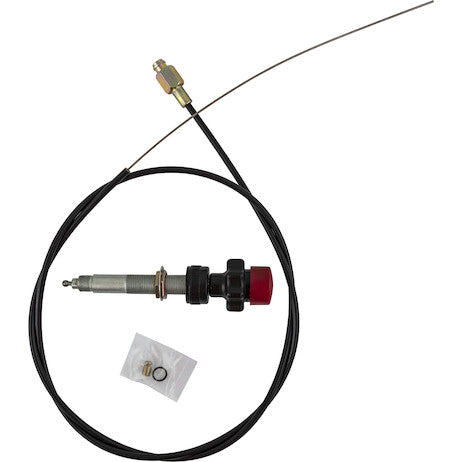

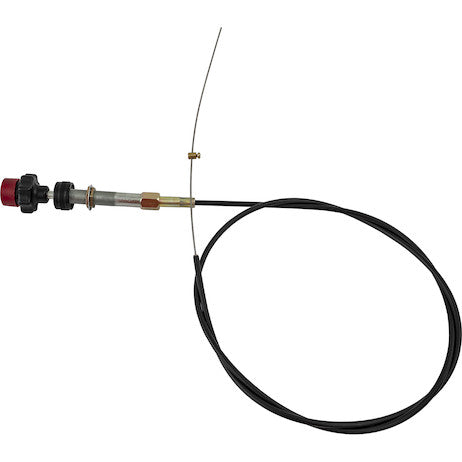

The 3100 Series Vernier Adjustable Locking Control Cable from Buyers Products offers smooth, reliable control for many PTO and dump applications. It's easy to use and install, with a detachable head for making fast, simple adjustments. The dual-ball locking mechanism secures the cable while in use. The large, easy-to-grab knob allows for fine tuning for precise settings. Tension on the cable stays strong due to its solid stainless steel core. Cables are available in lengths of 6 ft to 30 ft to cover a wide range of applications. You can custom set the cable's travel length to fit your needs. Simply trim back the sheath and core wire to your desired length.
Specifications
| Detent Type | Adjustable Locking |
| Knob Thread Size | - |
| Conduit Diameter | 0.260 " |
| Cable Series | 3100 Series Vernier |
| Cable Diameter (in.) | 0.075 " |
| Conduit Material | PVC |
| Mount Thread Size | 3/4-16 |
| End Type | Plain |
| Knob Material | Polymer |
| Bulkhead Thread Size | - |
| Conduit Color | Black |
| Rod End Thread Size | - |
| Cable Length (ft.) | 6.00 ' |
| Cable Core Material | Stainless Steel |
| Total Travel (in.) | 3.25 " |
Advanced Technical Overview: 6 Foot Vernier Adjustable Locking Control Cable (3100 Series)
This document provides an in-depth technical analysis of the 6 Foot Vernier Adjustable Locking Control Cable, a key component within the esteemed 3100 Series from Buyers Products. Designed for precision, durability, and ease of integration, this control cable is engineered to meet the rigorous demands of power take-off (PTO) systems, dump applications, and various other heavy-duty industrial and commercial vehicle operations requiring fine-tuned mechanical control.
Precision Control through Vernier Mechanism
At the core of the 3100 Series cable's superior functionality is its Vernier adjustable locking mechanism. Unlike conventional push-pull cables that offer only coarse adjustments, the Vernier design enables micro-adjustments, allowing operators to achieve extremely precise settings for critical functions. This mechanism is particularly beneficial in applications where small increments of movement translate into significant operational changes, such as modulating engine RPMs, controlling hydraulic valve positions, or finely adjusting throttle settings. The large, ergonomically designed polymer knob facilitates this fine-tuning, providing a tactile and responsive interface for the user. The interplay between the knob's rotation and the linear displacement of the cable core is meticulously calibrated to ensure a smooth, backlash-free operation, enhancing the system's overall control fidelity.
Robust Construction for Enhanced Durability and Reliability
The engineering philosophy behind the 3100 Series emphasizes robust construction to ensure long-term reliability in harsh operating environments. The cable's core is manufactured from solid stainless steel, a material chosen for its exceptional tensile strength, corrosion resistance, and fatigue life. A cable diameter of 0.075 inches, coupled with the solid stainless steel composition, ensures minimal elongation under load, preserving the accuracy of settings over time. This solid core design also prevents fraying and kinking, common failure modes in multi-strand cables, thereby extending the service life of the control system.
Encasing the stainless steel core is a high-grade PVC conduit, specified with a diameter of 0.260 inches. PVC (Polyvinyl Chloride) is selected for its excellent abrasion resistance, flexibility, and chemical inertness to common automotive and industrial fluids. The black conduit color is indicative of standard industrial coding, offering UV stability and heat resistance suitable for exposed installations. This multi-layer construction effectively shields the internal mechanism from environmental contaminants such as dust, moisture, and debris, which are prevalent in the intended application sectors. The integrity of the conduit-core interface is critical for smooth operation, and the manufacturing process ensures a consistent, low-friction pathway for the cable's movement.
Advanced Locking Mechanism: Dual-Ball Security
A distinctive feature of this control cable is its advanced dual-ball locking mechanism. This system provides superior security compared to single-point locking designs, ensuring that the cable remains firmly in its set position even under dynamic loads or vibrations. When the locking mechanism is engaged, two spherical detents exert radial pressure against the cable core, effectively immobilizing it. This redundant locking approach minimizes the risk of unintended displacement, which is paramount for safety-critical applications like PTO engagement or dump bed positioning. The engagement and disengagement of this mechanism are designed to be smooth and positive, providing clear haptic feedback to the operator, confirming the locked or unlocked status.
Optimal Travel and Customization Capabilities
The 6-foot variant of the 3100 Series cable offers a total travel length of 3.25 inches. This travel range is meticulously chosen to accommodate the stroke requirements of a wide array of PTO clutches, hydraulic valves, and accelerator linkages. The ability to precisely control this travel length is a significant advantage. The innovative design allows for on-site customization of the cable's effective length. Technicians can simply trim back the PVC sheath and the stainless steel core wire to achieve the desired functional length. This field-trimming capability eliminates the need for stocking multiple fixed-length cables, streamlining inventory management and ensuring a perfect fit for diverse installations. The "Plain" end type further facilitates this customization, providing a blank slate for attaching application-specific terminals or fittings as required.
Integration and Installation Flexibility
Installation ease is a paramount consideration in the design of the 3100 Series cables. The detachable head feature simplifies the installation process, allowing for the conduit and core to be routed through confined spaces independently before the control head is reattached. This modularity reduces installation time and effort, particularly in complex vehicle chassis or machinery layouts. The mounting thread size of 3/4-16 is a common standard in heavy equipment, ensuring compatibility with existing mounting brackets and panels. This unified threading standard facilitates straightforward replacement and integration into a multitude of control panel designs.
Application Spectrum and Performance Benefits
The 3100 Series Vernier Adjustable Locking Control Cable finds extensive utility across a broad spectrum of applications, primarily in:
- Power Take-Off (PTO) Systems: Critical for engaging and disengaging auxiliary equipment such as hydraulic pumps, generators, and compressors. The Vernier adjustment allows for precise engagement points, preventing abrupt shocks to the driveline and prolonging equipment life.
- Dump Applications: Controlling the activation and deactivation of dump truck hoists, enabling precise positioning of the dump bed. The locking mechanism ensures the bed remains in the desired position during operation or transport.
- Throttle Control: Providing fine adjustment of engine RPMs for stationary equipment or auxiliary functions, ensuring optimal power delivery and fuel efficiency.
- Hydraulic Valve Control: Modulating the flow and direction of hydraulic fluids in industrial machinery, offering nuanced control over various actuators.
- Specialized Industrial Machinery: Any application requiring accurate, repeatable, and securely lockable linear control input.
The performance benefits delivered by this cable include:
- Enhanced Operational Safety: The robust locking mechanism prevents unintended disengagement or movement, reducing operational hazards.
- Increased Efficiency: Precise control translates to optimized machine performance, reduced wear and tear on components, and improved fuel economy.
- Reduced Downtime: The durable construction and reliable locking mechanism minimize the need for frequent adjustments or replacements, contributing to higher machine uptime.
- Installer Convenience: Detachable head and customizable length features significantly simplify installation and maintenance procedures.
- Versatility: The range of available lengths (6 ft to 30 ft) and customizability make it suitable for diverse mechanical control requirements.
Technical Specifications in Detail
The detailed specifications provided underscore the product's adherence to stringent engineering standards:
- Detent Type: Adjustable Locking – Confirms the Vernier mechanism's ability to lock the cable core in an infinite number of positions within its travel range.
- Conduit Diameter: 0.260 inches – Specifies the outer diameter of the protective PVC casing, crucial for proper fitment in routing clips and through bulkheads.
- Cable Series: 3100 Series Vernier – Designates the product family, known for its precision control capabilities.
- Cable Diameter: 0.075 inches – Refers to the diameter of the solid stainless steel core, indicative of its strength and stiffness.
- Conduit Material: PVC – High-performance polymer offering chemical and abrasion resistance.
- Mount Thread Size: 3/4-16 – Standard thread specification for bulkhead mounting, ensuring broad compatibility.
- End Type: Plain – Facilitates custom attachment of end fittings tailored to specific application requirements.
- Knob Material: Polymer – Selected for durability, ergonomic grip, and resistance to environmental factors.
- Conduit Color: Black – Standard industrial coding for UV and weather resistance.
- Cable Length: 6.00 feet – Specific length of this particular product variant, with longer options available within the series.
- Cable Core Material: Stainless Steel – Premium material choice for corrosion resistance, strength, and longevity.
- Total Travel: 3.25 inches – The maximum linear displacement achievable by the cable core, designed to meet common actuation stroke requirements.
In summary, the 6 Foot Vernier Adjustable Locking Control Cable from the Buyers Products 3100 Series represents a meticulously engineered solution for demanding mechanical control applications. Its combination of Vernier precision, robust material construction, advanced dual-ball locking, and field-customizable features sets a benchmark for reliability, safety, and operational efficiency in industrial and commercial vehicle systems.
