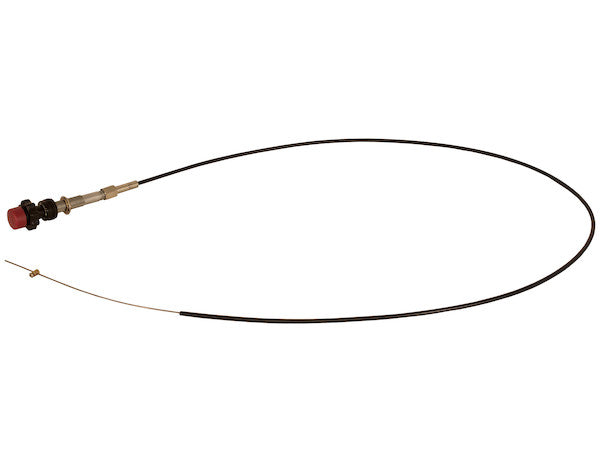

The 3100 Series Vernier Adjustable Locking Control Cable from Buyers Products offers smooth, reliable control for many PTO and dump applications. It's easy to use and install, with a detachable head for making fast, simple adjustments. The dual-ball locking mechanism secures the cable while in use. The large, easy-to-grab knob allows for fine tuning for precise settings. Tension on the cable stays strong due to its solid stainless steel core. Cables are available in lengths of 6 ft to 30 ft to cover a wide range of applications. You can custom set the cable's travel length to fit your needs. Simply trim back the sheath and core wire to your desired length.
Specifications
| Cable Length (ft.) | 15.00 ' |
| Cable Core Material | Stainless Steel |
| Rod End Thread Size | - |
| Conduit Diameter | 0.260 " |
| Knob Thread Size | - |
| Cable Diameter (in.) | 0.075 " |
| Mount Thread Size | 3/4-16 |
| Bulkhead Thread Size | - |
| Total Travel (in.) | 3.25 " |
| End Type | Plain |
| Conduit Color | Black |
| Cable Series | 3100 Series Vernier |
| Detent Type | Adjustable Locking |
| Knob Material | Polymer |
| Conduit Material | PVC |
Advanced Technical Overview: The 3100 Series 15-Foot Vernier Adjustable Locking Control Cable
Precision Engineering for Critical Applications
The 3100 Series Vernier Adjustable Locking Control Cable, specifically the 15-foot variant, represents a pinnacle of precision engineering designed for robust and reliable control in demanding industrial and mobile equipment applications. Developed by Buyers Products, this control cable system is engineered to deliver superior performance, particularly in Power Take-Off (PTO) and dump body operations where precise, consistent, and secure control is paramount. The 15-foot length provides a versatile solution for systems requiring extended reach between the operator interface and the controlled mechanism, optimizing routing flexibility while minimizing signal loss or control delay.Core Design Principles and Material Science
At the heart of the 3100 Series Vernier control cable is a commitment to durability and operational integrity. The cable's core is meticulously constructed from solid stainless steel, a material chosen for its exceptional tensile strength, corrosion resistance, and fatigue life. This solid stainless steel core, with a precise diameter of 0.075 inches, ensures consistent tension and minimizes stretch, which is critical for maintaining accurate control settings over extended periods of operation and varying environmental conditions. The inherent properties of stainless steel prevent degradation from moisture, chemicals, and temperature fluctuations, thereby extending the operational lifespan and reducing maintenance requirements. Encasing this robust core is a high-quality PVC conduit, with an external diameter of 0.260 inches. PVC (Polyvinyl Chloride) is selected for its excellent balance of flexibility, abrasion resistance, and chemical inertness. The black color of the conduit provides UV resistance and a professional aesthetic. This conduit acts as a protective sheath, shielding the internal stainless steel core from external contaminants such as dirt, dust, and corrosive fluids, while also ensuring smooth, low-friction operation of the inner cable. The careful selection of PVC for the conduit material also contributes to the cable's ease of installation and ability to withstand routing through complex machinery layouts without kinking or compromising performance.The Vernier Adjustment Mechanism: Unparalleled Precision
A defining feature of the 3100 Series is its Vernier adjustable locking mechanism. This sophisticated design allows for extremely fine tuning and precise positioning of the controlled apparatus. Unlike conventional push-pull cables that offer only coarse adjustments, the Vernier system enables micro-adjustments, empowering operators to achieve exact settings for optimal performance of PTOs, hydraulic valves, or other critical components. This level of precision is indispensable in applications where specific engine RPMs, hydraulic flow rates, or gate positions must be maintained with high accuracy. The adjustment process is intuitive and user-friendly, facilitated by a large, ergonomically designed polymer knob. The polymer material ensures a comfortable grip, even when operating with gloved hands, and provides excellent resistance to impact, chemicals, and extreme temperatures. The knob's design integrates seamlessly with the Vernier mechanism, allowing for effortless fine-tuning with minimal rotational effort.Advanced Locking Technology: Dual-Ball Security
Security and stability are paramount in control cable systems, especially in dynamic environments. The 3100 Series addresses this with an advanced dual-ball locking mechanism. Once the desired setting is achieved via the Vernier adjustment, this robust locking system engages to securely hold the cable in position. The dual-ball design distributes locking forces evenly, minimizing wear and ensuring a tenacious grip on the cable core. This prevents inadvertent disengagement or slippage due to vibrations, shocks, or operational loads, thereby safeguarding equipment and ensuring continuous, reliable performance. The detent type is specifically described as "Adjustable Locking," underscoring the system's ability to be precisely set and then firmly secured.Installation Versatility and Customization
The 3100 Series 15-foot Vernier cable is engineered for maximum installation flexibility. A key feature is the detachable head, which significantly simplifies the initial setup and subsequent adjustments. This design allows for easier routing of the cable through confined spaces before the control head is attached and calibrated. For a truly tailored fit, the cable's travel length can be custom set by the installer. The ability to trim back the sheath and core wire to the desired length ensures optimal cable routing, eliminates excess slack, and prevents potential interference with other components. This customization capability drastically reduces installation time and effort, while ensuring a clean and professional setup perfectly matched to the specific application's requirements. The total travel of the cable is 3.25 inches, providing ample range for most PTO and dump applications. The mount thread size of 3/4-16 further enhances installation versatility, allowing for secure attachment to various control panels and mounting plates. The plain end type facilitates easy connection to a variety of controlled mechanisms, whether through custom linkages or standard clevis ends (not included).Application Spectrum and Performance Benefits
The 15-foot Vernier Adjustable Locking Control Cable is ideally suited for a broad array of heavy-duty and commercial applications. Its primary use cases include:- Power Take-Off (PTO) Engagement: Providing precise and reliable control over PTO systems in trucks, agricultural machinery, and construction equipment, allowing operators to accurately engage and disengage auxiliary power units.
- Dump Body and Hoist Control: Offering fine control over hydraulic dump body functions, enabling precise positioning for material discharge and ensuring safe operation.
- Throttle and Engine Speed Control: In applications requiring precise engine RPM settings, such as generators, pumps, or specialized industrial machinery.
- Hydraulic Valve Actuation: Controlling the flow and direction of hydraulic fluid in complex systems where exact valve positioning is critical.
- Auxiliary Equipment Control: Any application requiring accurate, lockable positioning of levers, linkages, or other mechanical components.
- Enhanced Operational Efficiency: Precise control translates directly into optimized equipment performance, reduced cycle times, and improved productivity.
- Increased Safety: The secure dual-ball locking mechanism prevents unintended changes in settings, minimizing the risk of accidents or equipment damage.
- Reduced Downtime and Maintenance: The robust construction, featuring stainless steel and PVC, ensures longevity and reliability, leading to fewer repairs and extended operational intervals.
- Simplified Installation and Customization: The detachable head and trim-to-fit capability streamline the installation process, offering significant time and cost savings.
- Operator Comfort and Control: The ergonomic knob and smooth Vernier adjustment contribute to a superior operator experience, reducing fatigue and improving command over equipment.
Technical Specifications in Detail
To underscore its technical superiority, a detailed breakdown of the 15-foot cable's specifications is warranted:- Cable Length (ft.): 15.00 feet – An optimal length for bridging significant distances within vehicle chassis or industrial setups, balancing reach with minimal response lag.
- Cable Core Material: Stainless Steel – Chosen for its unparalleled corrosion resistance, high tensile strength (minimizing stretch), and durability under dynamic loads.
- Conduit Diameter: 0.260 inches – Provides robust protection for the inner core while maintaining flexibility for routing.
- Cable Diameter (in.): 0.075 inches – The precise diameter of the solid stainless steel core, engineered for optimal strength-to-flexibility ratio.
- Mount Thread Size: 3/4-16 – A standard industrial thread size, ensuring compatibility with a wide range of mounting hardware and panels.
- Total Travel (in.): 3.25 inches – Offers a substantial range of movement for the controlled mechanism, accommodating various application requirements.
- End Type: Plain – Provides maximum flexibility for custom attachment methods, allowing installers to adapt the cable to specific linkage designs.
- Conduit Color: Black – Enhances UV resistance and offers a discreet, professional appearance.
- Cable Series: 3100 Series Vernier – Identifies the product line, signifying its advanced Vernier adjustment capability.
- Detent Type: Adjustable Locking – Highlights the key operational feature of precise, secure positioning.
- Knob Material: Polymer – Selected for its ergonomic properties, durability, and resistance to environmental factors.
- Conduit Material: PVC – Provides a durable, flexible, and protective housing for the cable core.
Conclusion
The 15-foot 3100 Series Vernier Adjustable Locking Control Cable from Buyers Products represents an expertly engineered solution for applications demanding high-precision, reliable, and secure mechanical control. Its robust construction, featuring a solid stainless steel core and durable PVC conduit, coupled with the advanced Vernier adjustment and dual-ball locking mechanism, ensures superior performance and longevity. The emphasis on customization through trim-to-fit capabilities and a detachable head streamlines installation and adapts the product to diverse operational requirements. For professionals seeking a technically advanced control cable that delivers consistent accuracy and unparalleled reliability in challenging environments, the 3100 Series stands as a testament to intelligent design and manufacturing excellence. This product is not merely a component but a critical enabler for optimizing the functionality and safety of complex machinery across various industries.
