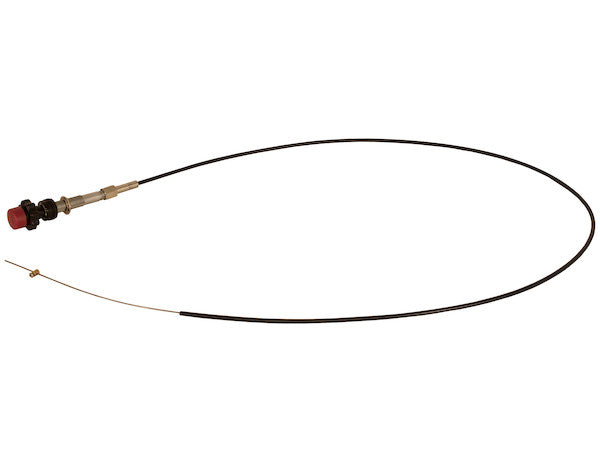

The 3100 Series Vernier Adjustable Locking Control Cable from Buyers Products offers smooth, reliable control for many PTO and dump applications. It's easy to use and install, with a detachable head for making fast, simple adjustments. The dual-ball locking mechanism secures the cable while in use. The large, easy-to-grab knob allows for fine tuning for precise settings. Tension on the cable stays strong due to its solid stainless steel core. Cables are available in lengths of 6 ft to 30 ft to cover a wide range of applications. You can custom set the cable's travel length to fit your needs. Simply trim back the sheath and core wire to your desired length.
Specifications
| Cable Series | 3100 Series Vernier |
| Total Travel (in.) | 3.25 " |
| Bulkhead Thread Size | - |
| Conduit Material | PVC |
| Detent Type | Adjustable Locking |
| Rod End Thread Size | - |
| Knob Thread Size | - |
| Knob Material | Polymer |
| Mount Thread Size | 3/4-16 |
| Conduit Diameter | 0.260 " |
| Cable Length (ft.) | 25.00 ' |
| Cable Core Material | Stainless Steel |
| End Type | Plain |
| Conduit Color | Black |
| Cable Diameter (in.) | 0.075 " |
The Buyers Products 3100 Series 25 Foot Vernier Adjustable Locking Control Cable represents a pinnacle of engineering designed for demanding industrial and commercial applications requiring precise and reliable remote mechanical control. This 25-foot variant of the esteemed 3100 Series is meticulously crafted to deliver unparalleled performance in critical systems such as Power Take-Off (PTO) engagement and disengagement, hydraulic dump body controls, and a myriad of other functions where fine-tuned adjustment and robust locking are paramount. Its extended length of 25 feet makes it particularly suitable for larger vehicles, complex machinery, or installations where the control panel is situated at a considerable distance from the actuated component, ensuring flexibility in system design without compromising responsiveness or operational integrity. Every aspect of this control cable, from its material composition to its intricate mechanical design, is engineered to exceed the rigorous standards of modern heavy-duty equipment operation.
At the heart of its superior functionality is the sophisticated Vernier adjustment mechanism. Unlike standard push-pull cables that offer discrete, stepped adjustments or friction-based controls that can slip, the Vernier system provides continuous, micro-fine positioning capabilities. This mechanism translates the rotational input from the operator's hand into extremely precise linear movement of the cable core. The large, ergonomically designed polymer knob, specifically chosen for its durability, tactile feedback, and resistance to environmental degradation, facilitates this precision. Operators can achieve minute adjustments to system parameters, which is crucial in applications requiring exact throttle settings, hydraulic valve positioning, or pump speed modulation. The tactile feel and positive engagement of the Vernier control prevent accidental over-adjustment, allowing for confident and accurate parameter setting, thereby enhancing operational efficiency and safety in complex machinery.
Complementing its precise adjustment is the robust dual-ball locking mechanism, a critical feature for maintaining set positions under dynamic and vibratory conditions. Once the desired setting is achieved via the Vernier knob, the dual-ball system engages securely, effectively immobilizing the cable core at that precise point. This advanced locking system provides a much higher degree of holding power and resistance to unintended movement compared to simpler friction clamps or single-detent mechanisms. In environments where heavy vibrations, sudden impacts, or sustained operational forces are commonplace, such as those experienced by dump trucks, refuse vehicles, or agricultural machinery, this dual-ball lock ensures that the control setting remains steadfast, preventing costly errors, equipment damage, or hazardous operational shifts. The engagement and disengagement of this lock are designed to be smooth and intuitive, providing immediate feedback to the operator while requiring minimal effort.
The structural integrity and long-term reliability of the 3100 Series cable are largely attributed to its solid stainless steel core wire. Stainless steel, specifically chosen for its superior mechanical properties, offers an exceptional combination of high tensile strength, excellent fatigue resistance, and inherent corrosion resistance. This makes it an ideal material for applications exposed to moisture, chemicals, road salt, and varying temperatures without suffering from degradation or performance loss. The solid construction of the 0.075-inch diameter core wire ensures consistent push-pull force transmission, minimizing deflection and stretching even under continuous operational loads. This robust core maintains strong tension throughout its 25-foot length, translating operator input into immediate and predictable action at the remote end. The low coefficient of friction of the polished stainless steel surface also contributes to the cable's smooth operation within its conduit, reducing wear and extending service life.
Encasing the stainless steel core is a durable PVC (Polyvinyl Chloride) conduit, with an outer diameter of 0.260 inches. PVC is selected for its excellent balance of flexibility, abrasion resistance, and chemical inertness. This material effectively shields the internal core wire from external contaminants, moisture ingress, and physical damage, which are common challenges in outdoor and industrial settings. The black color of the conduit provides UV resistance, preventing material degradation from prolonged sun exposure, thereby maintaining its structural integrity and protective qualities over time. The inherent flexibility of the PVC conduit allows for routing around bends and obstacles in complex vehicle chassis or machinery layouts without kinking or impairing the smooth movement of the inner core. This combination of a robust stainless steel core and a protective PVC conduit ensures consistent performance and longevity in the most demanding operational environments.
Installation and adaptability are key design considerations for the 3100 Series. The cable features a 3/4-16 mount thread size, which is a standard dimension for robust mechanical control systems. This facilitates straightforward mounting into control panels, bulkheads, or custom brackets, ensuring a secure and stable connection point. The detachable head feature is a significant advantage during both initial installation and subsequent maintenance or adjustment. This design allows for easier routing of the cable through tight spaces or complex assemblies without the bulk of the control head, simplifying the installation process. Once routed, the control head can be reattached quickly and securely. Furthermore, the ability to custom set the cable's travel length by trimming back the sheath and core wire provides unparalleled versatility. This field-adaptable design means that a single cable series can be configured precisely to the specific travel requirements of various applications, minimizing waste and simplifying inventory management for fleet operators and equipment manufacturers. The plain end type of the cable core further enhances this adaptability, allowing users to attach a variety of custom fittings, clevises, or linkages to interface directly with specific actuated components.
The total travel distance of 3.25 inches provides a substantial range of motion for controlling a wide array of mechanical functions. This stroke length is often ideal for fully engaging or disengaging PTO units, precisely actuating hydraulic valves for dump body operation, or managing engine RPMs within a critical operating window. The precise Vernier adjustment within this travel range ensures that even small changes in the control input result in a proportionally accurate output, which is crucial for safety and operational efficiency. The integration of all these features into a 25-foot length ensures that even on larger vehicles or expansive industrial setups, operators retain ergonomic, precise, and reliable control over distant components, minimizing the need for complex and potentially failure-prone electrical or pneumatic systems.
In the context of PTO applications, the 3100 Series 25 Foot Vernier Adjustable Locking Control Cable offers critical advantages. PTO systems are essential for powering auxiliary equipment such as hydraulic pumps for cranes, air compressors, vacuum tanks, or salt spreaders on trucks. Precise engagement and disengagement are vital to prevent sudden jerks, protect driveline components, and ensure the safe operation of the auxiliary equipment. The Vernier control allows operators to smoothly feather the engagement or fine-tune the output speed of the PTO-driven accessory, optimizing performance and extending the lifespan of both the vehicle's drivetrain and the auxiliary unit. The positive locking mechanism is indispensable, ensuring that once a PTO is engaged or disengaged, it remains in that state regardless of vehicle movement or vibration, preventing accidental activation or deactivation that could lead to dangerous situations or productivity losses.
For dump body applications, the reliability and precision of this control cable are equally paramount. Dump trucks and other material handling vehicles rely on robust controls for operating their hydraulic systems, including raising and lowering the dump bed, engaging pintle hooks, or locking tailgates. The 25-foot cable length enables flexible placement of the control lever in the cab, optimizing ergonomics for the operator. The Vernier adjustment can be used to precisely meter the flow of hydraulic fluid, allowing for controlled, smooth movements of the dump body, preventing abrupt drops or slams that can damage the vehicle or create safety hazards. The locking mechanism ensures that the dump bed stays in its desired position, whether fully lowered for transport or partially raised for spreading material, even when traversing uneven terrain or performing complex maneuvers. This contributes significantly to operational safety, efficiency, and prolongs the life of hydraulic components.
Beyond PTO and dump applications, this control cable is highly adaptable to a diverse range of other industrial and mobile equipment. It can be utilized in agricultural machinery for controlling implement depth or sprayer settings, in marine applications for throttle or gearshift control, in construction equipment for auxiliary function management, or even in custom-fabricated industrial machinery where remote mechanical actuation with fine adjustment is required. The ability to trim the cable to a specific travel length and attach various end fittings makes it a versatile solution for prototyping, specialized OEM installations, and aftermarket modifications. The robust construction ensures it can withstand the harsh conditions prevalent in these sectors, providing a reliable alternative or complement to electrical or pneumatic control systems.
The meticulous engineering and material selection underscore a commitment to durability and longevity. Every component, from the high-grade polymer knob to the stainless steel core and PVC conduit, is chosen for its ability to perform consistently in extreme temperatures, high humidity, corrosive atmospheres, and environments subject to continuous mechanical stress. This results in a control cable that offers an exceptionally long service life with minimal maintenance requirements, reducing downtime and total cost of ownership for operators and fleet managers. The ease of installation, coupled with the precision of the Vernier adjustment and the security of the dual-ball lock, makes the 3100 Series 25 Foot Vernier Adjustable Locking Control Cable an indispensable component for any system demanding reliable, precise, and robust remote mechanical control.
