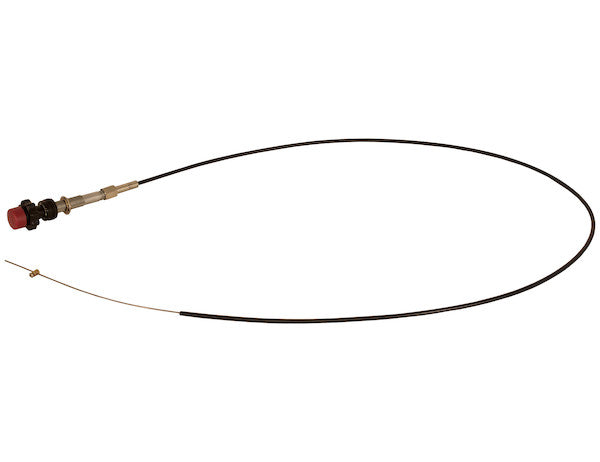

The 3100 Series Vernier Adjustable Locking Control Cable from Buyers Products offers smooth, reliable control for many PTO and dump applications. It's easy to use and install, with a detachable head for making fast, simple adjustments. The dual-ball locking mechanism secures the cable while in use. The large, easy-to-grab knob allows for fine tuning for precise settings. Tension on the cable stays strong due to its solid stainless steel core. Cables are available in lengths of 6 ft to 30 ft to cover a wide range of applications. You can custom set the cable's travel length to fit your needs. Simply trim back the sheath and core wire to your desired length.
Specifications
| Knob Material | Polymer |
| Detent Type | Adjustable Locking |
| Rod End Thread Size | - |
| Cable Length (ft.) | 30.00 ' |
| Cable Diameter (in.) | 0.075 " |
| Cable Core Material | Stainless Steel |
| Conduit Color | Black |
| Knob Thread Size | - |
| Total Travel (in.) | 3.25 " |
| Conduit Material | PVC |
| Conduit Diameter | 0.260 " |
| Mount Thread Size | 3/4-16 |
| Bulkhead Thread Size | - |
| End Type | Plain |
| Cable Series | 3100 Series Vernier |
The 30 Foot Vernier Adjustable Locking Control Cable, a flagship product within the esteemed 3100 Series from Buyers Products, represents a pinnacle of precision engineering and robust functionality for demanding industrial and commercial applications. This comprehensive technical description aims to elucidate the sophisticated design, material science, operational principles, and application versatility of this critical control component. Engineered for optimal performance in Power Take-Off (PTO) systems, dump body controls, throttle adjustments, and various other precise mechanical actuations, this cable system is designed to provide unparalleled reliability and user-friendliness across a spectrum of heavy-duty machinery.
At its core, the 3100 Series Vernier Adjustable Locking Control Cable distinguishes itself through a meticulous blend of material selection and innovative mechanical design. The stated 30-foot length, a significant offering within the series, underscores its suitability for installations requiring considerable reach between the operator interface and the actuated mechanism. This extended length, coupled with the system's inherent design robustness, ensures minimal signal degradation or control lag, even over challenging routing paths.
Operational Principle: Vernier Adjustment and Locking Mechanism
The "Vernier Adjustable Locking" characteristic is central to the cable's utility. A Vernier mechanism facilitates exceptionally fine adjustments, allowing operators to achieve precise settings for hydraulic valves, engine throttles, or other controlled components. This is critical in applications where minor variations in position can significantly impact system performance or efficiency. The large, ergonomically designed knob is integral to this function, providing a comfortable grip and sufficient surface area for tactile feedback, enabling incremental adjustments with ease and accuracy. The detent type, specified as "Adjustable Locking," further enhances this precision by allowing the operator to not only fine-tune the setting but also securely lock it in place, preventing unintended movement or drift due to vibration, shock, or external forces. This locking capability is paramount for maintaining safety and operational consistency in dynamic environments.
The dual-ball locking mechanism is a key innovation contributing to the cable's stability. Unlike simpler locking mechanisms that might rely on friction or a single point of contact, the dual-ball design provides a robust, multi-point engagement that effectively immobilizes the cable core once the desired position is set. This positive locking action minimizes backlash and ensures that the actuated component remains precisely where the operator intended, even under high vibrational loads or sudden mechanical stresses. This mechanism's reliability is a critical factor in applications where maintaining a specific setting is non-negotiable for operational integrity and safety.
Construction and Material Science
The structural integrity and long-term durability of the 3100 Series cable are largely attributed to its superior material composition. The cable core, with a diameter of 0.075 inches, is constructed from solid stainless steel. Stainless steel is chosen for its exceptional tensile strength, corrosion resistance, and resistance to fatigue. In environments characterized by moisture, chemicals, or temperature fluctuations, stainless steel ensures the core maintains its mechanical properties, preventing rust formation that could lead to binding, increased friction, or premature failure. The "solid" nature of the core, as opposed to stranded wire, contributes to its stiffness and resistance to compression, ensuring precise push-pull action without undesirable flexing or stretching, which is crucial for maintaining accurate adjustments over the entire 30-foot length.
Encasing this robust core is a conduit made from PVC (Polyvinyl Chloride), with a diameter of 0.260 inches. PVC is an excellent choice for conduit material due to its flexibility, abrasion resistance, and chemical inertness. It provides a protective barrier against environmental contaminants, physical damage, and UV radiation, which could otherwise degrade the cable's performance over time. The black conduit color offers a degree of UV stability and a discreet appearance suitable for various installations. The PVC conduit ensures smooth travel of the stainless steel core, minimizing friction and maximizing the efficiency of force transmission from the operator to the actuated component. This combination of a high-strength core and a protective, low-friction conduit is fundamental to the cable's smooth, reliable operation.
The knob, the primary interface for the operator, is crafted from polymer. Polymer materials offer several advantages, including excellent ergonomics, resistance to impact, and insulation properties. The polymer knob remains comfortable to grip across a range of ambient temperatures and is resistant to common industrial solvents and oils. Its lightweight nature does not detract from its robustness, providing a durable and aesthetically pleasing component that withstands rigorous daily use.
Detachable Head and Customization
A significant feature enhancing the installation and serviceability of the 3100 Series cable is its detachable head. This design innovation simplifies the process of making fast, simple adjustments during initial installation or subsequent maintenance. The ability to detach the head allows for easier routing of the cable through confined spaces or bulkheads without the impediment of the control head assembly. Furthermore, it streamlines the process of customizing the cable's travel length. The "Total Travel" specification of 3.25 inches denotes the maximum linear displacement the cable core can achieve, offering ample range for most applications. However, the unique design allows for precise customization: "Simply trim back the sheath and core wire to your desired length." This field-adjustable feature provides unparalleled flexibility, eliminating the need for custom-ordered lengths for every unique installation scenario and significantly reducing inventory requirements for distributors and end-users alike. This on-site adaptability is a major cost and time-saving benefit, allowing for an exact fit regardless of the specific application's requirements for overall length and travel.
Installation and Mounting
The "Mount Thread Size" is specified as 3/4-16, indicating the standard thread dimension for securing the control cable assembly to a panel or mounting bracket. This standardized threading ensures compatibility with a wide array of existing mounting hardware and facilitates secure, vibration-resistant installation. The plain end type for the cable core signifies that the end is un-terminated, providing maximum flexibility for attaching custom linkages, clevises, or other components specific to the actuated mechanism. This allows installers to precisely tailor the connection point to the existing equipment, ensuring optimal alignment and force transfer. The design prioritizes ease of installation while maintaining the robust integrity required for heavy-duty operational environments.
Applications and Versatility
As highlighted, the 3100 Series Vernier Adjustable Locking Control Cable is engineered for a diverse range of applications. Its primary use in PTO (Power Take-Off) and dump applications showcases its ability to withstand the demanding conditions associated with commercial vehicles and heavy equipment. In PTO systems, the cable provides precise engagement and disengagement of auxiliary equipment such as hydraulic pumps, air compressors, or winches, allowing operators to fine-tune power delivery or completely activate/deactivate the function. For dump applications, it offers precise control over hydraulic valve positions, enabling smooth and controlled raising or lowering of dump beds, which is crucial for safe and efficient material handling.
Beyond these primary applications, the cable's characteristics—precision, durability, and adjustability—make it suitable for:
- Throttle Control: Providing fine engine speed adjustments for generators, pumps, or other engine-driven equipment.
- Choke Control: Manual choke activation for cold starting.
- Valve Actuation: Remote operation of various hydraulic, pneumatic, or mechanical valves in industrial processes.
- Equipment Positioning: Precise positioning of implements on agricultural machinery or construction equipment.
- Marine Applications: Control of throttles, chokes, or gear shifts in marine engines, where corrosion resistance is paramount.
- Specialty Vehicle Controls: Custom control solutions for emergency vehicles, utility trucks, and other specialized apparatus requiring robust and reliable remote actuation.
The availability of cables in lengths from 6 ft to 30 ft, with the 30-foot variant representing the maximum standard offering, ensures that the 3100 Series can accommodate installations ranging from compact machinery to large-scale vehicles where control points are significantly distant from the actuated mechanisms. This extensive range, coupled with the trim-to-fit capability, establishes the series as a highly adaptable solution for a multitude of industrial and commercial control challenges.
Conclusion
The 30 Foot Vernier Adjustable Locking Control Cable from the Buyers Products 3100 Series represents a meticulously engineered solution designed to meet the rigorous demands of modern industrial and commercial applications. Its combination of a solid stainless steel core, durable PVC conduit, precise Vernier adjustment, and a robust dual-ball locking mechanism ensures unparalleled reliability, accuracy, and longevity. The thoughtful inclusion of a detachable head and field-adjustable length capability further enhances its utility, simplifying installation and providing exceptional versatility for custom applications. This control cable is not merely a component; it is a critical interface designed to empower operators with precise, consistent, and secure control over vital mechanical functions, thereby contributing significantly to operational efficiency, safety, and equipment longevity across a wide array of heavy-duty environments.
