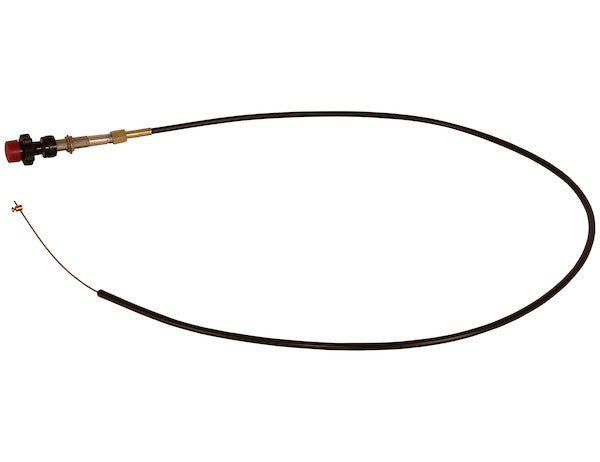

The 4100 Series Heavy Duty Vernier Adjustable Locking Control Cable from Buyers Products offers smooth, reliable control for many PTO and dump applications. It's easy to use and install, and its detachable head makes adjustments fast and simple. The dual-ball locking mechanism secures the cable while in use. The large, easy-to-grab knob allows for fine tuning for precise settings. The cable's solid .088 in. diameter stainless steel core keeps tension strong. Cables are available in lengths of 6 ft to 35 ft to cover a wide range of applications. You can custom set the cable's travel length to fit your needs. Simply trim back the sheath and core wire to your desired length.
Specifications
| Cable Diameter (in.) | 0.088 " |
| Total Travel (in.) | 3.25 " |
| Conduit Diameter | 0.375 " |
| Knob Material | Polymer |
| Conduit Color | Black |
| Cable Core Material | Stainless Steel |
| Mount Thread Size | 3/4-16 |
| Knob Thread Size | - |
| Bulkhead Thread Size | - |
| Detent Type | Adjustable Locking |
| Rod End Thread Size | - |
| Conduit Material | PVC |
| Cable Series | 4100 Series Vernier |
| Cable Length (ft.) | 10.00 ' |
| End Type | Plain |
The 10 Foot Heavy Duty Vernier Adjustable Locking Control Cable represents a pinnacle of engineering in mechanical control systems, meticulously designed to provide unparalleled precision, durability, and reliability across a spectrum of demanding industrial and commercial applications. This particular model, part of the distinguished 4100 Series from Buyers Products, is engineered for scenarios where robust, fine-tuned control is paramount, such as in Power Take-Off (PTO) systems, dump body operations, throttles, chokes, and various hydraulic valve controls. The 10-foot length offers ample reach for diverse equipment configurations, balancing extended utility with maintaining responsive control characteristics.
At the core of this control cable's exceptional performance is its solid .088 inch diameter stainless steel core wire. Stainless steel, specifically chosen for its superior tensile strength, corrosion resistance, and fatigue life, ensures the cable maintains its structural integrity and tension over prolonged periods of use, even in harsh environmental conditions. This robust core minimizes stretch and compression, critical factors in achieving precise and consistent actuation. The minimal elasticity of the stainless steel core translates directly into a highly responsive control input, providing operators with immediate and accurate feedback and control over the connected mechanism. This characteristic is particularly vital in applications requiring fine adjustments or swift, decisive actions, such as modulating engine RPM or positioning a dump bed with precision.
Encasing this high-strength core is a durable conduit with a diameter of 0.375 inches, constructed from high-grade PVC. The choice of PVC for the conduit material is deliberate, offering an optimal balance of flexibility, abrasion resistance, and chemical inertness. The black color of the conduit provides UV stability and a professional aesthetic. The conduit acts as a protective sheath, safeguarding the internal core wire from external contaminants, moisture, and physical damage, thereby extending the operational lifespan of the cable system. Furthermore, the low-friction inner lining of the conduit facilitates smooth movement of the core wire, reducing operational effort and minimizing wear on both the cable and the connected equipment. This design principle ensures that the force applied by the operator is efficiently transmitted to the end mechanism with minimal frictional losses, contributing to the overall efficiency and longevity of the system.
A key distinguishing feature of the 4100 Series, and this 10-foot model in particular, is its Vernier adjustable locking mechanism. The Vernier adjustment capability allows for incredibly fine and precise control over the cable's position. Unlike standard push-pull cables that offer only coarse adjustments, the Vernier mechanism enables micro-adjustments, typically in increments as small as 0.05 inches or less, providing the operator with the ability to "dial in" the exact setting required for optimal performance. This level of granularity is indispensable in applications where precise calibration or nuanced control is essential, such as maintaining a specific engine speed for a PTO-driven accessory or carefully feathering a hydraulic valve.
The locking function is integral to maintaining these precise settings once achieved. This cable incorporates a dual-ball locking mechanism, a sophisticated engineering solution designed for superior holding power and reliability. When the knob is pushed in, a set of internal balls engage with recesses or grooves along the cable's shaft, effectively locking the cable in its current position. This mechanism provides a secure, positive lock that resists vibration, shock, and accidental disengagement, ensuring that the chosen setting remains constant until intentionally altered. The robust nature of the dual-ball lock significantly enhances operational safety and consistency, preventing unwanted drift or changes in control position during demanding operations.
Ease of use and ergonomic design are also central to the cable's appeal. The large, easy-to-grab knob is thoughtfully designed to facilitate comfortable and efficient operation, even when wearing gloves. The tactile feedback provided by the Vernier mechanism and the positive engagement of the locking system instill confidence in the operator. Furthermore, the detachable head design significantly simplifies installation and adjustment procedures. This feature allows for the core wire to be easily separated from the control head, facilitating routing through bulkheads and complex pathways without needing to feed the entire control assembly. Once routed, the head can be reattached, and fine-tuning can commence. This modularity not only streamlines initial setup but also makes field maintenance and repairs more manageable, reducing downtime and labor costs.
Another highly advantageous characteristic of this control cable is its field-customizable travel length. While the total travel of 3.25 inches is fixed, the overall length of the cable and its effective travel can be tailored to specific application requirements. Operators or technicians can easily custom-set the cable's travel length by trimming back the PVC conduit sheath and the stainless steel core wire to their desired dimensions. This adaptability eliminates the need for stocking multiple cable lengths for varying applications, offering significant inventory management advantages and ensuring a perfect fit for virtually any setup. The "Plain" end type further supports this customization, allowing for the attachment of various end fittings (e.g., clevis, threaded rod, ball joint) suited to the specific interface of the controlled mechanism.
The mounting interface of the control cable is designed for secure and stable installation. With a mount thread size of 3/4-16, this cable integrates seamlessly into most standard industrial mounting brackets and panels. The robust threading ensures a tight, vibration-resistant connection, critical for maintaining control integrity in dynamic operating environments. The absence of a specific knob thread size, bulkhead thread size, or rod end thread size in the specifications indicates a design focused on the primary control mechanism's versatility and the ability for users to add their own preferred terminal connections and panel mounting solutions.
The comprehensive range of available cable lengths within the 4100 Series, from 6 ft to 35 ft, underscores the versatility of this product line. The 10-foot length, as featured here, offers a balanced solution, providing sufficient reach for many medium-to-large scale equipment installations without introducing excessive slack or requiring complex routing. This careful consideration of length options ensures that engineers and technicians can select the optimal cable for their specific spatial and functional requirements, minimizing installation challenges and maximizing control responsiveness.
In summary, the 10 Foot Heavy Duty Vernier Adjustable Locking Control Cable from Buyers Products’ 4100 Series is more than just a component; it is a precision instrument engineered for high-performance control. Its robust stainless steel core, durable PVC conduit, precise Vernier adjustment, and secure dual-ball locking mechanism combine to deliver unparalleled reliability and control accuracy. The detachable head, field-customizable length, and ergonomic design further enhance its utility, ease of installation, and maintenance. This control cable is an ideal solution for professionals seeking a high-quality, dependable, and adaptable control interface for demanding industrial and mobile equipment applications, ensuring optimal operational efficiency, safety, and longevity of the controlled systems.
