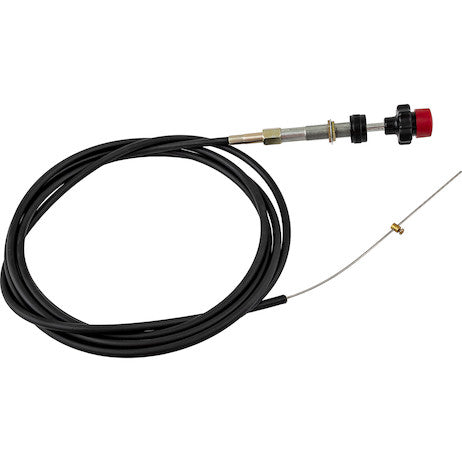

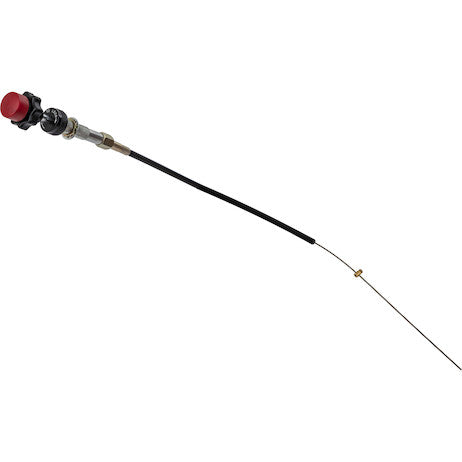

VCGTX15 - 15 Foot Heavy Duty Vernier Adjustable Locking Control Cable

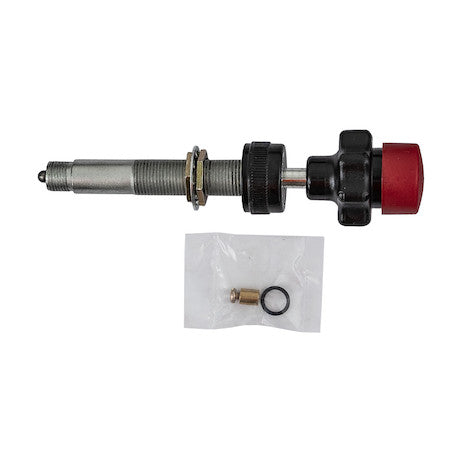

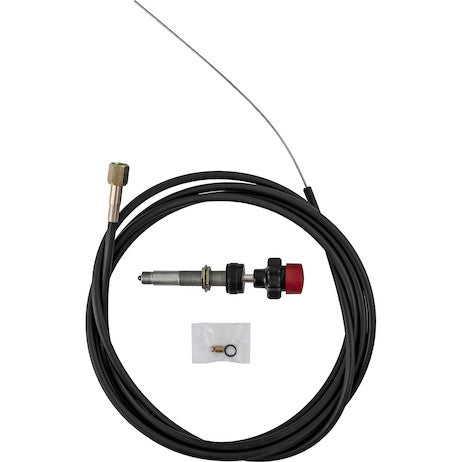

The 4100 Series Heavy Duty Vernier Adjustable Locking Control Cable from Buyers Products offers smooth, reliable control for many PTO and dump applications. It's easy to use and install, and its detachable head makes adjustments fast and simple. The dual-ball locking mechanism secures the cable while in use. The large, easy-to-grab knob allows for fine tuning for precise settings. The cable's solid .088 in. diameter stainless steel core keeps tension strong. Cables are available in lengths of 6 ft to 35 ft to cover a wide range of applications. You can custom set the cable's travel length to fit your needs. Simply trim back the sheath and core wire to your desired length.

Specifications

Advanced Technical Overview: The 4100 Series 15-Foot Heavy Duty Vernier Adjustable Locking Control Cable

The 4100 Series Heavy Duty Vernier Adjustable Locking Control Cable, specifically the 15-foot variant, represents a pinnacle of engineering excellence designed to meet the rigorous demands of industrial, commercial, and heavy equipment applications. Manufactured by Buyers Products, this control cable system is meticulously crafted to deliver unparalleled precision, robust durability, and reliable performance across a broad spectrum of operational environments. Its design integrates advanced mechanical principles with high-grade materials, ensuring a long service life and consistent, accurate control for critical functions such as Power Take-Off (PTO) engagement, dump body hydraulic actuation, engine throttle management, and a myriad of other remote mechanical operations.

The Precision of Vernier Adjustment

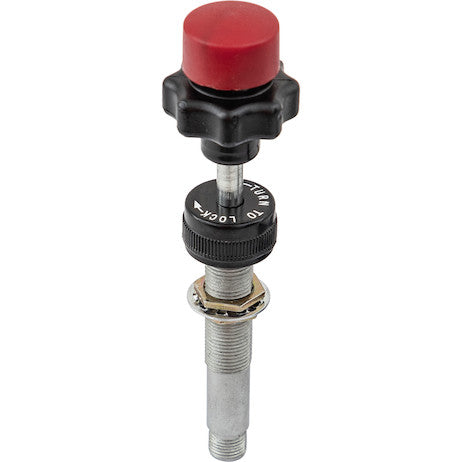

At the core of the 4100 Series' superior functionality is its sophisticated vernier adjustment mechanism. Unlike standard push-pull cables that offer only coarse adjustments, the vernier system provides micro-incremental positioning, allowing operators to achieve extremely precise settings. This is facilitated by a multi-turn adjustment knob that translates rotational input into minute linear displacement of the cable core. The large, easy-to-grab polymer knob is ergonomically designed for comfortable manipulation, even when wearing work gloves, enabling fine-tuning for critical operational parameters. This level of precision is indispensable in applications where exact positioning or flow rates are paramount, such as modulating hydraulic pump output for specific equipment speeds, accurately setting engine RPM for optimal fuel efficiency or power delivery, or finely adjusting the position of an agricultural implement.

The vernier action ensures that once a desired setting is achieved, it can be maintained with exceptional stability. This is further reinforced by the inherent mechanical advantage of the vernier thread, which resists unintentional displacement from vibration or minor external forces. The ability to make such minute adjustments greatly enhances operator control, reduces guesswork, and contributes to more efficient and safer machinery operation. For example, in a dump application, this precision allows for highly controlled lowering or raising of the dump body, preventing sudden movements that could lead to instability or material spillage. In PTO applications, it can mean precise engagement and disengagement, or fine-tuning of driven accessory speeds.

Robust Construction for Unyielding Durability

The 4100 Series cable is engineered for heavy-duty performance, a commitment evident in every component. The cable's foundation is a solid 0.088-inch diameter stainless steel core wire. Stainless steel is chosen for its exceptional tensile strength, resistance to corrosion, and excellent fatigue life. This robust core ensures that tension remains strong throughout the cable's operational life, accommodating both push and pull forces without stretching, fraying, or succumbing to environmental degradation. The solid core design also minimizes internal friction, contributing to the smooth and responsive feel of the control system.

Encasing this powerful core is a durable 0.375-inch diameter PVC conduit. Polyvinyl Chloride (PVC) is selected for its advantageous properties in demanding industrial environments. It provides excellent resistance to abrasion, impact, and a wide array of chemicals commonly encountered in automotive and heavy equipment settings, including oils, greases, and many solvents. Furthermore, PVC offers superior flexibility, allowing for easier routing through complex chassis designs while maintaining its structural integrity. The black color of the conduit is not merely aesthetic; it also contributes to UV resistance, preventing material degradation from prolonged sun exposure, which is crucial for outdoor applications. This robust conduit acts as a critical protective barrier, shielding the internal stainless steel core from dirt, moisture, ice, and other contaminants that could otherwise impede operation or accelerate wear. The synergy between the stainless steel core and the PVC conduit ensures reliable, low-friction operation even under the most challenging conditions, minimizing maintenance requirements and maximizing operational uptime.

Secure and Reliable Adjustable Locking Mechanism

One of the standout features of the 4100 Series is its dual-ball adjustable locking mechanism. This sophisticated detent type is designed to provide absolute security and stability for any chosen setting. When the operator adjusts the vernier knob to the desired position, the internal dual-ball system engages, creating a positive lock that firmly holds the cable in place. This mechanism is crucial for preventing unwanted drift or slippage that could occur due to engine vibration, road shock, or other dynamic forces inherent in heavy equipment operation. The adjustable locking feature provides operators with confidence that once a setting is selected, it will remain constant, ensuring consistent performance of the controlled function.

The ability to securely lock the control cable in an infinite number of positions within its total travel range of 3.25 inches makes it exceptionally versatile. Whether maintaining a steady engine RPM, holding a hydraulic valve partially open, or locking a PTO at a specific engagement point, the dual-ball mechanism ensures that the control input is translated into a steadfast output. This contributes significantly to operational safety and efficiency, reducing the need for constant operator intervention to correct drifting settings.

Optimized Length and Unparalleled Customization

The 15-foot cable length of this specific 4100 Series model is thoughtfully selected to accommodate a wide range of applications requiring extended reach. This length is particularly suitable for installations in vehicles with longer chassis, remote engine compartments, or applications where the operator's control station is a considerable distance from the actuated component. It provides ample length for proper routing, ensuring that necessary bend radii can be maintained without inducing excessive stress on the cable or conduit, thereby promoting longevity and smooth operation. While the total travel is fixed at 3.25 inches, a significant advantage of the 4100 Series is its field-adjustable nature for overall cable length. The design allows for custom setting of the cable's travel length to fit precise needs, achieved by simply trimming back the outer sheath and the core wire to the desired dimension. This customizable feature, coupled with a detachable head, simplifies installation and allows installers to quickly adapt the cable to specific equipment configurations without needing to stock multiple fixed-length variants. The plain end type further enhances this adaptability, allowing for the integration of various custom end fittings (e.g., clevis, ball joint, threaded rod) as dictated by the specific application's linkage requirements, providing maximum flexibility for integration with existing machinery.

The 3/4-16 mount thread size is a standard dimension, ensuring compatibility with a vast array of mounting brackets and panels commonly found in industrial and heavy equipment applications. This standardized interface streamlines the installation process, reducing the need for specialized adapters or modifications. The polymer material of the knob ensures durability and resistance to wear, temperature fluctuations, and chemical exposure, while also providing a comfortable, non-slip grip.

Key Applications and Performance Advantages

The 15-foot Heavy Duty Vernier Adjustable Locking Control Cable is an ideal solution for a multitude of demanding applications:

• Power Take-Off (PTO) Systems: Essential for engaging and disengaging auxiliary equipment like hydraulic pumps, generators, or compressors on trucks and heavy machinery. The vernier adjustment allows for precise control over PTO speed or engagement depth.
• Dump Body Hydraulics: Provides precise control for raising, lowering, and holding dump bodies, crucial for controlled material discharge and operational safety.
• Engine Throttle Control: Enables accurate setting and maintenance of engine RPM for generators, pumps, marine engines, and industrial machinery, optimizing performance and fuel efficiency.
• Choke Control: Offers reliable control for engine cold starting, ensuring proper air-fuel mixture.
• Hydraulic Valve Actuation: Ideal for fine-tuning the opening and closing of hydraulic valves, enabling precise flow control for various functions on construction and agricultural equipment.
• Specialized Equipment: Applicable to a wide range of other machinery requiring remote, precise, and durable mechanical control, such as material handling equipment, snowplows, salt spreaders, and agricultural implements.

The core performance advantages of this control cable lie in its combination of precision and resilience. The smooth operation, facilitated by the low-friction design and high-quality materials, translates into responsive control with minimal effort from the operator. The robust construction ensures exceptional longevity, even when exposed to harsh environmental factors such as extreme temperatures, moisture, dust, and vibration. This reduces downtime for repairs and replacements, leading to lower total cost of ownership over the product's lifespan. The strong tension capabilities, stemming from the solid stainless steel core, mean reliable push-pull action over extended distances, crucial for long-term operational integrity.

Technical Specifications in Detail

Delving deeper into the specifications provides further insight into the engineering behind this product:

• Cable Length (ft.): 15.00' - As discussed, this specific length caters to applications requiring significant reach, balancing effective signal transmission with manageability.
• Cable Series: 4100 Series Vernier - Identifies it as part of a premium product line known for precision and heavy-duty characteristics.
• Knob Thread Size: - - Indicates that the knob itself is integrated and does not have a separate mounting thread, simplifying its attachment to the cable core.
• End Type: Plain - Offers maximum flexibility for installers and OEMs to attach application-specific end fittings, from clevises and ball joints to threaded rods, without being limited by a factory-fixed termination.
• Conduit Color: Black - Aesthetically versatile and often indicative of UV-stabilized PVC for outdoor durability.
• Total Travel (in.): 3.25" - This critical parameter defines the maximum linear displacement of the cable core, providing sufficient range for most control valve actuations, throttle adjustments, and PTO engagements.
• Cable Core Material: Stainless Steel - Guarantees high strength, excellent corrosion resistance, and reduced friction for smooth operation over the cable's lifespan.
• Mount Thread Size: 3/4-16 - A common and robust thread size for secure panel or bracket mounting, ensuring broad compatibility.
• Rod End Thread Size: - - Similar to the knob thread size, its absence emphasizes the plain end design for custom attachments.
• Knob Material: Polymer - Chosen for its durability, resistance to environmental factors, and ergonomic properties, providing a comfortable and secure grip.
• Cable Diameter (in.): 0.088" - A robust diameter for the core wire, ensuring tensile and compressive strength for heavy-duty push-pull applications.
• Conduit Material: PVC - Provides flexible, durable, and environmentally resistant protection for the core wire, essential for longevity.
• Detent Type: Adjustable Locking - Confirms the critical dual-ball locking mechanism for secure and stable positioning.
• Conduit Diameter: 0.375" - Represents the overall diameter of the protective sheath, influencing routing capabilities and requiring appropriate mounting hardware.
• Bulkhead Thread Size: - - The cable likely integrates into a standard mounting hole with the 3/4-16 thread, meaning a separate bulkhead component isn't required or is integrated.

Installation Best Practices

While designed for ease of installation, adhering to best practices ensures optimal performance and longevity. Proper routing is paramount; avoiding sharp bends, which can increase friction and induce premature wear, is crucial. Maintaining the manufacturer's recommended minimum bend radius is essential. Securing the cable at appropriate intervals along its run prevents sagging and reduces the risk of accidental damage. When custom-trimming the cable, using specialized tools designed for cable cutting ensures a clean, burr-free cut, preventing core fraying and ensuring smooth operation. Proper termination of the plain end with a suitable fitting, securely attached, is also vital for reliable control linkage.

Conclusion

The 15-foot Heavy Duty Vernier Adjustable Locking Control Cable from Buyers Products’ 4100 Series represents a meticulously engineered solution for demanding control applications. Its combination of precise vernier adjustment, robust heavy-duty construction, secure dual-ball locking mechanism, and exceptional customizability sets it apart. Designed for longevity and reliable performance in the harshest environments, this control cable empowers operators with superior control and offers installers a highly adaptable product. For professionals seeking a precise, durable, and reliable mechanical control linkage for PTO, dump, throttle, or other critical heavy equipment functions, the 4100 Series provides an uncompromising solution that delivers consistent performance and exceptional value.
