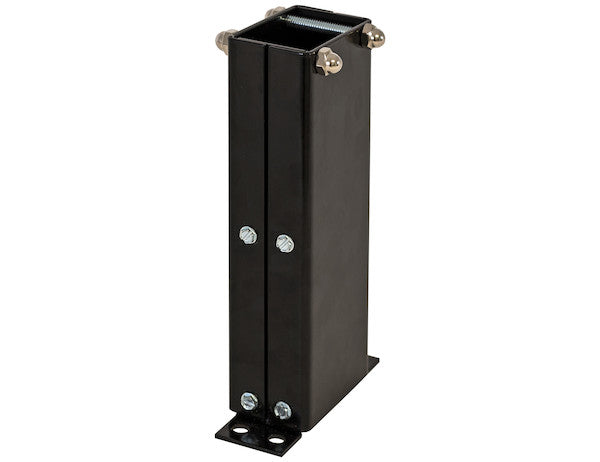

The Remote Valve Control Console from Buyers Products protects your spool valve controls with a durable 13 Ga steel housing. The console is black powder-coated for corrosion resistance and includes all fasteners for simple installation. Choose from single, dual, triple, or quad sizing to fit your exact need. Consoles can be stacked to fit any job.
Specifications
| Width | 6.31 " |
| Depth | 3.69 " |
| Material | Carbon Steel |
| Description | Quad Lever Console (9" H x 6-9/16" W) |
| Color | Black |
| Height | 9.00 " |
| Maximum Number of Controls | 4 |
| Finish | Powder-Coat |
| Gauge | 13 Ga |
Advanced Control and Protection: The Black Quad Lever Remote Valve Control Console
In the realm of hydraulic systems, precision control and robust component protection are paramount for operational efficiency, safety, and longevity. The Black Quad Lever Remote Valve Control Console, measuring 6-9/16 inches wide by 9 inches high, represents a professionally engineered solution designed to encapsulate and safeguard up to four critical hydraulic spool valve controls. Manufactured by Buyers Products, this console is not merely a housing but a fundamental component that enhances the reliability and ergonomic integration of complex hydraulic machinery across a myriad of demanding applications.
Engineered for Durability: The 13 Gauge Carbon Steel Construction
The foundation of this console's exceptional durability lies in its construction from 13-gauge carbon steel. This specific material choice is strategic, offering a superior balance of strength, rigidity, and formability. At approximately 0.090 inches (or 2.286 mm) thick, 13-gauge steel provides substantial resistance against physical impact, deformation, and vibration, which are common stressors in heavy-duty industrial and mobile hydraulic environments. Carbon steel, known for its high tensile strength and yield strength, ensures that the console maintains its structural integrity even under harsh operating conditions, effectively shielding the delicate internal valve mechanisms from external forces, accidental damage, and the ingress of environmental contaminants.
The manufacturing process for this console leverages advanced fabrication techniques to ensure precision and structural consistency. Utilizing state-of-the-art laser cutting and CNC bending technologies, the 13-gauge steel is accurately cut and formed, resulting in a housing with tight tolerances and crisp lines. This precision not only contributes to the aesthetic appeal but, more importantly, ensures a perfect fit for the hydraulic controls and facilitates straightforward installation. The inherent weldability of carbon steel also allows for robust joint construction, further augmenting the overall strength and longevity of the console, making it a reliable barrier against the rigors of daily operation.
Advanced Corrosion Resistance: Black Powder-Coated Finish
The longevity and aesthetic integrity of any outdoor or industrial component are heavily dependent on its surface finish. The Black Quad Lever Remote Valve Control Console features a premium black powder-coated finish, specifically chosen for its superior corrosion resistance and durability compared to conventional liquid paints. The powder coating process involves electrostatically applying a dry powder (a mixture of finely ground particles of pigment and resin) to the steel substrate, which is then cured under heat. This curing process causes the powder to melt and flow out to form a "skin," resulting in a tough, uniform, and aesthetically pleasing finish.
Beyond its visual appeal, the black powder coat serves several critical protective functions. It creates a highly resilient barrier against abrasive wear, chipping, and scratching, preserving the underlying carbon steel from exposure to moisture, chemicals, salts, and other corrosive agents prevalent in challenging operational settings. Furthermore, powder coating exhibits excellent UV resistance, preventing fading and degradation when exposed to prolonged sunlight, thereby maintaining the console's professional appearance over its operational lifespan. This robust finish significantly extends the service life of the console, reducing maintenance requirements and ensuring continuous protection for the enclosed hydraulic controls. The pre-treatment phase prior to powder coating, typically involving thorough cleaning and phosphating, is crucial for optimal adhesion and maximizing the anti-corrosion properties, ensuring a bond that withstands the most demanding applications.
Optimized Control Integration: The Quad Lever Configuration
Designed specifically to accommodate up to four control levers, this console is ideally suited for complex hydraulic systems requiring multiple simultaneous or sequential operations. The "Quad Lever" designation indicates its capacity to integrate four individual control mechanisms, providing operators with a centralized and organized interface for sophisticated machinery. This configuration is particularly advantageous in applications such as multi-function excavators, agricultural implements with several attachments, or snowplows and salt spreaders where precise control over various hydraulic functions (e.g., blade angle, lift, material flow, spreader engagement) is essential. By consolidating controls within a single, protected unit, the console streamlines the operator's workspace, reducing clutter and enhancing ergonomic efficiency.
The provision for four levers within a compact 6-9/16" wide by 9" high footprint allows for efficient utilization of cab space, an increasingly important consideration in modern vehicle design. This thoughtful dimensioning ensures that the console can be integrated into various operator environments without impeding visibility or access to other vital vehicle controls. Furthermore, the console's robust housing provides a stable and secure mounting point for the control levers, minimizing flex and play during operation, which translates into a more precise and responsive feel for the operator. This level of control fidelity is critical for tasks demanding fine manipulation and consistent performance.
Strategic Versatility: Simple Installation and Stackable Design
The design philosophy behind the Buyers Products Remote Valve Control Console emphasizes ease of integration and adaptability. Installation is simplified through the inclusion of all necessary fasteners and pre-engineered mounting points. This ensures that technicians can quickly and securely install the console, minimizing downtime and labor costs. The thoughtful engineering extends to the internal layout, providing ample space for routing hydraulic lines and wiring, further contributing to a clean and professional installation.
A distinctive feature that significantly enhances the console's versatility is its stackable design. While this specific unit is a quad configuration, the ability to stack consoles means that even more complex hydraulic systems can be managed with a cohesive and organized control station. For applications requiring five, six, or even eight or more control levers, multiple single, dual, triple, or quad units can be securely stacked, creating a customized control panel tailored to the exact specifications of the equipment. This modularity offers unparalleled flexibility, allowing equipment manufacturers and upfitters to design highly specialized control systems without the need for bespoke fabrication. This capability also future-proofs installations, allowing for easy expansion or modification as equipment functionalities evolve, making it an invaluable asset for long-term operational planning.
Critical Protection for Hydraulic Spool Valves
The primary function of this console is to protect the delicate hydraulic spool valve controls. Spool valves are integral components in hydraulic circuits, directing the flow of pressurized fluid to actuators, cylinders, and motors. Their precise operation depends on the integrity of their internal mechanisms. Exposure to environmental elements such as dust, dirt, moisture, and debris can lead to premature wear, stickiness, and failure of the spool, resulting in costly repairs and operational downtime. The console acts as a robust physical barrier, preventing these contaminants from compromising the functionality of the control levers and the underlying valve linkages.
Beyond environmental protection, the console guards against physical damage. Accidental impacts, snagging, or unintentional actuation can lead to significant operational hazards and component damage. By enclosing the controls within its 13-gauge steel housing, the console significantly reduces the risk of such occurrences, thereby enhancing both equipment safety and operator security. This proactive protection extends the operational lifespan of the hydraulic components, safeguarding the substantial investment made in high-quality hydraulic systems and reducing the total cost of ownership over the equipment's lifetime.
Detailed Technical Specifications and Dimensional Analysis
A thorough understanding of the console's precise dimensions and material properties is essential for effective system integration.
- Width (6.31" / 6-5/16"): This specific width is engineered to provide adequate spacing for four control levers while maintaining a compact footprint. It ensures comfortable access for the operator without being overly intrusive in the cab or control station.
- Depth (3.69"): The relatively shallow depth allows for versatile mounting options, ensuring that the console does not protrude excessively, thereby preserving valuable space and maintaining clear sightlines. This dimension is crucial for integrating the console into instrument panels or armrests without compromising ergonomics.
- Height (9.00"): The 9-inch height accommodates the necessary internal mechanisms and lever travel for up to four controls, while still allowing for ergonomic placement within the operator's reach envelope.
- Material (Carbon Steel): As previously detailed, carbon steel offers the optimal blend of strength, durability, and cost-effectiveness for this application.
- Gauge (13 Ga): Translating to approximately 0.090 inches or 2.286 millimeters, this thickness provides the necessary structural rigidity to resist deformation and protect internal components effectively, without adding excessive weight.
- Color (Black): The standard black finish is highly functional, minimizing glare and complementing most equipment interiors, while also effectively concealing grime and minor scuffs inherent in industrial use.
- Finish (Powder-Coat): The advanced powder-coat finish ensures exceptional resistance to corrosion, abrasion, and UV radiation, extending the product's lifespan and maintaining its appearance.
- Maximum Number of Controls (4): Clearly defining its primary capacity, this specification highlights its suitability for systems requiring up to four independent hydraulic functions.
Applications Across Industries
The robustness, versatility, and protective capabilities of this console make it an ideal component across a wide array of industries. In construction, it can be found on excavators, backhoes, and bulldozers, managing multiple functions like bucket articulation, boom movement, and auxiliary attachments. For agricultural machinery, it facilitates precise control over plows, harvesters, and sprayers, enhancing operational efficiency. Municipal and utility vehicles, such as snowplows, dump trucks, and refuse vehicles, benefit from its ability to protect critical controls from harsh weather and constant use. Material handling equipment, including forklifts and telehandlers, leverage its multi-lever capacity for intricate load manipulation. Its adaptability also extends to marine applications, specialized industrial machinery, and custom-built equipment where reliable, protected hydraulic control is non-negotiable.
Conclusion: A Strategic Investment in Hydraulic Control
The Black Quad Lever Remote Valve Control Console from Buyers Products stands as a testament to thoughtful engineering, robust material selection, and practical design. Its 13-gauge carbon steel construction, fortified by a durable black powder-coat finish, offers unparalleled protection for up to four hydraulic spool valve controls, mitigating risks from environmental exposure and physical damage. The console's precise dimensions, simple installation, and innovative stackable design underscore its versatility and adaptability, making it an indispensable component for consolidating complex hydraulic operations into a single, cohesive, and ergonomically sound control station. By safeguarding vital hydraulic components, this console not only extends equipment lifespan and reduces maintenance costs but also significantly enhances operational safety and efficiency across diverse industrial and mobile applications. It represents a strategic investment for any organization prioritizing the reliability, control, and longevity of their hydraulic machinery.
