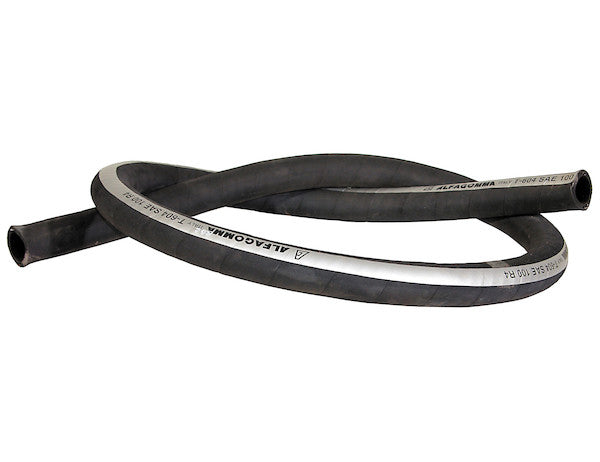

WLH075600 - 3/4 Inch I.D. Suction Hose 50 Foot long

Advanced Technical Overview: 3/4 Inch I.D. Suction Hose, 50-Foot Length

The Buyers Products 3/4 Inch I.D. Suction Hose, provided in a generous 50-foot (600 inch) length, represents a critical component in the efficient and reliable operation of hydraulic and fluid transfer systems. Engineered for demanding environments, this hose adheres rigorously to the Society of Automotive Engineers (SAE) 100R4 standard, signifying its robust design and suitability for heavy-duty suction and low-pressure return line applications. Its specialized construction, featuring an internal wire wrap reinforcement, directly addresses the unique challenges inherent in suction line duties, ensuring consistent performance and prolonged service life.

The Intricacies of Suction Line Performance

In any hydraulic or fluid transfer system, the suction line serves as the crucial conduit responsible for drawing fluid from a reservoir or tank to the inlet port of a pump. Unlike pressure lines, which contend with fluid forces pushing outwards, suction lines operate under conditions of negative pressure, or vacuum. This operational dynamic introduces distinct engineering challenges. A conventional hose, not specifically designed for suction, would be highly susceptible to collapse or kinking under the external atmospheric pressure, thereby impeding fluid flow, inducing cavitation in the pump, and ultimately leading to premature system failure.

Cavitation, a phenomenon characterized by the formation and subsequent implosion of vapor bubbles within the fluid, is a significant concern in suction lines. When the pressure at the pump inlet drops below the vapor pressure of the hydraulic fluid, these bubbles form. Their rapid collapse upon entering higher-pressure regions of the pump generates intense shockwaves, leading to erosion of pump components, increased noise, reduced efficiency, and substantial downtime. A well-designed suction hose, like this SAE 100R4 offering, mitigates these risks by maintaining its structural integrity under vacuum, ensuring a stable and uninterrupted flow of fluid to the pump.

Adherence to SAE 100R4 Standard: A Benchmark of Quality and Reliability

The SAE J517 standard delineates specifications for various types of hydraulic hoses, with each "R" designation corresponding to a specific construction and performance profile. The SAE 100R4 standard is specifically engineered for "heavy-duty suction and return line applications for use with petroleum-based hydraulic fluids." This designation is not merely a label; it is a testament to the hose's ability to perform consistently under defined operational parameters, ensuring safety and efficiency in industrial and mobile hydraulic systems.

Key performance criteria mandated by SAE 100R4, and inherently met by this Buyers Products hose, include:

• Vacuum Resistance: The fundamental requirement for suction hoses is their ability to withstand internal vacuum without collapsing. The internal wire wrap reinforcement is precisely the design element that enables this hose to maintain its circular cross-section, even under severe negative pressure.
• Fluid Compatibility: The hose is designed to be compatible with petroleum-based hydraulic fluids, encompassing a vast majority of industrial applications. The inner tube material is carefully selected to resist degradation, swelling, or contamination when exposed to these fluids over extended periods and varying temperatures.
• Temperature Range: While not explicitly listed in the specifications table, SAE 100R4 hoses are typically rated for a broad operating temperature range, commonly from -40°F to +212°F (-40°C to +100°C), accommodating diverse operational climates and fluid temperatures. This ensures the material properties, such as flexibility and chemical resistance, remain stable across these conditions.
• Flexibility and Bend Radius: A reasonable bend radius is crucial for ease of installation and to prevent kinking, which can restrict flow and compromise the hose’s integrity. SAE 100R4 hoses are designed to offer a balance between rigidity (to resist collapse) and flexibility (for routing).
• Working and Burst Pressure: The specified working pressure of 300 PSI and a burst pressure of 1200 PSI establish a safety factor of 4:1. This is a critical safety margin, indicating that the hose can reliably withstand normal operating pressures and provide a substantial buffer against transient pressure spikes, which can occur during system startup or shut down, even in return lines. It underscores the hose's structural integrity, even though its primary role is not high-pressure conveyance.

Deconstructing the Construction: Rubber/Reinforced with Internal Wire Wrap

The "Rubber/reinforced" construction, featuring an "internal wire wrap," is central to the superior performance of this suction hose. A detailed examination reveals a multi-layered engineering marvel:

1. Inner Tube: The innermost layer, directly in contact with the hydraulic fluid, is crafted from a high-quality synthetic rubber compound, typically Nitrile (Buna-N) or a similar elastomer. This material is chosen for its excellent chemical compatibility with petroleum-based hydraulic fluids, low permeability, and resistance to degradation from heat and additives in the fluid. A smooth bore design is crucial here to minimize friction and turbulence, ensuring optimal flow efficiency and reducing the risk of cavitation.
2. Reinforcement Layer (Internal Wire Wrap): This is the distinguishing feature of the SAE 100R4 suction hose. The robust spiral wire, often high-tensile steel, is integrated within the hose wall. Its primary function is to provide exceptional resistance to external atmospheric pressure, preventing the hose from collapsing under vacuum. The spiral configuration allows for flexibility while maintaining dimensional stability. Beyond the wire, SAE 100R4 often incorporates multiple plies of textile reinforcement (e.g., cotton, polyester, or rayon braids) to enhance structural integrity, provide burst strength, and absorb minor pressure pulsations, further contributing to the hose's overall resilience and durability.
3. Outer Cover: The outermost layer is typically made from a durable, weather-resistant synthetic rubber compound. This cover provides vital protection against environmental aggressors such as abrasion, ozone, UV radiation, oil, grease, and general industrial chemicals. Its robust composition ensures the hose maintains its performance characteristics even when exposed to harsh operating conditions, preventing external damage that could compromise the integrity of the reinforcement layers. The cover’s resistance to ozone and UV is particularly important for hoses used in outdoor or mobile applications, where exposure to sunlight and atmospheric elements is constant.

Analytical Breakdown of Specifications

• Inner Diameter (0.75 Inches / 3/4 Inch): The internal diameter is a critical parameter for fluid mechanics. For a suction line, a correctly sized I.D. is essential to maintain acceptable fluid velocity and minimize pressure drop. A 3/4-inch I.D. is suitable for a wide array of medium-flow hydraulic systems, ensuring that the net positive suction head (NPSH) required by the pump is met. An undersized hose would lead to excessive velocity, increased friction losses, and a significant drop in pressure, exacerbating the risk of cavitation. Conversely, an oversized hose would lead to slower fluid velocities, potentially allowing entrained air to separate and collect, or leading to sluggish system response.
• Length (50 Foot / 600 Inches): A 50-foot length offers considerable flexibility for routing in complex machinery or across larger distances, reducing the need for multiple connections that can be points of leakage or flow restriction. When dealing with longer suction lines, careful consideration must be given to overall pressure drop. While the hose itself is designed for optimal flow, the cumulative effect of length on resistance needs to be factored into system design to ensure the pump’s NPSH requirements are consistently satisfied.
• Working Pressure (300 PSI) & Burst Pressure (1200 PSI): As discussed, these values, particularly the 4:1 safety factor, highlight the hose's robust construction. While primarily a suction/return hose, the ability to withstand 300 PSI working pressure ensures it can handle transient pressure fluctuations that may occur in return lines or during specific operational cycles without risk of failure. The high burst pressure provides an indispensable safety buffer, protecting against unexpected overpressure events.
• Hose Application (Suction) & Hose Construction (Rubber/reinforced): These specifications directly confirm the hose’s purpose-built design. The combination of durable rubber compounds and the specific reinforcement type (internal wire wrap) is optimally configured for suction duties, distinguishing it from conventional pressure hoses.

Critical Distinction: Suction vs. Pressure Applications

It is imperative to reiterate the cautionary statement: "It should not be used in pressure applications." This distinction is not arbitrary but fundamental to hydraulic system design and safety. Pressure hoses, such as SAE 100R1 through 100R16 (excluding 100R4), are constructed with multiple layers of high-tensile wire or textile braids designed to contain immense internal pressures. While a suction hose possesses a working pressure rating, its primary reinforcement (the internal wire wrap) is optimized for vacuum resistance, not for containing continuous, high outward radial forces. Using a suction hose in a high-pressure application would lead to rapid material fatigue, premature failure, and pose severe safety risks due to potential hose rupture and fluid injection injuries.

Versatile Applications and System Integration

The 3/4 Inch I.D. Suction Hose from Buyers Products finds extensive utility across a broad spectrum of industries and equipment, including:

• Mobile Hydraulics: Essential in construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), and material handling vehicles (forklifts), where reliable fluid transfer from reservoirs to hydraulic pumps is paramount.
• Industrial Machinery: Utilized in manufacturing plants for powering presses, robotic systems, and assembly lines, ensuring a consistent supply of hydraulic fluid to various actuators.
• Truck and Trailer Systems: Integral to dump trucks, refuse vehicles, and utility trucks for hydraulic lifting mechanisms, plows, and other auxiliary functions.
• Marine Applications: Employed in various marine vessels for steering systems, winches, and other hydraulic equipment, demanding resistance to harsh environmental conditions.
• Return Lines: Equally effective as a return line, channeling hydraulic fluid back to the reservoir from the system, where low-pressure, high-volume flow is typical, and flexibility with collapse resistance is still beneficial, especially if the return line is subject to vacuum conditions at certain points or if it needs to withstand external forces.

Its availability in bulk (50-foot length) offers exceptional value and flexibility for custom installations, allowing precise cutting and fitting to specific application requirements. This eliminates waste and ensures optimal hose routing, critical for maximizing system efficiency and longevity.

Installation and Maintenance Protocol

Proper installation and routine maintenance are paramount to realizing the full potential and longevity of this suction hose:

1. Routing: Hoses should be routed to minimize bends and avoid sharp angles, which can induce stress and restrict flow. The natural bend radius of the hose should be respected.
2. Twist Prevention: Avoid twisting the hose during installation, as this can severely reduce its life and capacity. A twist of just 7 degrees can reduce hose life by 90%.
3. Chafe Protection: Protect the hose from abrasion by ensuring it does not rub against sharp edges or other components. Use clamps, brackets, and protective sleeves where necessary.
4. Temperature Exposure: While rated for a wide temperature range, extreme heat or cold beyond the hose's specification can degrade material properties. Position hoses away from direct heat sources when possible.
5. Inspection: Regularly inspect the hose for signs of wear, such as cracks, blisters, kinks, soft spots, or external damage to the cover. Pay close attention to areas near fittings. Any visible signs of internal collapse or kinking, even if subtle, warrant immediate replacement to prevent pump damage due to cavitation.
6. Contamination Control: Ensure hydraulic fluid is clean and free of particulate matter, as contaminants can prematurely wear the inner tube and other system components.
7. Fitting Selection and Assembly: For bulk hose, the selection of appropriate fittings and proper crimping procedures are critical for creating a leak-proof and secure connection. Consulting industry standards and manufacturer guidelines for hose assembly is essential.

Conclusion: A Foundation of Reliability for Hydraulic Systems

The Buyers Products 3/4 Inch I.D. Suction Hose, 50-foot length, stands as a testament to engineering excellence in fluid conveyance. Its robust rubber/reinforced construction with the integral wire wrap, coupled with strict adherence to the SAE 100R4 standard, ensures unparalleled performance in suction and return line applications. By effectively mitigating the risks of collapse and cavitation, this hose protects critical pump components, maximizes system uptime, and contributes significantly to the overall efficiency and safety of hydraulic operations. For professionals seeking a durable, reliable, and compliant solution for their heavy-duty fluid transfer requirements, this product offers an optimal balance of technical sophistication and practical utility, representing a prudent investment in the long-term health and productivity of their hydraulic systems.
