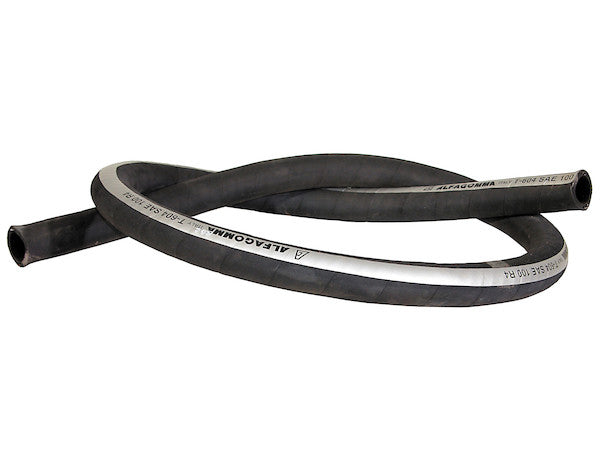

WLH100600 - 1 Inch I.D. Suction Hose 50 Foot long

The Suction Hose from Buyers Products is built strong and internally reinforced for long-lasting performance. The SAE 100R4 hose has an internal wire wrap that prevents it from collapsing. It's available for either suction or return line functions, in a range of lengths. It should not be used in pressure applications.

Specifications

The 1 Inch I.D. Suction Hose, precisely engineered to a length of 50 feet, represents a robust solution for critical fluid transfer applications that primarily involve suction or low-pressure return line functions. Manufactured by Buyers Products, this hose is designed to meet the rigorous demands of industrial, mobile, and agricultural systems where the reliable transport of non-pressurized fluids is paramount. Its construction adheres strictly to the SAE 100R4 standard, ensuring a high level of performance, durability, and safety for its intended use cases.

At the core of this product's exceptional performance is its meticulously engineered construction. The hose features a multi-layered design, each component playing a vital role in its overall integrity and functional efficiency. The innermost layer, or tube, is typically crafted from a high-quality, oil-resistant synthetic rubber compound. This material selection is critical as it directly interfaces with the conveyed fluid, preventing contamination and ensuring chemical compatibility with a wide array of hydraulic oils, petroleum-based fluids, and other industrial liquids. The smooth bore of the inner tube minimizes flow resistance, thereby optimizing the efficiency of fluid transfer and reducing energy consumption within the system. Furthermore, the robust nature of this synthetic rubber provides excellent resistance to degradation from fluid exposure, maintaining its physical properties over extended operational periods and contributing to the hose's prolonged service life.

The defining characteristic that sets this suction hose apart, and a direct requirement of the SAE 100R4 specification, is its internal reinforcement structure. This specific hose incorporates an internal wire wrap, typically a helical steel wire embedded within the rubber matrix. The primary function of this reinforcement is to prevent the hose from collapsing under vacuum conditions. In suction applications, the internal pressure within the hose drops significantly below atmospheric pressure, creating a vacuum that would cause an unreinforced hose to flatten and restrict fluid flow, or even completely fail. The robust wire helix acts as a structural skeleton, providing circumferential strength to resist these compressive forces. This anti-collapse feature is indispensable for maintaining consistent fluid flow rates and preventing cavitation within pumps, ensuring the smooth and continuous operation of the system. In addition to the wire helix, textile braids or spirals may also be incorporated as secondary reinforcement layers, providing further structural integrity and contributing to the hose's resistance to minor pressure fluctuations and external stresses.

Encasing these internal layers is a durable outer cover, also made from a specially formulated synthetic rubber compound. This external sheath is engineered to withstand the harsh environmental conditions frequently encountered in industrial and outdoor settings. Key attributes of the outer cover include superior resistance to abrasion, ozone, weathering, and moderate chemical exposure. Abrasion resistance is crucial for applications where the hose may rub against equipment, uneven surfaces, or endure dragging, protecting the internal reinforcement from damage. Ozone and weathering resistance ensure that the hose does not degrade prematurely when exposed to ultraviolet (UV) radiation from sunlight or atmospheric ozone, which can lead to cracking and material breakdown. This comprehensive protection of the external layer significantly contributes to the hose's longevity and reliability, minimizing the need for frequent replacement and reducing operational downtime.

The adherence to the SAE 100R4 standard is a critical technical differentiator for this product. SAE J517 specifies the dimensions and performance requirements for various types of hydraulic hoses, with 100R4 specifically designating wire-reinforced, rubber-covered hydraulic suction hose. This standard mandates the use of an internal wire helix to resist vacuum, alongside specific requirements for the inner tube and outer cover materials. Compliance with SAE 100R4 signifies that the hose has been manufactured to a recognized industry benchmark for quality, performance, and safety in low-pressure and vacuum applications. It assures engineers and technicians that the hose is specifically designed and tested for its advertised functions, providing confidence in its ability to perform reliably under the stipulated operating conditions.

Understanding the distinction between suction, return, and pressure applications is fundamental to the correct and safe deployment of this hose. This 1-inch I.D. hose is explicitly designed for suction and return line functions. In a suction application, the hose is subjected to negative pressure, drawing fluid into a pump or system from a reservoir or tank. The internal wire wrap is absolutely critical here to prevent the hose from collapsing under the vacuum created by the pump. Without this reinforcement, the hose would occlude, leading to pump cavitation, reduced system efficiency, and potential pump damage. Typical scenarios include drawing hydraulic fluid from a reservoir, transferring process water, or handling low-viscosity industrial fluids into processing equipment. The internal diameter of 1.00 inch is optimized for a balanced flow rate, minimizing pressure drop while allowing for adequate volumetric transfer in these suction scenarios.

For return line functions, the hose carries fluid back to a reservoir from various components within a hydraulic system. While return lines typically operate at lower pressures compared to pressure lines, they still require a robust hose that can handle continuous flow and potential minor pressure fluctuations. The SAE 100R4 construction, with its durability and resistance to wear, is well-suited for these roles. Although not primarily designed for high internal pressure, the specified working pressure of 250 PSI for this hose refers to its capacity to resist external crushing forces or, in specific contexts, its short-term ability to contain transient, low-level positive pressures that might occur in return lines. It is crucial to interpret this working pressure rating within the context of a suction/return hose, recognizing that its primary strength lies in resisting vacuum, not containing continuous high positive pressure.

Conversely, this hose should unequivocally not be used in pressure applications where fluid is conveyed under continuous high positive pressure. Hoses designed for high-pressure applications (e.g., SAE 100R1, 100R2, 100R12) feature multi-ply textile or steel wire braids or spirals that are engineered to withstand substantial internal hoop stresses. The reinforcement structure of an SAE 100R4 hose, while excellent for resisting vacuum, is fundamentally different and insufficient for containing high internal pressures. Using this suction hose in a high-pressure line would pose a significant safety risk, leading to premature failure, rupture, and potential injury or property damage. The specified burst pressure of 1000 PSI serves as a critical safety margin against catastrophic failure, indicating the ultimate pressure at which the hose is expected to fail under ideal conditions, but it is not indicative of its suitability for continuous high-pressure operation. Adhering to the "no pressure applications" guideline is paramount for operational safety and system integrity.

The physical dimensions of this hose are key to its utility. With an inner diameter (I.D.) of 1.00 inch, this hose offers a substantial conduit for fluid transfer. The precise control over the internal diameter is critical for maintaining specific flow rates and velocities within a hydraulic or fluid transfer system. A 1-inch I.D. is a common and versatile size, suitable for a wide range of industrial equipment where moderate to high volumes of fluid need to be moved efficiently. This specific dimension ensures compatibility with standard fittings, clamps, and connections typically used for this bore size, facilitating ease of installation and maintenance.

The impressive length of 50 feet (equivalent to 600 inches) provides exceptional reach and flexibility in system design. This extended length can simplify complex installations by reducing the number of necessary connections, thereby minimizing potential leak points and reducing installation time and costs. For applications requiring significant distances between components, such as connecting a remote reservoir to a pump, or traversing large machinery, a 50-foot hose eliminates the need for multiple hose segments and intermediate connectors, leading to a cleaner, more reliable, and more aesthetically pleasing setup. The availability of such lengths ensures that diverse industrial layouts can be accommodated without compromising performance.

While the specifications list a working pressure of 250 PSI and a burst pressure of 1000 PSI, it is imperative to interpret these values within the context of a suction hose. The working pressure primarily indicates the maximum safe operating pressure the hose can intermittently experience, or its resistance to external compression. For a suction line, the internal pressure is typically negative (vacuum). The burst pressure provides a safety factor, being four times the working pressure, highlighting the robust nature of the hose's construction even beyond its rated operational limits. For suction hoses, these ratings contribute to the overall resilience, ensuring the hose can withstand minor external impacts or incidental positive pressure spikes without immediate failure, though continuous pressure use is strictly prohibited.

Another crucial technical parameter for any hose, though not explicitly listed, is its operational temperature range and minimum bend radius. For an SAE 100R4 hose, a typical operating temperature range might be from -40°F to +212°F (-40°C to +100°C). This wide range ensures reliable performance across diverse climatic conditions and operational heat generation within hydraulic systems. Operating outside this temperature range can lead to material degradation, reduced flexibility, and premature failure. The minimum bend radius, which specifies the tightest curve the hose can form without kinking or damaging its structure, is also vital for proper installation. Exceeding the minimum bend radius can compromise the internal reinforcement, restrict fluid flow, and significantly shorten the hose's lifespan. Proper hose routing, respecting the bend radius, is essential for maintaining system integrity and hose longevity.

The materials science behind the rubber compounds used in this hose is advanced, ensuring optimal performance characteristics. The synthetic rubber blend for the inner tube is chosen for its low permeability to fluids, preventing weeping and maintaining system cleanliness. Its elastic properties allow for some degree of flexibility, aiding in installation, while resisting permanent deformation under vacuum. The outer cover's synthetic rubber is formulated with additives that enhance its resistance to environmental aggressors, including UV stabilizers and anti-ozonants. These chemical compounds mitigate the effects of environmental degradation, ensuring the hose maintains its physical properties, such as flexibility and tensile strength, over its operational lifetime, even in harsh outdoor environments.

In terms of compatibility, the design of this hose, with no pre-attached fittings, offers maximum flexibility for end-users. This allows for the selection and installation of application-specific fittings (e.g., barb fittings, compression fittings, or custom connections) that best suit the particular equipment and system requirements. The absence of factory-crimped fittings also means that the hose can be cut to custom lengths if a shorter segment is needed from the 50-foot roll, offering adaptability for various projects. It is imperative that appropriate hose clamps or crimped fittings are correctly installed to ensure a leak-free and secure connection capable of maintaining vacuum integrity.

The 1 Inch I.D. Suction Hose from Buyers Products delivers exceptional long-lasting performance due to the synergy of its robust material selection, superior engineering, and adherence to established industry standards. This hose is a critical component for systems requiring dependable fluid transfer under negative pressure, offering a reliable pathway for hydraulic oil, coolants, non-corrosive chemicals, and other industrial fluids. Its internal wire wrap provides a non-collapsing conduit, ensuring continuous flow and protecting sensitive pumping equipment from cavitation and stress. The heavy-duty rubber construction resists external damage, enhancing its service life in demanding operational environments.

Investing in this high-quality suction hose translates directly into operational benefits, including reduced maintenance frequency, minimized downtime, and enhanced system efficiency. Its durable design ensures that systems can operate continuously and effectively, without the interruptions caused by hose collapse or premature failure. This product is a testament to meticulous engineering, providing a reliable and safe solution for a broad spectrum of industrial and mobile hydraulic applications, from construction machinery and agricultural equipment to manufacturing facilities and material handling systems, where non-pressurized fluid movement is a constant requirement. The longevity and resilience built into every aspect of its design make it a cost-effective choice for professionals seeking uncompromising performance and reliability in their fluid transfer infrastructure.
