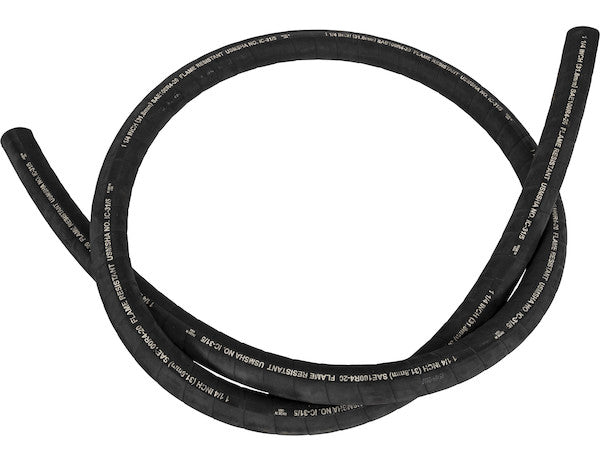

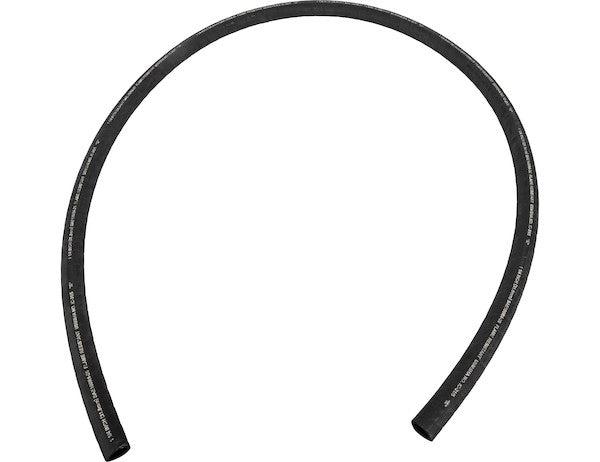

WLH125120 - 1-1/4 Inch I.D. Suction Hose 10 Foot long

The Suction Hose from Buyers Products is built strong and internally reinforced for long-lasting performance. The SAE 100R4 hose has an internal wire wrap that prevents it from collapsing. It's available for either suction or return line functions, in a range of lengths. It should not be used in pressure applications.

Specifications

Technical Overview: 1-1/4 Inch I.D. SAE 100R4 Suction Hose, 10 Foot Length

This comprehensive technical description details the specifications, design principles, material science, and operational considerations of the 1-1/4 Inch I.D. SAE 100R4 Suction Hose, provided in a 10-foot length. Engineered for demanding industrial and mobile hydraulic applications, this hose is precisely manufactured to meet the rigorous performance requirements of suction and return line service, where maintaining bore integrity under vacuum conditions is paramount. It is imperative to note that this specific hose construction is designed exclusively for low-pressure suction and return applications and is explicitly unsuitable for high-pressure fluid transfer, as indicated by its SAE 100R4 classification.

Design and Construction Principles

The core functionality of a suction hose is to facilitate the transfer of hydraulic fluid from a reservoir or low-pressure source to a pump inlet or within a non-pressurized return circuit without collapsing under the negative pressure (vacuum) generated by the pump. The Buyers Products Suction Hose achieves this through a robust, multi-layered construction conforming to the SAE 100R4 standard.

Inner Tube: Fluid Compatibility and Flow Integrity

The inner tube, the component directly in contact with the hydraulic fluid, is constructed from a synthetic rubber compound, typically a blend of NBR (Nitrile Butadiene Rubber) or similar elastomers. This material choice is critical for several reasons:

• Fluid Compatibility: NBR offers excellent resistance to petroleum-based hydraulic fluids, mineral oils, and certain synthetic fluids, preventing degradation, swelling, or hardening of the hose material that could lead to contamination or premature failure.
• Smooth Bore: The inner tube features a smooth, consistent bore of 1.25 inches (31.75 mm). This precise inner diameter minimizes turbulence and pressure drop, ensuring efficient fluid flow and optimal pump performance. Any internal irregularities or restrictions would increase cavitation risk at the pump inlet, leading to operational inefficiencies and potential damage.
• Temperature Resistance: The selected rubber compound is designed to maintain its elastomeric properties across a wide operating temperature range, typically from -40°F to +212°F (-40°C to +100°C), accommodating varying environmental and operational conditions inherent in hydraulic systems.

Reinforcement Layer: Anti-Collapse Helix Wire

The defining characteristic of an SAE 100R4 hose, and the primary mechanism preventing collapse under vacuum, is its internal wire helix reinforcement. This spiral-wound steel wire is embedded within the rubber matrix, providing structural rigidity while maintaining significant flexibility. Unlike pressure hoses that rely on braided textile or wire layers to resist outward radial forces, the wire helix in a suction hose is engineered to withstand inward radial forces (vacuum). The specific advantages of this reinforcement include:

• Vacuum Resistance: The steel wire helix acts as a rigid skeleton, maintaining the hose's circular cross-section even under high vacuum levels. This prevents kinking or flattening, which would restrict fluid flow and starve the pump.
• Durability: The wire reinforcement contributes to the overall strength and longevity of the hose, resisting deformation from external impacts or routing stresses.
• Flexibility: Despite the wire's rigidity, the spiral design allows for significant flexibility, facilitating installation and routing in complex hydraulic systems without compromising performance. The 10-foot length benefits from this flexibility during installation.

Outer Cover: Protection and Environmental Resistance

The outermost layer of the hose is a robust synthetic rubber cover, often a compound chosen for its superior resistance to environmental factors and mechanical wear. Key properties include:

• Abrasion Resistance: Protects the internal reinforcement and inner tube from physical damage due to rubbing, scraping, or impact during operation or installation.
• Weather Resistance: Formulated to withstand exposure to ozone, UV radiation, moisture, and common industrial chemicals, preventing premature aging, cracking, and degradation.
• Oil and Chemical Resistance: Offers an additional layer of protection against external spills or splashes of hydraulic fluids, fuels, or other solvents that may be present in industrial environments.

SAE 100R4 Standard: Specifics and Implications

The Society of Automotive Engineers (SAE) J517 standard defines various hydraulic hose types, with SAE 100R4 specifically addressing low-pressure suction and return line applications. Adherence to this standard signifies that the hose meets stringent criteria for construction, performance, and material specifications, ensuring reliability and safety in its intended use. Key aspects of the SAE 100R4 standard include:

• Application Focus: Exclusively for petroleum-based hydraulic fluids and lubricating oils at temperatures ranging from -40°C to +100°C (-40°F to +212°F). It is explicitly designated for suction lines or low-pressure return lines where significant vacuum or minimal positive pressure is present.
• Vacuum Rating: A critical parameter for SAE 100R4 hoses is their ability to withstand vacuum without collapsing. The standard mandates testing under specified vacuum levels to ensure the hose maintains its full internal diameter under typical suction conditions.
• Pressure Rating: While primarily a suction hose, SAE 100R4 does specify a nominal working pressure, which for this 1-1/4 inch hose is 200 PSI. This rating accommodates minor positive pressures that may occur in return lines or transient pressure spikes within the system, but it is not intended for continuous high-pressure operation.
• Bend Radius: The standard also specifies minimum bend radii to ensure the hose can be routed without kinking or compromising its structural integrity. This is particularly important for suction hoses, as kinking can lead to flow restriction and pump cavitation.
• Hose Identification: Manufacturers adhering to SAE standards are required to mark their hoses with identifying information, including the SAE designation, manufacturer's name, and date of manufacture, facilitating traceability and proper application.

In contrast to other SAE standards like 100R1, 100R2 (single and double wire braid for medium-high pressure), 100R12, or 100R13 (multiple spiral wire for high-very high pressure), the 100R4 classification highlights a unique structural design optimized for vacuum resistance rather than pressure containment. Misapplication of an R4 hose in a pressure environment can lead to catastrophic failure, emphasizing the importance of selecting the correct hose type for each specific system requirement.

Detailed Specifications and Performance Metrics

Inner Diameter (I.D.): 1.25 Inches (31.75 mm)

The inner diameter is a critical parameter influencing fluid flow rate, velocity, and pressure drop. A 1.25-inch I.D. is suitable for a wide range of hydraulic systems requiring moderate to high flow rates for suction or return. When selecting hose I.D., engineers consider:

• Flow Rate Requirements: To ensure the pump receives adequate fluid supply without cavitation, the I.D. must be large enough to accommodate the maximum flow rate.
• Fluid Velocity: Maintaining an optimal fluid velocity prevents excessive turbulence and energy loss. For suction lines, lower velocities are preferred to minimize pressure drop.
• Pressure Drop: While this hose is for suction, minimizing pressure drop across the hose itself is crucial for system efficiency. A larger I.D. generally results in lower pressure drop for a given flow.
• Fitting Compatibility: The 1.25-inch I.D. ensures compatibility with standard hydraulic fittings designed for this bore size, allowing for secure and leak-free connections.

Length: 10 Feet (120 Inches)

The 10-foot length provides ample reach and flexibility for various installations, allowing for proper routing that minimizes stress on the hose and fittings. Key considerations for hose length include:

• System Layout: Sufficient length to accommodate pump movement, component vibration, and system expansion/contraction without stretching or kinking the hose.
• Pressure Drop: While a longer hose can increase pressure drop, for suction lines, the primary concern is proper routing to avoid sharp bends which can induce local vacuum pockets or kinking.
• Inventory Management: Standard lengths like 10 feet simplify procurement, inventory, and replacement procedures.

Working Pressure: 200 PSI (13.8 Bar)

The working pressure of 200 PSI represents the maximum continuous operating pressure the hose is designed to safely withstand. For an SAE 100R4 hose, this rating primarily applies to return line functions where low positive pressures may be present. It is a critical safety parameter:

• Safety Factor: Hydraulic hoses are typically designed with a safety factor, often 4:1, meaning the burst pressure is at least four times the working pressure. This safety margin accounts for unforeseen pressure spikes, material fatigue, and degradation over time.
• System Design: Engineers must ensure that the maximum expected pressure in the return or suction line never exceeds 200 PSI, even under transient conditions. Exceeding this limit compromises hose integrity and can lead to premature failure.
• Distinction from Pressure Hoses: The 200 PSI working pressure clearly distinguishes this suction hose from high-pressure hydraulic hoses, which can have working pressures ranging from thousands to tens of thousands of PSI.

Burst Pressure: 800 PSI (55.2 Bar)

The burst pressure of 800 PSI is the theoretical internal pressure at which a new hose is expected to rupture under controlled testing conditions. As noted, it directly relates to the working pressure via the safety factor:

• Safety Margin: An 800 PSI burst pressure relative to a 200 PSI working pressure indicates a 4:1 safety factor, which is standard for most industrial hydraulic hoses. This margin is crucial for preventing catastrophic failures even if operating conditions temporarily exceed nominal working pressure.
• Reliability: A robust burst pressure rating assures the user of the hose's inherent strength and resistance to unexpected pressure surges, even though its primary application is non-pressure or low-pressure.
• Testing Protocol: Burst pressure is determined through destructive testing, where pressure is gradually increased until the hose fails. This validates the design and manufacturing quality.

Operational Considerations and Best Practices

Installation Guidelines

Proper installation is paramount to maximizing the lifespan and performance of the 1-1/4 inch suction hose:

• Routing: Avoid sharp bends, especially below the minimum bend radius specified by the manufacturer, to prevent kinking, which restricts flow and can damage the internal wire helix. Utilize the 10-foot length to allow for generous, sweeping curves.
• Torsional Stress: Do not twist the hose during installation. Torsional stress can significantly reduce hose life by compromising the reinforcement layers.
• Chafing Protection: Ensure the hose does not rub against abrasive surfaces or other components. Use clamps, protective sleeves, or routing guides where necessary, especially over a 10-foot run where contact points might increase.
• Length Management: Allow for slight changes in length under pressure/vacuum and temperature fluctuations. Do not stretch the hose taut.
• Fitting Attachment: While this product is a bulk hose, when fittings are crimped or attached, ensure they are compatible with SAE 100R4 specifications for the 1.25-inch I.D. and are installed according to manufacturer guidelines to achieve a secure, leak-free connection capable of withstanding vacuum.

Maintenance and Inspection

Regular inspection and proactive maintenance are essential for preventing system downtime:

• Visual Inspection: Periodically check the hose cover for signs of abrasion, cuts, cracks, blisters, or hardening. Inspect for kinking, especially near fittings or along long runs.
• Leakage/Weeping: Although a suction hose, any signs of fluid weeping from the cover or fittings indicate a potential issue.
• Deformation: Look for any signs of collapse or localized bulges, particularly under vacuum, which could indicate a compromised internal wire helix.
• Fitting Integrity: Ensure fittings are secure and free from corrosion or damage.
• Replacement Intervals: Adhere to manufacturer-recommended replacement schedules or replace the hose immediately if any signs of damage or degradation are observed.

Applications

The 1-1/4 Inch I.D. SAE 100R4 Suction Hose, 10-foot length, is a versatile component critical to the reliable operation of various hydraulic systems across numerous industries:

• Mobile Hydraulics: Widely used in construction equipment (excavators, loaders, bulldozers), agricultural machinery (tractors, harvesters), and utility vehicles for transferring hydraulic fluid from the reservoir to the main pump inlet or as low-pressure return lines from hydraulic cylinders and motors.
• Industrial Machinery: In stationary industrial equipment such as presses, manufacturing lines, and power units, this hose serves as the primary suction line for hydraulic pumps, ensuring a consistent and uninterrupted supply of fluid.
• Hydraulic Power Units (HPUs): Integral to HPUs, connecting the hydraulic reservoir to the pump intake, and as general return lines within the system, facilitating efficient fluid circulation back to the tank.
• Lubrication Systems: Suitable for low-pressure transfer of lubricating oils in various industrial applications.
• Fluid Transfer (Non-Pressure): Can be utilized for general low-pressure or gravity-feed fluid transfer applications where collapse resistance is required, beyond just hydraulic systems.

Conclusion

The 1-1/4 Inch I.D. SAE 100R4 Suction Hose, provided in a convenient 10-foot length by Buyers Products, represents a robust and technically sound solution for critical suction and low-pressure return line applications. Its specialized multi-layered construction, featuring a durable synthetic rubber inner tube, an indispensable internal wire helix, and an environmentally resistant outer cover, ensures exceptional performance under vacuum conditions and extends service life. Adherence to the stringent SAE 100R4 standard guarantees compatibility with petroleum-based hydraulic fluids within specified temperature ranges, coupled with a reliable working pressure of 200 PSI and a substantial 800 PSI burst pressure for safety. Proper selection, installation, and ongoing maintenance of this hose are fundamental to ensuring the efficiency, reliability, and longevity of the hydraulic systems it serves. This hose stands as a testament to engineering precision, designed to meet the demanding requirements of industrial and mobile hydraulic environments by preventing hose collapse, maintaining consistent flow, and ultimately safeguarding the hydraulic pump and the entire system.
