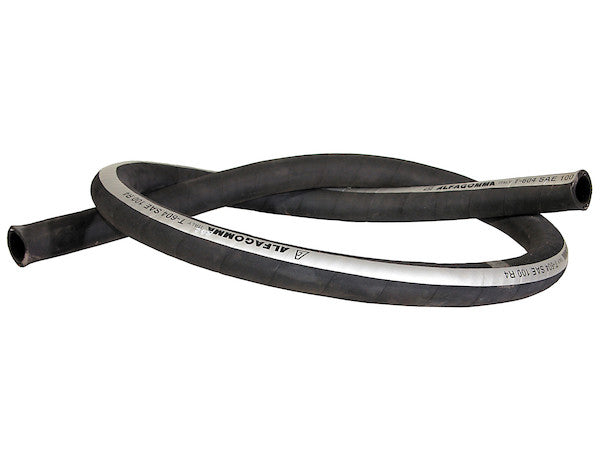

WLH125144 - 1-1/4 Inch I.D. Suction Hose 12 Foot long

The Suction Hose from Buyers Products is built strong and internally reinforced for long-lasting performance. The SAE 100R4 hose has an internal wire wrap that prevents it from collapsing. It's available for either suction or return line functions, in a range of lengths. It should not be used in pressure applications.

Specifications

The 1-1/4 Inch I.D. Suction Hose, precisely engineered and offered in a convenient 12-foot length, represents a critical component within a diverse array of hydraulic and fluid transfer systems. Manufactured by Buyers Products, this hose is specifically designed for applications demanding robust performance in suction or return line functions, where the primary challenge is to maintain internal integrity under vacuum conditions or to facilitate the unpressurized flow of fluid back to a reservoir. Its adherence to the rigorous SAE 100R4 standard underscores its suitability for these demanding, yet non-pressure-intensive, environments. This technical elucidation will delve into the advanced construction, material science, adherence to industry standards, and the functional implications of its specifications, thereby providing a comprehensive understanding of its operational capabilities and optimal application contexts.

At the core of this suction hose's design is its sophisticated construction, meticulously engineered to prevent collapse under negative pressure while offering resilience against external factors. The hose comprises a multi-layered structure, beginning with an inner tube crafted from high-quality synthetic rubber. This internal material is selected for its broad compatibility with a variety of hydraulic fluids, lubricants, and non-corrosive liquids, ensuring chemical stability and resistance to degradation over prolonged exposure. The smooth inner bore minimizes friction and turbulent flow, optimizing fluid transfer efficiency and reducing the potential for cavitation in suction applications, which can be detrimental to pump longevity and system performance.

Encasing the inner tube is a crucial reinforcement layer, typically composed of multiple plies of high-strength textile braid. This textile reinforcement provides the hose with its fundamental structural integrity and flexibility, allowing for effective routing within complex machinery while resisting kinking under normal operational bending radii. However, the defining characteristic, and indeed the most critical element for a suction hose, is the integrated internal wire wrap. This helical wire reinforcement, strategically embedded within the hose wall, acts as an anti-collapse mechanism. Under vacuum conditions, such as those created by the inlet side of a hydraulic pump drawing fluid from a reservoir, the internal wire helix prevents the hose walls from deforming inward, thereby maintaining the hose's full internal diameter and ensuring an uninterrupted, consistent flow of fluid. Without this specialized reinforcement, a standard pressure hose, or even a basic rubber hose, would likely collapse under suction, leading to flow restriction, pump starvation, and catastrophic system failure. The outer cover, also made from a durable synthetic rubber compound, provides robust protection against environmental aggressors including abrasion, ozone, weathering, and various industrial fluids and chemicals, significantly extending the hose's service life in challenging operational environments.

The designation "SAE 100R4" is central to understanding this product's engineering and intended use. SAE J517 is a comprehensive standard established by the Society of Automotive Engineers, which defines the specifications for various types of hydraulic hoses. The "100R4" classification specifically pertains to wire-reinforced, textile-covered hydraulic hose designed for suction lines and low-pressure return lines. Unlike high-pressure hydraulic hoses (e.g., 100R1, 100R2, 100R12), which are built with multiple layers of high-tensile steel wire braid or spiral wraps to withstand extreme internal pressures, SAE 100R4 hoses prioritize flexibility and, critically, collapse resistance under vacuum. The standard mandates specific performance criteria, including vacuum rating, maximum operating pressure, and temperature range. For an R4 hose, the vacuum resistance is paramount, requiring the hose to maintain its structural integrity and nominal internal diameter when subjected to a specified negative pressure. The maximum operating pressure, though present, is considerably lower than that of pressure hoses, typically ranging from 150 to 300 PSI, indicating its suitability for return flow or incidental positive pressure, rather than continuous high-pressure conveyance. The standard also dictates the acceptable temperature ranges, generally from -40°F to +212°F (-40°C to +100°C), which accommodates the typical operating conditions of most hydraulic systems utilizing petroleum-based fluids. Strict adherence to SAE 100R4 ensures that the hose meets recognized industry benchmarks for quality, performance, and safety in its designated applications, providing assurance of its reliability and durability in appropriate contexts.

A detailed examination of the key specifications further illuminates the precise capabilities of this 1-1/4 Inch I.D. Suction Hose. The Inner Diameter (I.D.) of 1.25 inches is a critical parameter, directly influencing the volumetric flow rate and the fluid velocity within the system. For a given flow demand, a larger I.D. hose will result in lower fluid velocity and, consequently, reduced pressure drop and frictional losses. In suction applications, minimizing pressure drop is exceptionally important to prevent cavitation at the pump inlet, which occurs when the absolute pressure of the fluid falls below its vapor pressure, causing vapor bubbles to form and collapse, leading to pump erosion and noise. The 1.25-inch I.D. is dimensioned to facilitate efficient and unrestricted fluid intake for pumps requiring a substantial supply, thereby optimizing pump efficiency and extending its operational lifespan. Conversely, in return line applications, a sufficiently sized I.D. prevents back pressure from building up, which could affect system performance or lead to overheating. Accurate sizing of the suction line is thus paramount for overall hydraulic system health and efficiency.

The specified Length of 12 feet (equivalent to 144 inches) offers considerable versatility in system design and installation. This length allows for flexible routing between components, accommodating various layouts in industrial machinery, agricultural equipment, or mobile hydraulic systems. While excessive hose length can introduce frictional losses in any fluid system, the impact is generally less pronounced in suction lines compared to pressure lines, primarily due to the lower velocities and non-pressurized nature of the flow. However, maintaining the shortest practical length that still allows for proper routing and accommodates component movement (if applicable) is always a best practice to optimize flow dynamics and minimize potential pressure losses or the risk of kinking. The fixed 12-foot length provides a ready-to-install solution for many common applications, reducing the need for on-site cutting and assembly for standard installations.

The Working Pressure (PSI) rating of 200 PSI for this suction hose requires careful interpretation. It is crucial to reiterate that this hose is unequivocally "not for use in pressure applications" where sustained, high-magnitude positive pressure is the primary operating condition. Instead, the 200 PSI working pressure rating in an SAE 100R4 hose refers to its capacity to safely handle return line pressures or incidental pressure surges that may occur in systems primarily designed for suction or unpressurized return flow. In a return line, for instance, localized restrictions or the presence of filters can create back pressure, which, though not typically as high as pump discharge pressure, still requires the hose to possess a certain degree of positive pressure resistance. This rating provides a safety margin for such scenarios, ensuring the hose does not rupture under these secondary or transient pressure conditions. It indicates the maximum continuous pressure the hose can withstand without experiencing degradation or failure, ensuring structural integrity even when some positive pressure is present in the "low-pressure" side of a hydraulic circuit.

Complementing the working pressure is the Burst Pressure of 800 PSI. The burst pressure is the theoretical maximum pressure the hose can withstand before catastrophic failure. Industry standards typically mandate a safety factor, often 4:1, between the working pressure and the burst pressure. In this case, 800 PSI (burst) / 200 PSI (working) yields a safety factor of 4, perfectly aligning with common engineering practices for hydraulic hoses. This safety factor is critical; it accounts for potential manufacturing variations, environmental stressors, cyclic fatigue, and minor damage, ensuring that the hose can operate reliably for its intended lifespan at its rated working pressure without approaching its ultimate failure point. While the hose should never be intentionally operated near its burst pressure, this specification provides a vital testament to its robust construction and inherent safety margins, offering peace of mind regarding its structural resilience under unforeseen circumstances below the burst threshold.

The combination of these specifications – a 1.25-inch I.D., 12-foot length, 200 PSI working pressure, and 800 PSI burst pressure – makes this hose exceptionally well-suited for a range of critical applications. Its primary utility lies in hydraulic pump suction lines, where it efficiently draws hydraulic fluid from the reservoir to the pump inlet, preventing cavitation and ensuring a steady, unimpeded supply. In this role, its inherent collapse resistance is paramount. Furthermore, it excels as a return line hose, conveying hydraulic fluid from the various actuators, valves, and components back to the reservoir at low or atmospheric pressure. This application benefits from the hose's flexibility, durability, and ability to handle the nominal back pressures typically encountered in return circuits. Beyond hydraulics, this hose is also highly effective in low-pressure lubrication systems, industrial coolant lines for heavy machinery, and general fluid transfer applications where non-pressurized or low-pressure media movement is required. Its construction ensures longevity in demanding environments, resisting the common forms of wear and degradation experienced in industrial and mobile equipment contexts.

The operational performance of this suction hose is further enhanced by its robust environmental resistance and temperature capabilities. The high-quality synthetic rubber compounds used for both the inner tube and outer cover are engineered to withstand a wide range of operating temperatures, typically from -40°F to +212°F (-40°C to +100°C). This broad temperature compatibility ensures consistent performance across diverse climatic conditions and allows for the handling of fluids that may experience temperature fluctuations during operation. The outer cover's resistance to ozone, UV radiation, and general weathering elements is crucial for applications in outdoor settings or exposed environments, preventing material degradation such as cracking or hardening over time. Moreover, its resistance to petroleum-based hydraulic fluids, lubricants, and certain industrial solvents ensures chemical compatibility, preventing premature swelling, softening, or hardening of the hose material due to contact with the conveyed media or external spills.

Proper installation and diligent maintenance are pivotal to maximizing the service life and ensuring the reliable performance of the 1-1/4 Inch I.D. Suction Hose. During installation, it is imperative to adhere to the minimum bend radius specifications for SAE 100R4 hoses to prevent kinking, which can restrict flow and compromise the hose's structural integrity. Avoiding twisting the hose during routing and assembly is also crucial, as torsion can induce stress concentrations and lead to premature failure. Hoses should be routed away from sharp edges, abrasive surfaces, and heat sources to prevent external damage. The use of appropriate fittings, correctly crimped or assembled, is equally important to ensure leak-free connections and secure attachment to system components. Regular inspection of the hose is recommended as part of a preventative maintenance program. Technicians should look for signs of wear such as cuts, abrasions, swelling, kinking, hardened sections, or any evidence of fluid leakage. Any hose exhibiting such damage should be promptly replaced to prevent system malfunction or potential safety hazards. Proper storage, away from direct sunlight, extreme temperatures, and corrosive chemicals, will also help to preserve the hose material before installation.

In conclusion, the 1-1/4 Inch I.D. Suction Hose, 12 feet long, from Buyers Products, represents a meticulously engineered solution for critical fluid transfer tasks within hydraulic and industrial systems. Its construction, featuring a robust synthetic rubber inner tube, textile reinforcement, and, most importantly, an internal wire wrap, provides unparalleled resistance to collapse under vacuum conditions—a fundamental requirement for efficient suction line operation. Adherence to the stringent SAE 100R4 standard ensures its reliability and performance within its designated envelope of suction and low-pressure return applications. The carefully chosen inner diameter facilitates optimal flow rates, while the length offers practical versatility. With a judiciously rated working pressure of 200 PSI and an ample burst pressure of 800 PSI, this hose offers a high degree of safety and durability for applications where positive pressures are incidental, not primary. Its environmental resilience and compatibility with common hydraulic fluids further underscore its suitability for demanding operational contexts. For engineers, technicians, and system integrators seeking a dependable, high-performance hose for non-pressurized fluid conveyance, this product stands as an exemplary choice, ensuring robust performance and longevity for the integrity of their machinery and systems.
