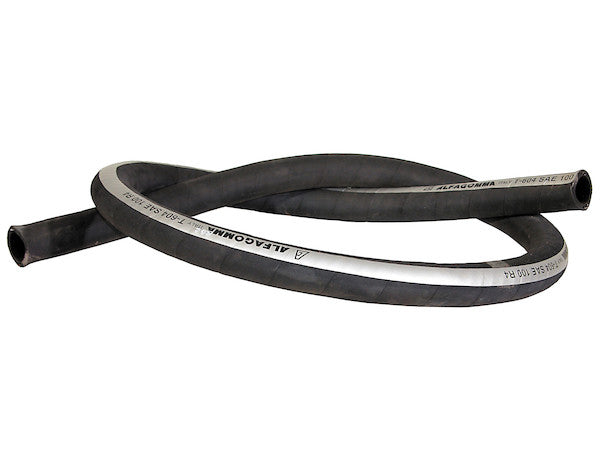

WLH12572 - 1-1/4 Inch I.D. Suction Hose 6 Foot long

The Suction Hose from Buyers Products is built strong and internally reinforced for long-lasting performance. The SAE 100R4 hose has an internal wire wrap that prevents it from collapsing. It's available for either suction or return line functions, in a range of lengths. It should not be used in pressure applications.

Specifications

Advanced Technical Overview: 1-1/4 Inch I.D. SAE 100R4 Suction/Return Hydraulic Hose, 6 Foot Length

This technical description provides an in-depth analysis of the 1-1/4 inch I.D. (Inner Diameter) Suction Hose, precisely 6 feet (72 inches) in length, manufactured by Buyers Products. Engineered for robust performance in demanding hydraulic systems, this hose conforms to the Society of Automotive Engineers (SAE) 100R4 standard, specifically designed for suction and return line applications. Its specialized construction, featuring an internal wire wrap reinforcement, renders it exceptionally resistant to collapse under vacuum conditions, a critical characteristic for the integrity and efficiency of hydraulic fluid transfer.

Adherence to SAE 100R4 Standard for Suction and Return Lines

The SAE 100R4 specification is a globally recognized standard dictating the design, material, and performance requirements for spiral wire reinforced hydraulic suction and return lines. Unlike pressure hoses (e.g., SAE 100R1 through 100R17), which are primarily constructed to withstand internal positive pressure, SAE 100R4 hoses are engineered with a distinct emphasis on resisting negative pressure (vacuum) and mitigating collapse. This specific hose’s compliance with SAE 100R4 ensures it meets stringent industry benchmarks for dimensional stability, fluid compatibility, temperature resistance, and durability under the unique stresses of suction applications.

Key aspects of the SAE 100R4 standard that this product adheres to include:

• Vacuum Resistance: The primary requirement for an R4 hose is its ability to maintain its circular cross-section under significant vacuum pressures, typically encountered when a hydraulic pump draws fluid from a reservoir. This prevents cavitation within the pump, a phenomenon that can lead to severe damage and reduced system efficiency.
• Low Pressure Capability: While designed for vacuum, SAE 100R4 hoses are also rated for moderate positive working pressures, typically up to 300 PSI, as fluid return lines or low-pressure suction lines might experience transient positive pressures. The specified 200 PSI working pressure for this hose falls well within this acceptable range, providing ample safety margins for its intended applications.
• Construction Methodology: The standard prescribes a specific multi-layer construction, including an inner tube, a reinforcement layer (or layers), and an outer cover, each with defined material and performance properties.
• Fluid Compatibility: SAE 100R4 hoses are required to be compatible with a broad range of hydraulic fluids, including petroleum-based fluids, water-glycol, and certain synthetic fluids, ensuring versatility across diverse hydraulic systems.
• Temperature Range: The standard mandates performance across a typical operational temperature range, ensuring the hose retains its physical properties and sealing capabilities under varying thermal conditions, usually from -40°F to +212°F (-40°C to +100°C).

Detailed Construction Analysis: Rubber/Reinforced Design

The robust construction of this Buyers Products suction hose is fundamental to its exceptional performance and longevity. It comprises three primary layers, each contributing to its overall integrity and functional capabilities:

1. Inner Tube

The innermost layer, or tube, is fabricated from a high-quality, oil-resistant synthetic rubber compound. This material is meticulously selected for its excellent compatibility with a wide array of hydraulic fluids, preventing chemical degradation, swelling, or hardening that could compromise fluid flow or system cleanliness. The smooth internal bore minimizes flow turbulence and pressure drop, facilitating efficient fluid transfer from the reservoir to the pump or back into the tank. Its resilience to abrasive particles often suspended in hydraulic fluid further enhances its service life.

2. Reinforcement Layer: Internal Wire Wrap and Textile Plies

The distinguishing feature and core strength of this SAE 100R4 hose lies in its sophisticated reinforcement structure. Unlike high-pressure hoses that utilize multiple layers of braided or spiraled high-tensile wire for burst strength, this suction hose employs a strategic combination of an internal wire helix and textile plies:

• Internal Wire Helix (Wire Wrap): A precisely wound high-strength steel wire helix is embedded within the hose wall. This continuous spiral wire is the primary mechanism preventing the hose from collapsing under the negative pressure generated by a hydraulic pump. When a pump draws fluid, it creates a vacuum (negative pressure) in the suction line. Without adequate reinforcement, a standard hose would flatten or constrict, restricting flow, causing cavitation, and potentially damaging the pump. The rigid wire helix acts as a structural skeleton, maintaining the hose’s full circular cross-section even under significant vacuum, ensuring an unobstructed flow path.
• Textile Plies: In addition to the wire helix, the hose incorporates multiple layers of high-strength textile braids or spirals. These textile plies contribute to the hose's overall dimensional stability, providing moderate resistance to positive pressures and enhancing its flexibility. They work synergistically with the wire helix to distribute stresses, improve adhesion between layers, and offer additional resistance to kinking and external forces. The textile reinforcement also helps to encapsulate the wire helix, protecting it from corrosion and ensuring its long-term structural integrity.

The synergistic design of the internal wire wrap and textile reinforcement ensures that the hose delivers reliable performance across its specified working pressure and vacuum rating, making it perfectly suited for its intended application.

3. Outer Cover

The outermost layer consists of a durable, abrasion-resistant, and weather-resistant synthetic rubber compound. This protective cover acts as a shield against external environmental factors and mechanical damage. It is formulated to resist:

• Abrasion: Protecting the internal reinforcement from wear due to rubbing against other components, chassis, or external objects.
• Ozone and UV Radiation: Preventing degradation from prolonged exposure to sunlight and atmospheric ozone, which can lead to cracking and premature material failure.
• Weathering: Maintaining material integrity and flexibility across a wide range of temperatures and humidity conditions.
• Oil and Chemicals: Offering incidental protection against splashes of hydraulic fluid, fuels, and other common industrial chemicals.

The robust outer cover ensures that the hose maintains its aesthetic and functional integrity even in harsh operating environments typical of mobile and industrial hydraulic applications.

Performance Characteristics and Operational Parameters

Understanding the specific performance parameters of this hose is crucial for optimal system design and operation:

Inner Diameter (I.D.): 1.25 Inches (31.75 mm)

The 1-1/4 inch inner diameter is a critical parameter influencing fluid flow dynamics within the hydraulic system. For suction lines, an adequately sized I.D. is paramount to minimize fluid velocity and, consequently, reduce pressure drop and the risk of cavitation at the pump inlet. A larger I.D. allows for lower fluid velocities for a given flow rate, ensuring a smooth, unimpeded supply of fluid to the pump. This specific I.D. is well-suited for systems requiring moderate to high flow rates where maintaining a positive suction head or minimizing negative pressure is essential for pump longevity and efficiency.

Length: 6 Feet (72 Inches)

A standardized length of 6 feet (72 inches) offers a practical solution for many hydraulic system layouts, particularly those where the reservoir and pump are in relatively close proximity. While custom lengths can be fabricated, a pre-cut length provides convenience and ensures consistent performance. Shorter suction lines generally lead to lower friction losses and reduced pressure drop, further contributing to pump protection and system efficiency. Proper hose routing and length selection are critical to avoid sharp bends, kinks, or excessive tension, all of which can compromise hose integrity and fluid flow.

Working Pressure: 200 PSI

The specified working pressure of 200 PSI indicates the maximum continuous internal positive pressure the hose is designed to safely withstand during normal operation. For a suction or return line, while the primary concern is vacuum, transient positive pressures can occur (e.g., during system startup, return flow surges, or when the pump is turned off). This rating provides a sufficient margin of safety for such events, distinguishing it from zero-pressure drain lines. It is crucial to reiterate that this hose is unequivocally NOT designed for applications involving high-pressure discharge from pumps or actuators, which typically require hoses with working pressures in the thousands of PSI range.

Burst Pressure: 800 PSI

The burst pressure of 800 PSI represents the theoretical internal pressure at which the hose is expected to fail or rupture. This value is fundamentally important for calculating the safety factor, which is the ratio of burst pressure to working pressure. In this case, the safety factor is 800 PSI / 200 PSI = 4:1. An industry-standard safety factor for hydraulic hoses is typically 4:1. This indicates that the hose is engineered with a significant reserve of strength beyond its normal operating conditions, providing a critical safety margin against unexpected pressure spikes, material fatigue, or minor manufacturing variations. This robust safety factor underscores the reliability and engineering integrity of the product.

Temperature Range

While not explicitly listed in the compact specifications table, a typical SAE 100R4 hose is designed to operate effectively within a temperature range of approximately -40°F to +212°F (-40°C to +100°C). This broad range accommodates the thermal fluctuations inherent in most industrial and mobile hydraulic applications, ensuring the hose remains flexible, does not harden or crack in cold conditions, and maintains its structural integrity and fluid compatibility at elevated operating temperatures. Exceeding these limits can lead to material degradation, reduced hose life, and potential system failure.

Applications and System Integration

The 1-1/4 inch I.D. Suction Hose is an indispensable component in a wide array of hydraulic systems across various industries:

• Mobile Equipment: Commonly found in construction machinery (excavators, loaders), agricultural equipment (tractors, harvesters), utility vehicles, and municipal service vehicles, primarily connecting hydraulic reservoirs to pump inlets or acting as return lines from control valves and actuators back to the tank.
• Industrial Machinery: Utilized in stationary hydraulic power units, machine tools, presses, material handling systems, and lubrication systems where reliable fluid transfer under suction or low pressure is required.
• Off-Highway Vehicles: Essential for heavy-duty applications where fluid circulation demands a robust hose capable of withstanding external abuse and internal vacuum pressures.
• Marine Applications: Employed in various marine hydraulic systems for steering, winch operation, and other auxiliary functions where a reliable suction or return line is paramount.

Proper integration involves selecting appropriate fittings (though specified as '-' for this product, implying bulk hose, or specific applications may have pre-attached fittings), ensuring correct routing to prevent kinks, chafing, or excessive bend radius violations, and maintaining an adequate fluid level in the reservoir to prevent air ingress and maintain positive suction head.

Critical Considerations for Installation and Maintenance

To maximize the operational life and ensure the safe performance of this suction hose, adherence to best practices for installation and maintenance is paramount:

• Correct Routing: Always route the hose to minimize bends, especially sharp ones, which can induce stress on the hose wall and restrict flow. The minimum bend radius specified by the manufacturer (or derived from SAE 100R4 standards) must be respected. Avoid routing hoses over sharp edges or in areas prone to crushing or abrasion.
• Strain Relief: Ensure that the hose is installed without excessive tension or torsion. Use clamps or brackets to support the hose and prevent undue strain on fittings, particularly in dynamic applications.
• Environmental Protection: While the outer cover is robust, prolonged exposure to extreme heat sources, corrosive chemicals, or constant physical impact should be avoided where possible. Consider protective sleeves or guards in highly abusive environments.
• Regular Inspection: Periodically inspect the hose for signs of wear, such as abrasion marks, cuts, cracks, bulges, hardening, or softening of the cover. Pay close attention to the area near fittings for signs of leakage or material degradation. Any visible damage warrants immediate replacement.
• Fluid Cleanliness: Maintain the cleanliness of the hydraulic fluid as per system specifications. Contaminants can abrade the inner tube and accelerate wear, though this is less critical for suction lines than pressure lines where high-velocity particles can cause significant damage.
• Fitting Compatibility: If this product is supplied as bulk hose, ensure that only compatible fittings designed for SAE 100R4 hoses and the specific hose construction (e.g., proper crimp specifications) are used. Incorrect fittings or improper crimping can lead to leaks or catastrophic hose separation.

Conclusion: A Reliable Component for Essential Hydraulic Functions

The 1-1/4 Inch I.D. 6 Foot Suction Hose from Buyers Products represents a meticulously engineered solution for critical suction and return line applications in hydraulic systems. Its adherence to the rigorous SAE 100R4 standard, combined with a specialized construction featuring an integral wire helix and robust synthetic rubber compounds, ensures superior resistance to collapse under vacuum, reliable fluid compatibility, and exceptional durability in challenging environments. With a working pressure of 200 PSI and a substantial burst pressure of 800 PSI, this hose offers a high degree of safety and operational consistency. By preventing cavitation and maintaining unobstructed fluid flow, it plays a vital role in safeguarding hydraulic pumps, optimizing system efficiency, and extending the overall service life of hydraulic machinery. This product stands as a testament to precision engineering, offering a dependable and high-performance component for professionals seeking uncompromising quality in their hydraulic infrastructure.
